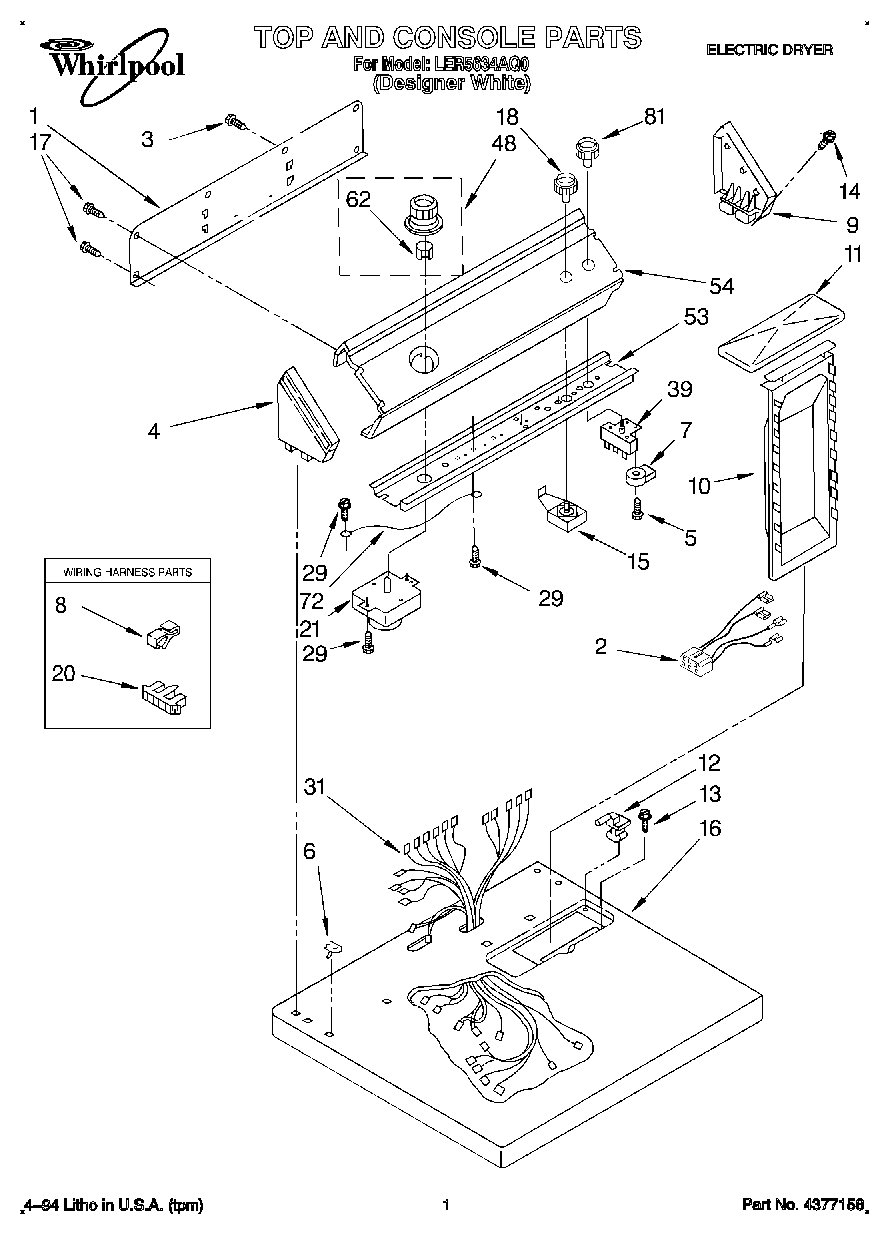

LER5634AQ0 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Leveler (Thinner)
	Dryer
	Guide, Use & Care
	Label, Wiring Diagram
	799344 Whirlpool Refrigerator Paint
	Almond (Uncut)
	72017 Whirlpool Appliance Touch-Up Paint White
	WP72107 Whirlpool Touchup
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	Instructions, Installation
1	Panel, Rear Console
2	8283286 Whirlpool Wire Harness
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.) (White)
5	WP488729 Whirlpool Refrigerator Door Screw
6	WP357213 Whirlpool Hinge Stopper
7	279872 Whirlpool Resistor
8	Clip, Retainer
9	Cap, End (R.H.) (White)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	Switch, Temperature
16	Top (White)
17	WP489069 Whirlpool Compactor Screw
18	WP3957796 Whirlpool Knob
20	Connector, Timer
21	WP3976568 Whirlpool Timer
29	WPW10139210 Whirlpool Screw
31	Harness, Wiring
39	Switch, Push-To-Start
39	(Alt.)
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (White)
62	WP688805 Whirlpool Spring Clip
72	Wire, Ground
81	WP3957800 Whirlpool Knob
