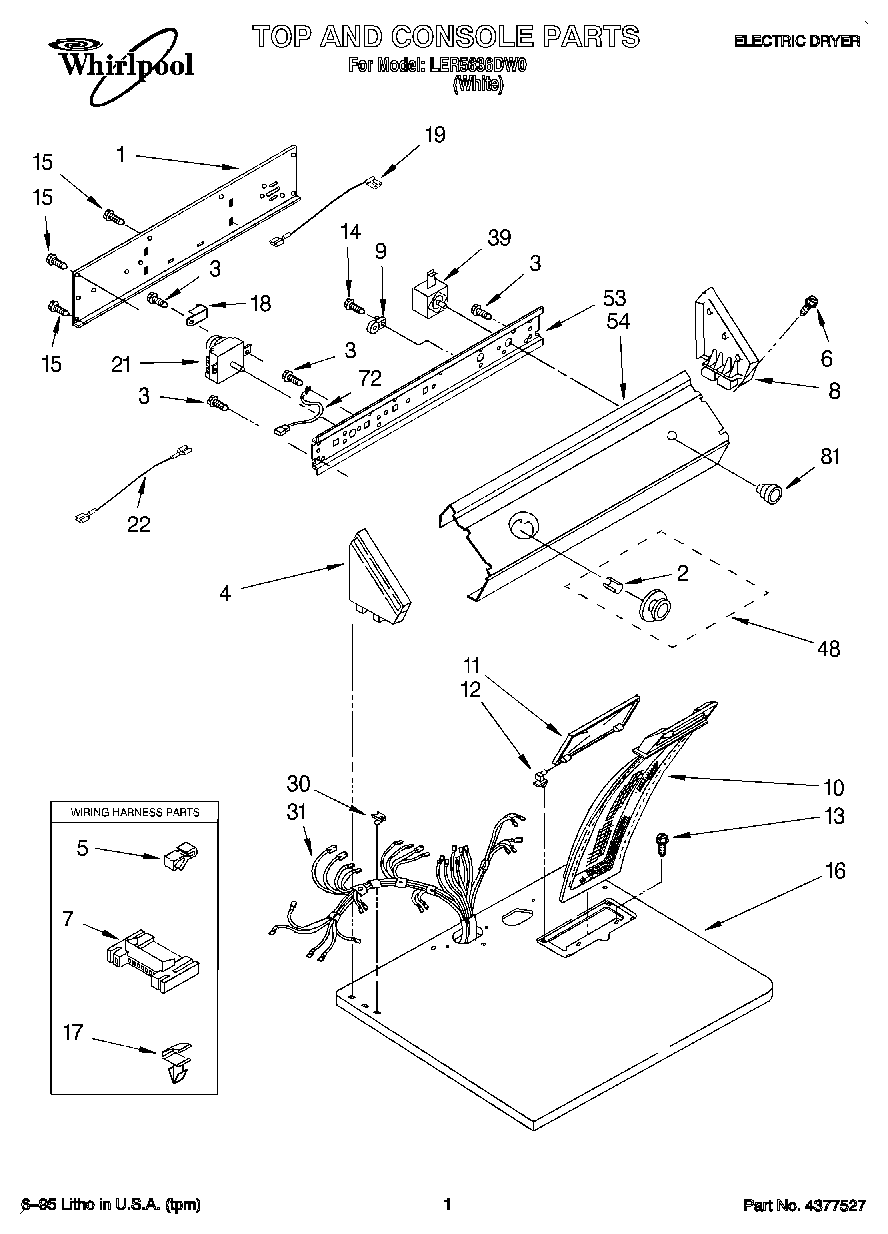

LER5636DW0 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Label, Wiring Diagram
	Dryer
	Guide, Use & Care
	799344 Whirlpool Refrigerator Paint
	350938 Whirlpool Spray Gun
	Instructions, Installation
	72017 Whirlpool Appliance Touch-Up Paint White
1	Panel, Rear Console
2	WP688805 Whirlpool Spring Clip
3	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.) (White)
5	Clip, Retainer
6	WP388326 Whirlpool Screw
7	3395683 Whirlpool Connector
8	Cap, End (R.H.) (White)
9	279872 Whirlpool Resistor
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP488729 Whirlpool Refrigerator Door Screw
15	WP693995 Whirlpool Screw
16	Top (White)
17	WP3394427 Whirlpool Clip
18	WP694419 Whirlpool Buzzer Adjuster
19	Wire, Jumper (Blue)
19	Wire, Jumper (Black)
21	WP3976569 Whirlpool Timer
22	Wire, Jumper (Lt. Blue/Black)
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	WP3404233 Whirlpool Dryer Starter Switch
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control
72	Wire, Ground
81	Knob, Push To Start
