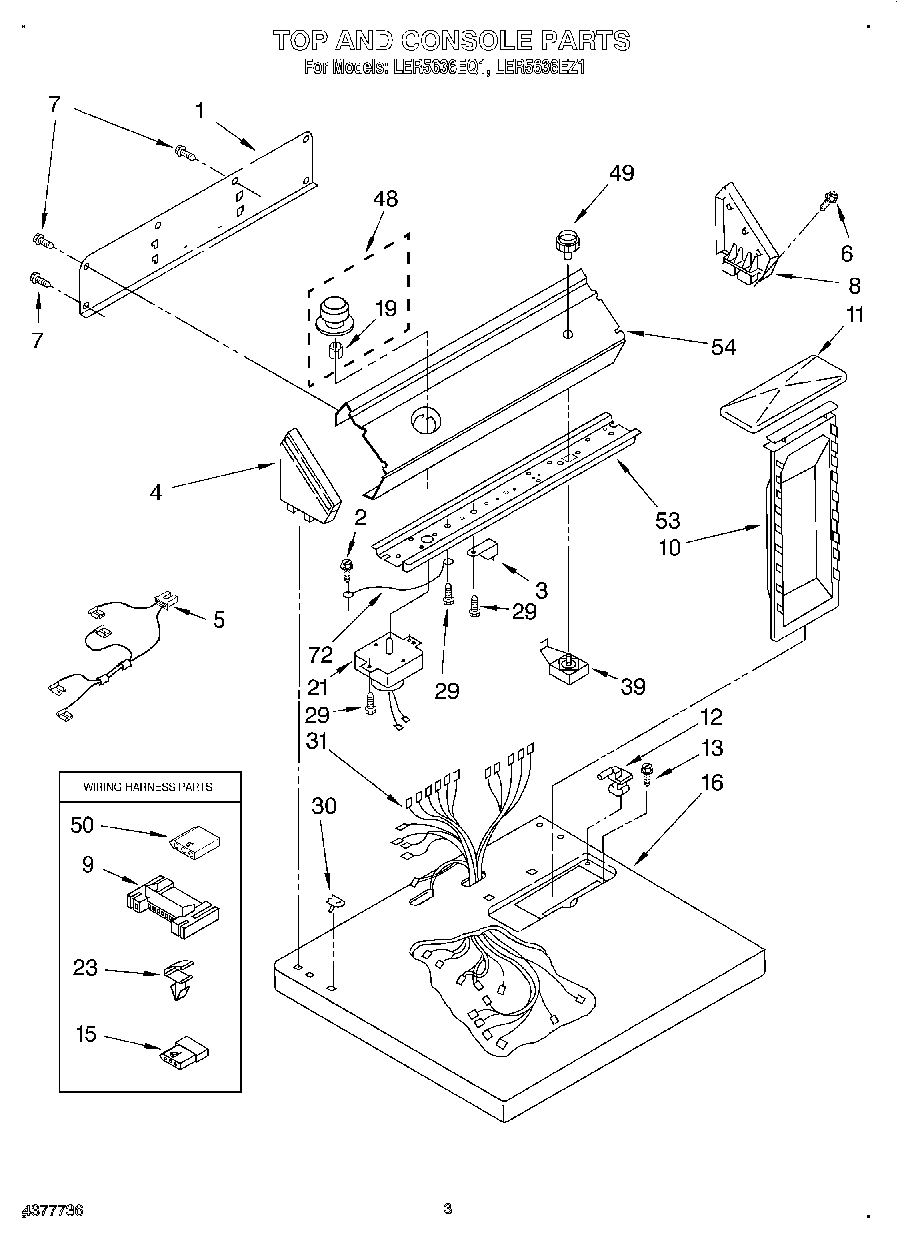

LER5636EZ1 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Label, Wiring Diagram
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	WPL LIT3397618
	WPL LIT3406071
1	Panel, Rear Console
2	SCREW
3	WP694419 Whirlpool Buzzer Adjuster
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.)
5	Wire, Jumper
6	WP388326 Whirlpool Screw
7	WP693995 Whirlpool Screw
8	Cap, End (R.H.) (Almond)
8	Cap, End (R.H.)
9	3395683 Whirlpool Connector
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
15	353424 Whirlpool Connector
16	Top (White)
16	Top (Almond)
19	WP688805 Whirlpool Spring Clip
21	Timer, 60 Hz.
23	WP3394427 Whirlpool Clip
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	Switch, Push-To-Start
48	WP3957752 Whirlpool Knob
48	3957753 Whirlpool Knob
49	3957797 Whirlpool Knob
49	WP3957796 Whirlpool Knob
50	Connector (Door Switch)
53	Bracket, Control
54	Panel, Control (LGR5636EQ0)
54	Panel, Control (LGR5636EZ0)
72	Wire, Ground
