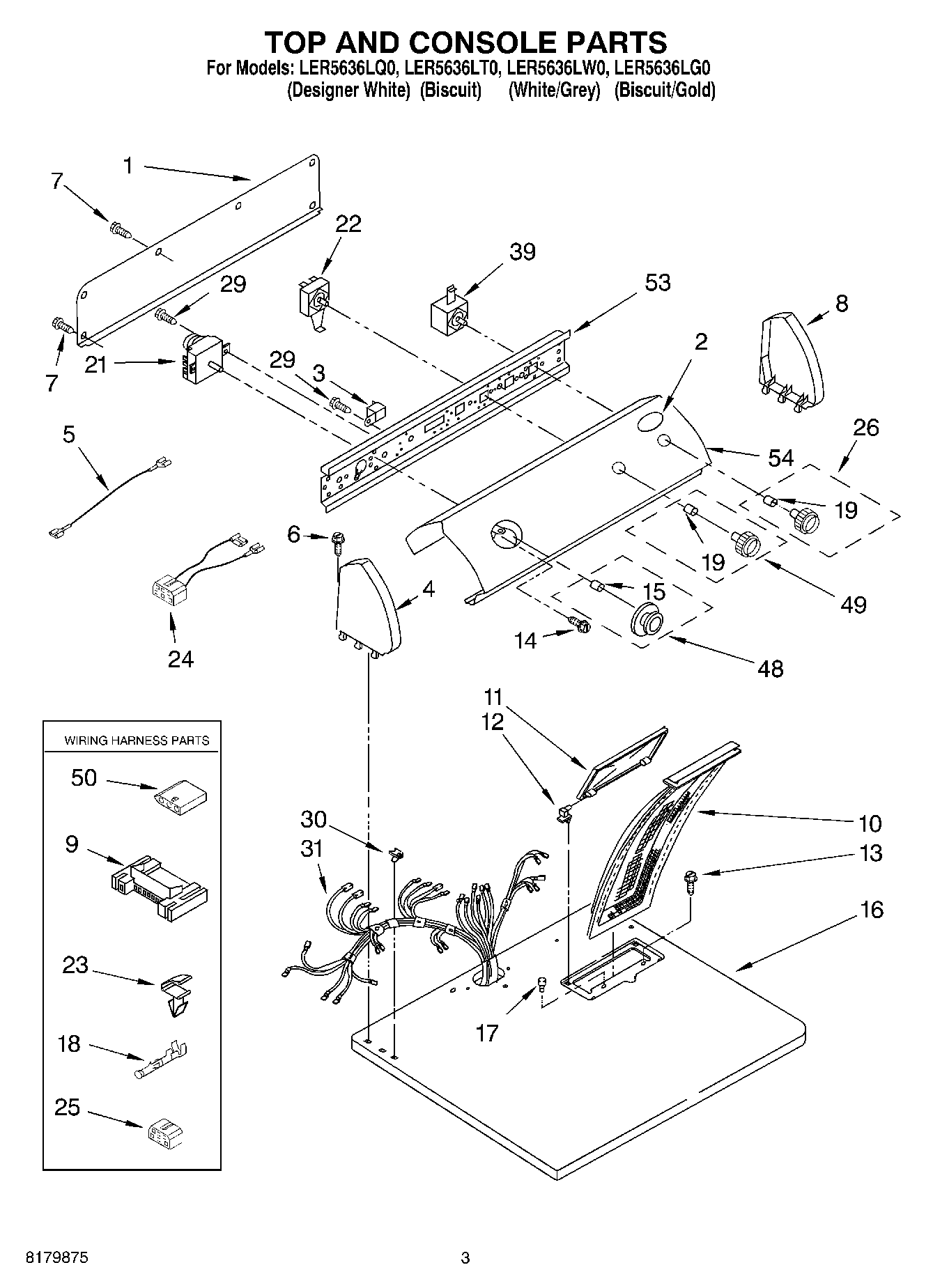

LER5636LT0 02 – SECTION

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Medallion
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (BIscuit)
5Wire, Jumper (Black)
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8W10820038 Whirlpool Endcap
8WPL 8271362
93395683 Whirlpool Connector
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
15WP688805 Whirlpool Spring Clip
16Top (Biscuit)
16Top
17Bumper, Lint Lid
18WP94614 Whirlpool Terminal
19WP8536939 Whirlpool Spring Clip
21WP8299778 Whirlpool Timer
223405152 Whirlpool Switch Assembly
23WP3394427 Whirlpool Clip
24Wire, Jumper (Guard On/Off)
25Block, Disconnect
26Knob, Push-To-Start (LGR5636LW0)
26WPL 8271349
26Knob, Push-To-Start (LGR5636LG0)
263957804 Whirlpool Knob
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39WP3977456 Whirlpool Start Switch
48WPL 8316549
48WP3957755 Whirlpool Knob
48WP3957754 Whirlpool Knob Assembly
48WP8557455 Whirlpool Knob Timer
49KNOB
49WP3957799 Whirlpool Knob
493957797 Whirlpool Knob
49WPL 8316545
503936144 Whirlpool Connector
53Bracket, Control
54350938 Whirlpool Spray Gun
543404351 Whirlpool Dryer Rack
5472017 Whirlpool Appliance Touch-Up Paint White
54W11224254 Whirlpool Test Kit
54799344 Whirlpool Refrigerator Paint
54350930 Whirlpool White Spray Paint
54WPL 8532638
54WPL 8532637
54WPL 8532636
544392065 Whirlpool Dryer Maintenance Kit
544392899 Whirlpool Biscuit Touch-Up Paint
544392901 Whirlpool Biscuit Spray Paint
54PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
54WPL 8532635
