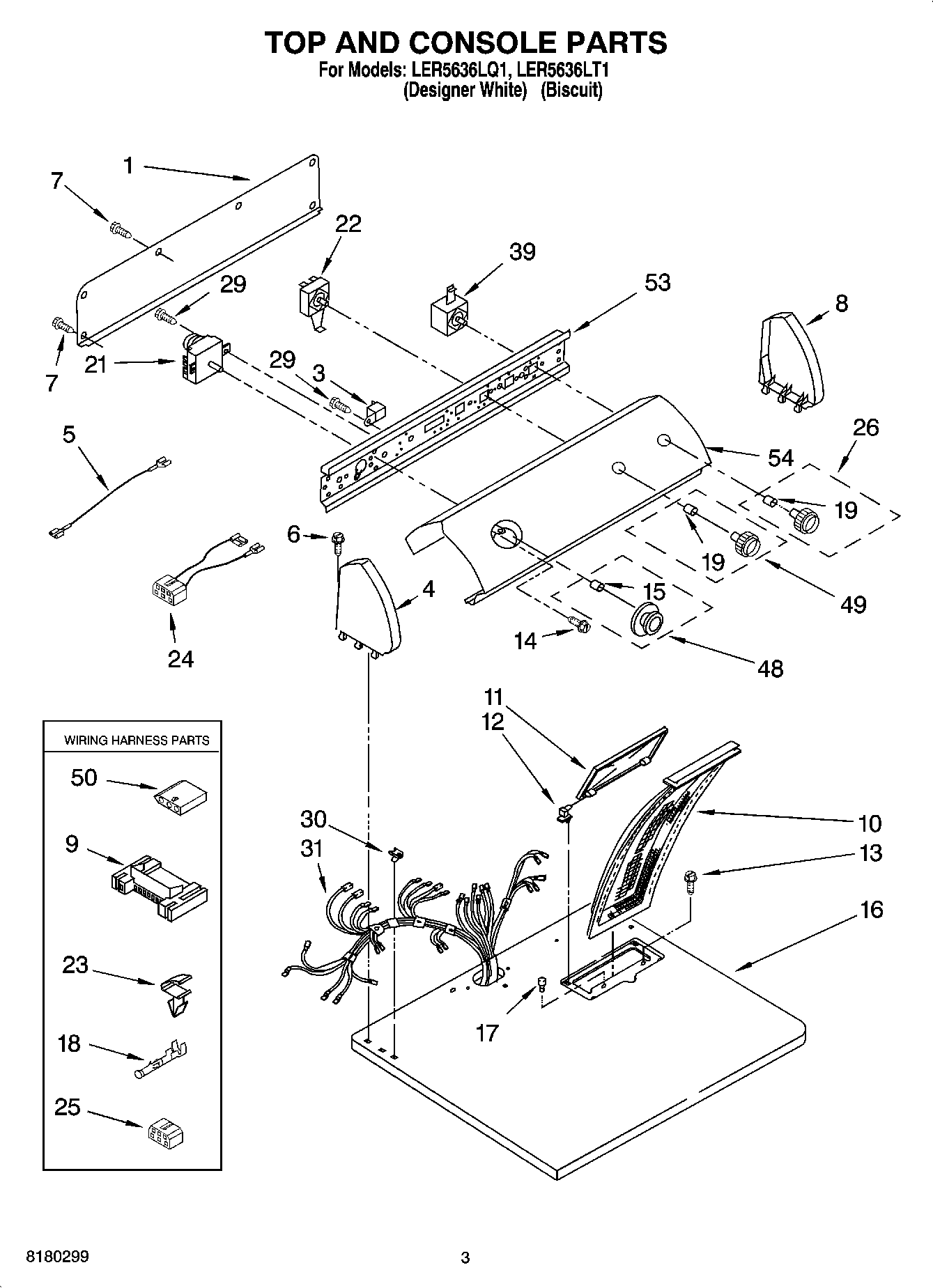

LER5636LT1 02 – TOP AND CONSOLE PARTS

LER5636LT1 02 – TOP AND CONSOLE PARTS

Written by

in

LER5636LT1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (BIscuit)
5Wire, Jumper (Black)
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8WPL 8271362
8W10820038 Whirlpool Endcap
93395683 Whirlpool Connector
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
11Cover, Lint Screen (Biscuit)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
15WP688805 Whirlpool Spring Clip
16Top (Biscuit)
16Top
17Bumper, Lint Lid
18WP94614 Whirlpool Terminal
19WP8536939 Whirlpool Spring Clip
21WP8299778 Whirlpool Timer
223405152 Whirlpool Switch Assembly
23WP3394427 Whirlpool Clip
24Wire, Jumper (Guard On/Off)
25Block, Disconnect
263957804 Whirlpool Knob
26WPL 8271349
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39WP3977456 Whirlpool Start Switch
48WP3957754 Whirlpool Knob Assembly
48WP3957755 Whirlpool Knob
493957797 Whirlpool Knob
49WP3957799 Whirlpool Knob
503936144 Whirlpool Connector
53Bracket, Control
54350938 Whirlpool Spray Gun
543404351 Whirlpool Dryer Rack
54WPL 8532636
54WPL 8532635
5472017 Whirlpool Appliance Touch-Up Paint White
544392901 Whirlpool Biscuit Spray Paint
54799344 Whirlpool Refrigerator Paint
54PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
54W11224254 Whirlpool Test Kit
544392065 Whirlpool Dryer Maintenance Kit
54350930 Whirlpool White Spray Paint
544392899 Whirlpool Biscuit Touch-Up Paint
54WPL ARI117629A
