LER5638AW1 02 – SECTION

LER5638AW1 02 – SECTION

Written by

in

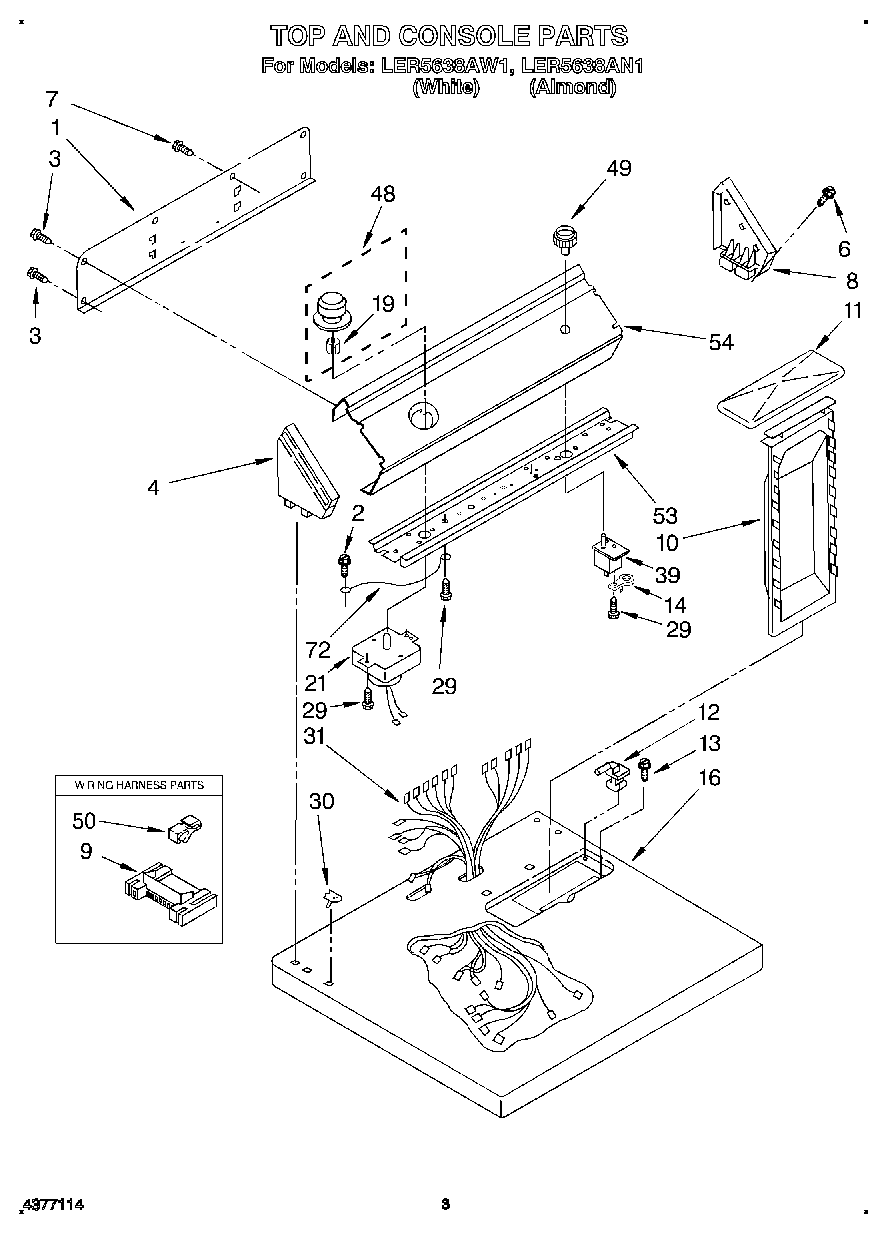

LER5638AW1 02 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
Dryer
Almond (Uncut)
Instructions, Installation
Leveler (Thinner)
WP72107 Whirlpool Touchup
Guide, Use & Care
799344 Whirlpool Refrigerator Paint
Label, Wiring Diagram
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
1Panel, Rear Console
2WP488729 Whirlpool Refrigerator Door Screw
3WP489069 Whirlpool Compactor Screw
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.) (White)
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8Cap, End (R.H.) (White)
8Cap, End (R.H.) (Almond)
93395683 Whirlpool Connector
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14279872 Whirlpool Resistor
16Top (White)
16Top (Almond)
19WP688805 Whirlpool Spring Clip
21WP3976569 Whirlpool Timer
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39Switch, Push-To-Start
48WP3957752 Whirlpool Knob
49Knob, Push To Start
50Clip, Retainer
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Almond)
72Wire, Ground
