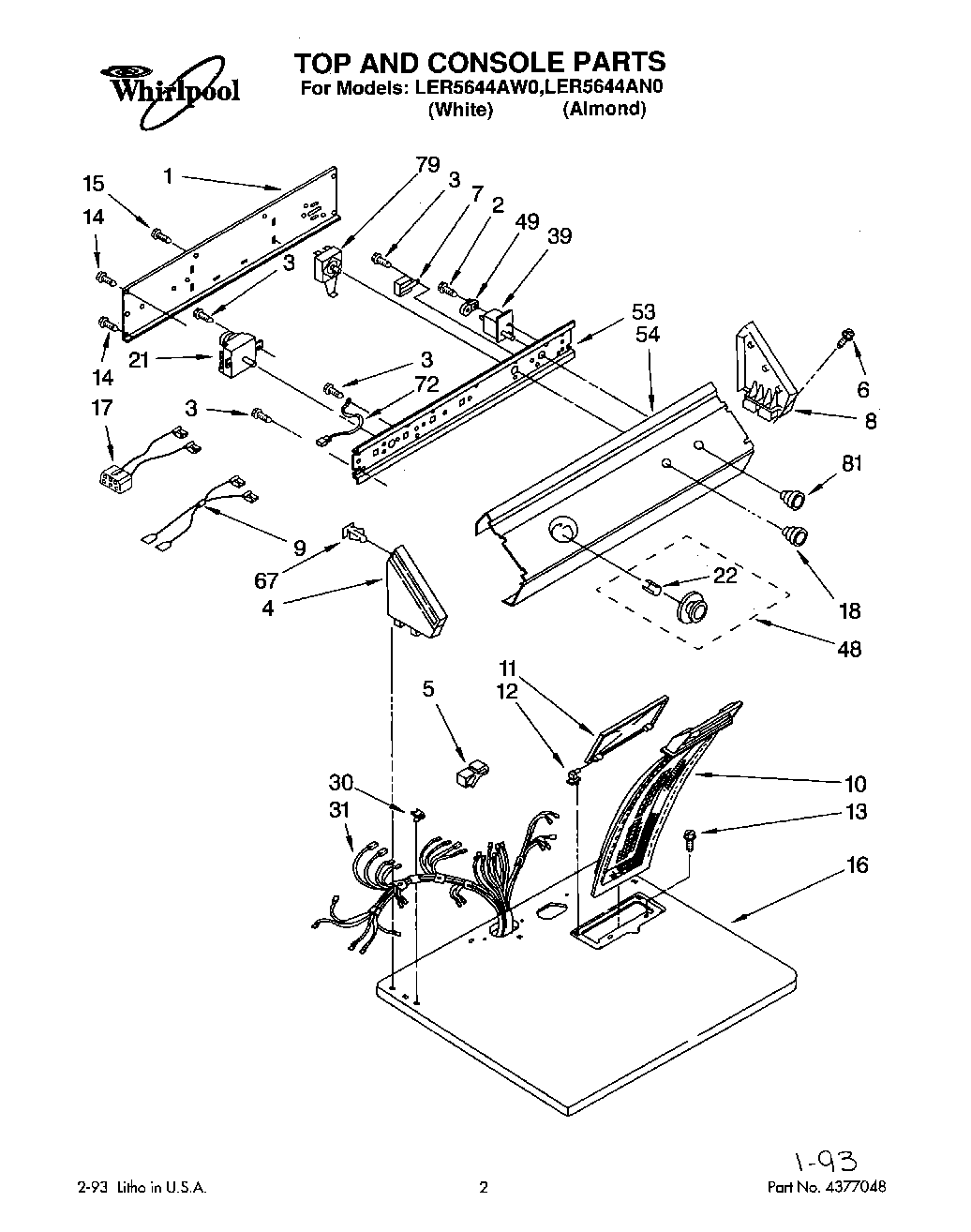

LER5644AN0 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Dryer
	Instructions, Installation
	Guide, Use & Care
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	List, Service Parts
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	WP488729 Whirlpool Refrigerator Door Screw
3	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (White)
5	Clip, Retainer
6	WP388326 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	Cap, End (R.H.) (Almond)
8	Cap, End (R.H.) (White)
9	Wire Jumper Assembly
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP489069 Whirlpool Compactor Screw
15	WP693995 Whirlpool Screw
16	Top (White)
16	Top (Almond)
17	8539893 Whirlpool Wire Harness
18	KNOB
21	WP3396047 Whirlpool Timer
22	WP688805 Whirlpool Spring Clip
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	Relay, Push-To-Start
48	WP3957752 Whirlpool Knob
49	279872 Whirlpool Resistor
53	Bracket, Control
54	Panel, Control (Almond)
54	Panel, Control (White)
67	WP689559 Whirlpool Nut
72	Wire, Ground
79	WP3399639 Whirlpool Switch
81	Knob, Push To Start
