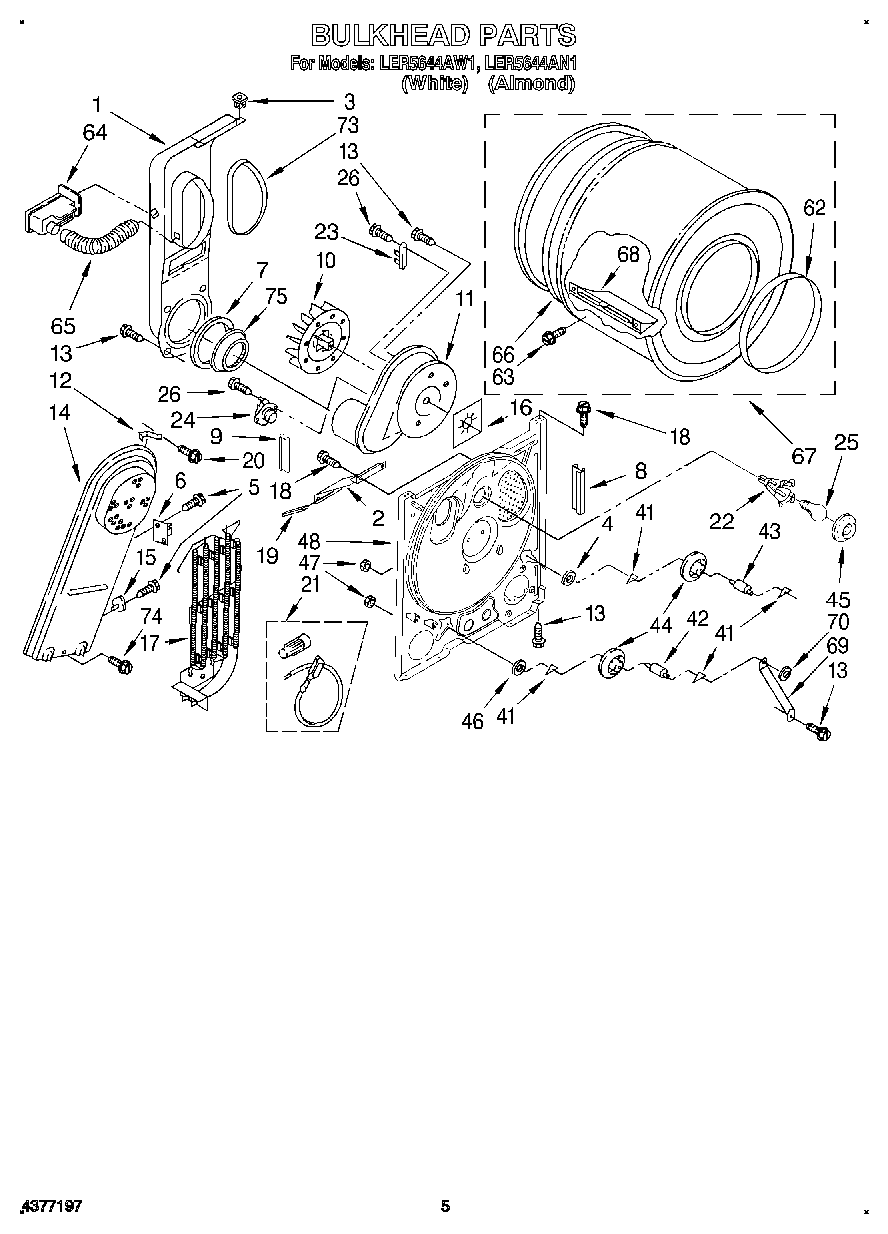

LER5644AN1 03 – SECTION

LER5644AN1 03 – SECTION

Written by

in

LER5644AN1 03 – SECTION

Products

PositionProduct
1Lint Chute
2Shield, Light
398460 Whirlpool Nut
4WP3388703 Whirlpool Washer
5WP90767 Whirlpool Screw
6279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
7W11415783 Whirlpool Seal
9686889 Whirlpool Pad
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
14Box, Heater
15WP3390291 Whirlpool High Limit Thermostat
16Seal, Blower
17WP4391960 Whirlpool Dryer Heating Element
18WP489069 Whirlpool Compactor Screw
19Guard, Edge
20WP489463 Whirlpool Refrigerator Screw
21279457 Whirlpool Dryer Heating Element Wide Spade Connection
22Socket Assembly
23WP3392519 Whirlpool Dryer Thermal Fuse
24WP3387134 Whirlpool Dryer Cycling Thermostat
25RANGE ONLY 40W 120V APPL BULB
26WP965173 Whirlpool Dishwasher Screw
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
45Lens, Drum Light
46WP348197 Whirlpool Washer Assembly
47WP3359452 Whirlpool Nut
48Bulkhead
62WP3394508 Whirlpool Bearing Ring
63WPW10109200 Whirlpool Screw
64Alert, Lint
65Hose, Differential
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
673396775 Whirlpool Drum Assembly
68WP342847 Whirlpool Drum Baffle
69Bracket, Support
70WP90296 Whirlpool Clip
73SEAL
75W11233063 Whirlpool Shield Assembly
