LER5644EQ0 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL LIT3397618
	Almond (Uncut)
	WPL LIT3405515
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	WPL LIT3401735
	350938 Whirlpool Spray Gun

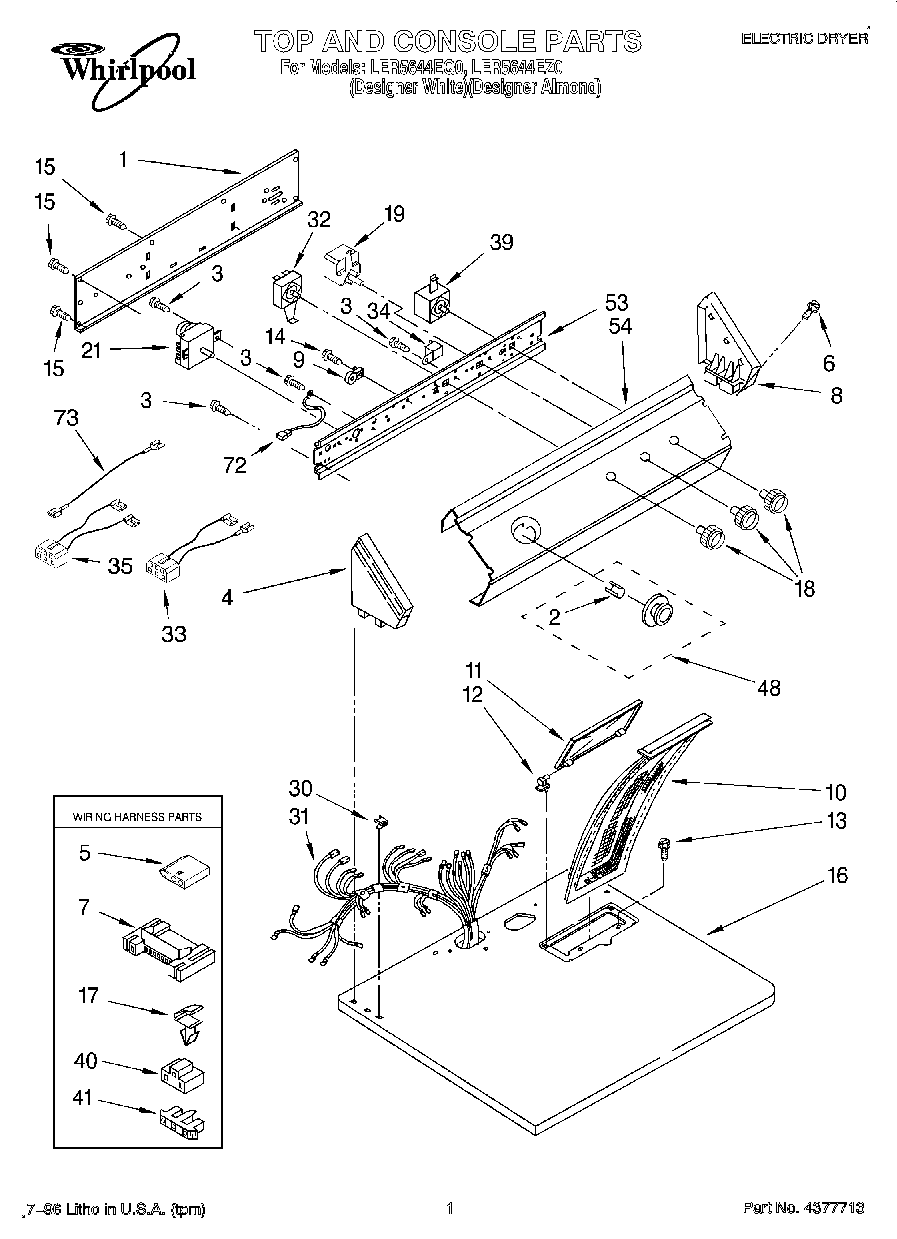

	Dryer
1	Panel, Rear Console
2	WP688805 Whirlpool Spring Clip
3	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.)
5	Connector (Door Switch)
6	WP388326 Whirlpool Screw
7	3395683 Whirlpool Connector
8	Cap, End (R.H.) (Almond)
8	Cap, End (R.H.)
9	279872 Whirlpool Resistor
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP488729 Whirlpool Refrigerator Door Screw
15	WP693995 Whirlpool Screw
16	Top (White)
16	Top (Almond)
17	WP3394427 Whirlpool Clip
18	3957797 Whirlpool Knob
18	WP3957796 Whirlpool Knob
19	WP3405156 Whirlpool Switch
21	WP3976580 Whirlpool Timer
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	WP3399639 Whirlpool Switch
33	3397695 Whirlpool Wire Harness
34	WP694419 Whirlpool Buzzer Adjuster
35	8539893 Whirlpool Wire Harness
39	WP3398095 Whirlpool Dryer Start Relay
40	3401144 Whirlpool Connector
41	Connector, Timer
48	WP3957752 Whirlpool Knob
48	3957753 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
72	Wire, Ground
73	Wire, Jumper (Black)
