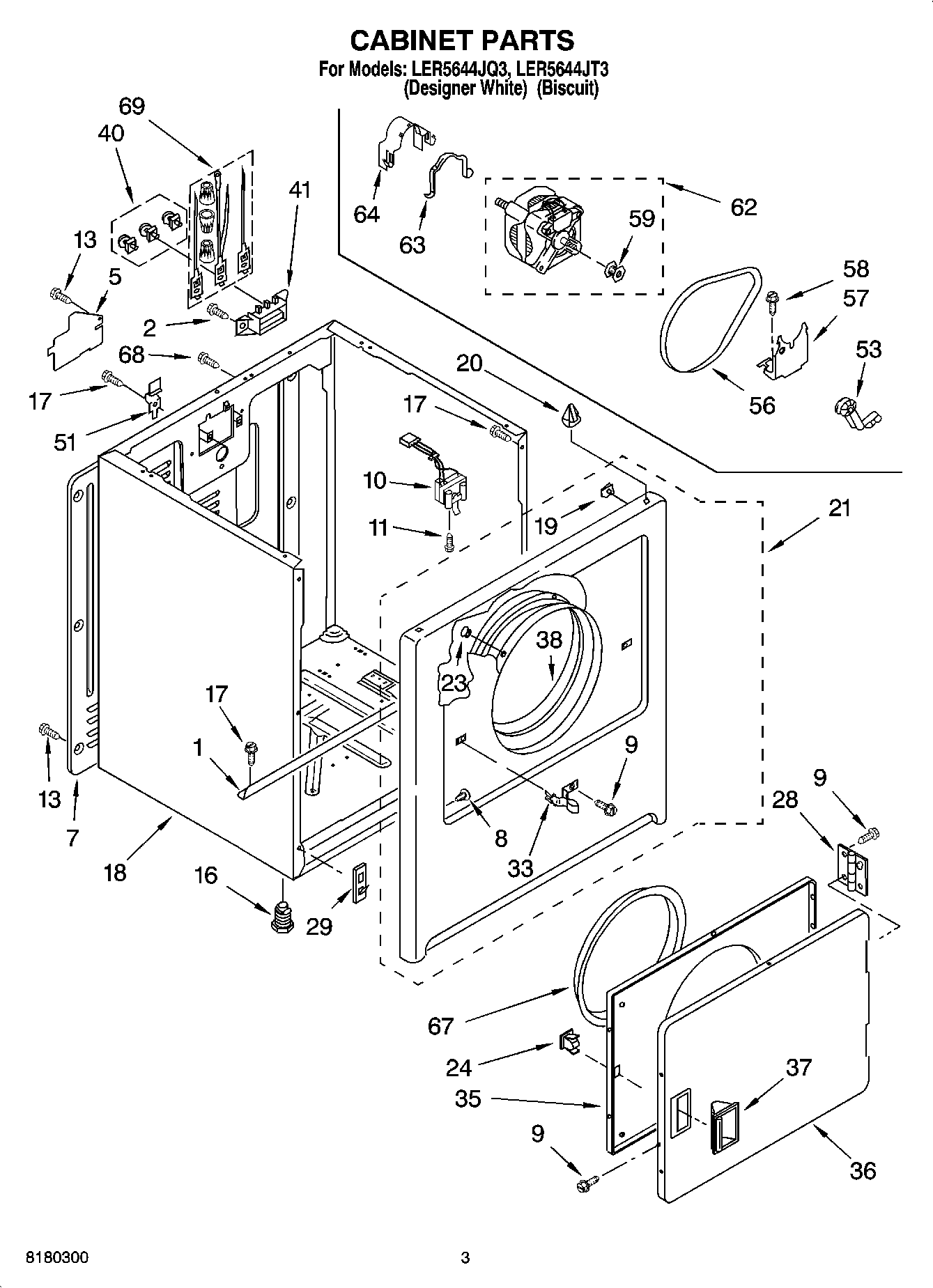

LER5644JQ3 02 – CABINET PARTS

Products

Position	Product
1	Bracket, Cabinet
2	WP308685 Whirlpool Microwave Screw
5	W11539855 Whirlpool Refrigerator Pump
7	280040 Whirlpool Rear Panel
8	Plug, Hinge Hole (4) (Biscuit)
8	WP3404413 Whirlpool Plug
9	WP488627 Whirlpool Refrigerator Screw
10	WP3406105 Whirlpool Door Switch
11	WP3395530 Whirlpool Screw
13	WP693995 Whirlpool Screw
16	49621 Whirlpool Leveling Feet
17	SCREW
18	8533643 Whirlpool Dryer White Cabinet
18	Cabinet (Biscuit)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Panel Front Assembly
21	Front Panel Assembly (Biscuit)
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
28	WPW10362431 Whirlpool Hinge Assembly
29	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
35	Door, Rear
36	WP3403361 Whirlpool Door
36	WP3403363 Whirlpool Door
37	WP3405184 Whirlpool White Door Handle
37	WP3405189 Whirlpool Handle
38	279264 Whirlpool Bearing and Seal Kit
40	279393 Whirlpool Terminal Block Screw and Nut Kit
41	WP3397659 Whirlpool Terminal Block
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
62	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
64	WP3404162 Whirlpool Clamp
67	SEAL-DOOR DRYER
68	W10850756 Whirlpool Screw
69	279318 Whirlpool Terminal
