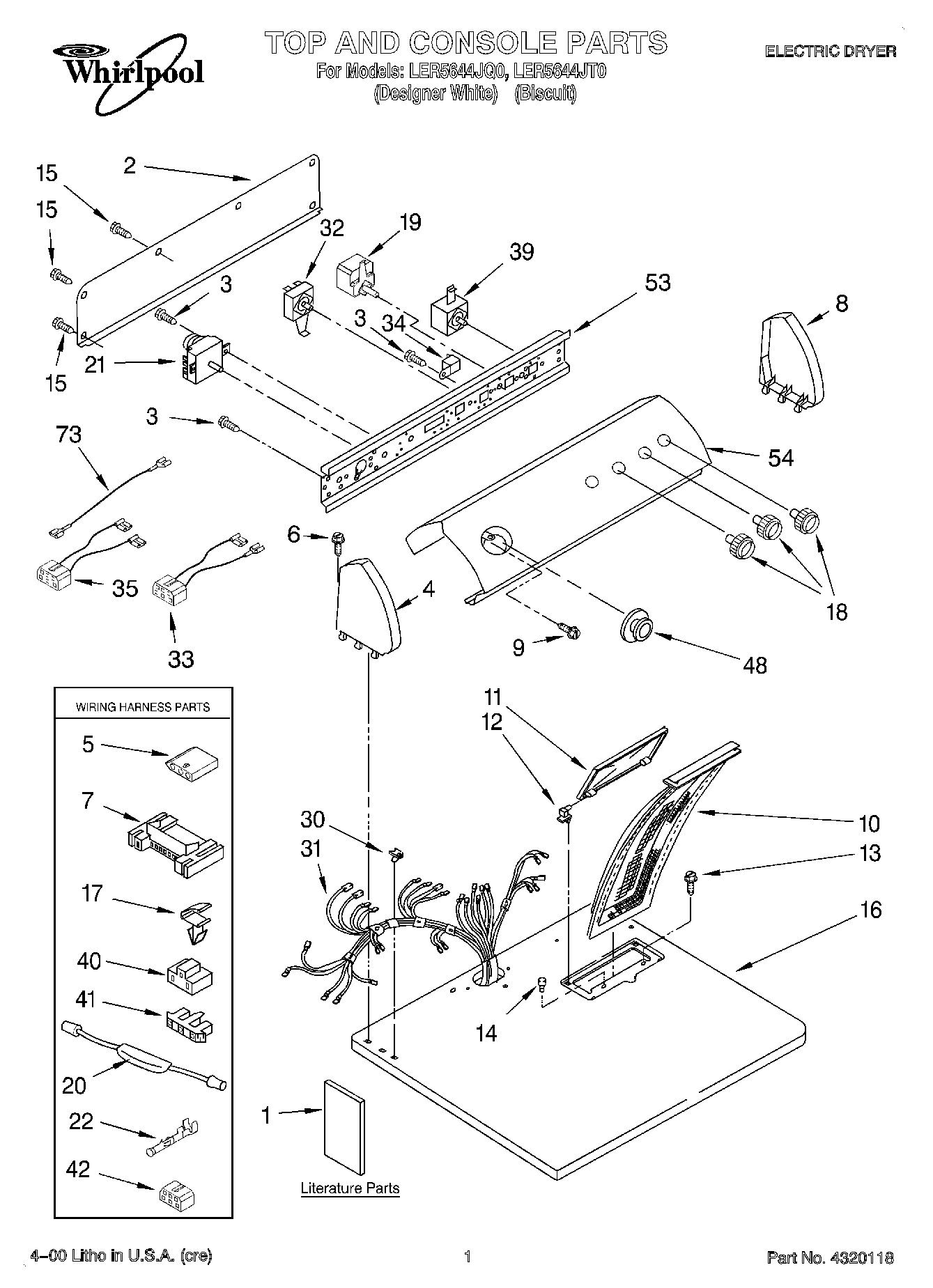

LER5644JT0 01 – SECTION

LER5644JT0 01 – SECTION

Written by

in

LER5644JT0 01 – SECTION

Products

PositionProduct
WPL LIT3406692
WPL LIT3397618
Literature Parts (Guide, Use & Care)
Dryer
1LITERATURE
2W10103406 Whirlpool Rear Panel
3WPW10139210 Whirlpool Screw
4Cap, End (L.H.) (BIscuit)
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73395683 Whirlpool Connector
8W10820038 Whirlpool Endcap
8WPL 8271362
93400859 Whirlpool Screw
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen
11Cover, Lint Screen (Biscuit)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Bumper, Lint Lid
15WP693995 Whirlpool Screw
16Top
16Top (Biscuit)
17WP3394427 Whirlpool Clip
18WP3957799 Whirlpool Knob
183957797 Whirlpool Knob
19WP3405156 Whirlpool Switch
20279872 Whirlpool Resistor
21WP8299766 Whirlpool Timer Assembly
22WP94614 Whirlpool Terminal
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32WP3399639 Whirlpool Switch
333397695 Whirlpool Wire Harness
34WP694419 Whirlpool Buzzer Adjuster
358539893 Whirlpool Wire Harness
39WP3398095 Whirlpool Dryer Start Relay
403401144 Whirlpool Connector
41Connector, Timer
42Block, Disconnect
48WP3957755 Whirlpool Knob
48WP3957754 Whirlpool Knob Assembly
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Biscuit)
7372017 Whirlpool Appliance Touch-Up Paint White
73799344 Whirlpool Refrigerator Paint
73350930 Whirlpool White Spray Paint
73PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
734392899 Whirlpool Biscuit Touch-Up Paint
734392901 Whirlpool Biscuit Spray Paint
73Wire, Jumper (Black)
73350938 Whirlpool Spray Gun
