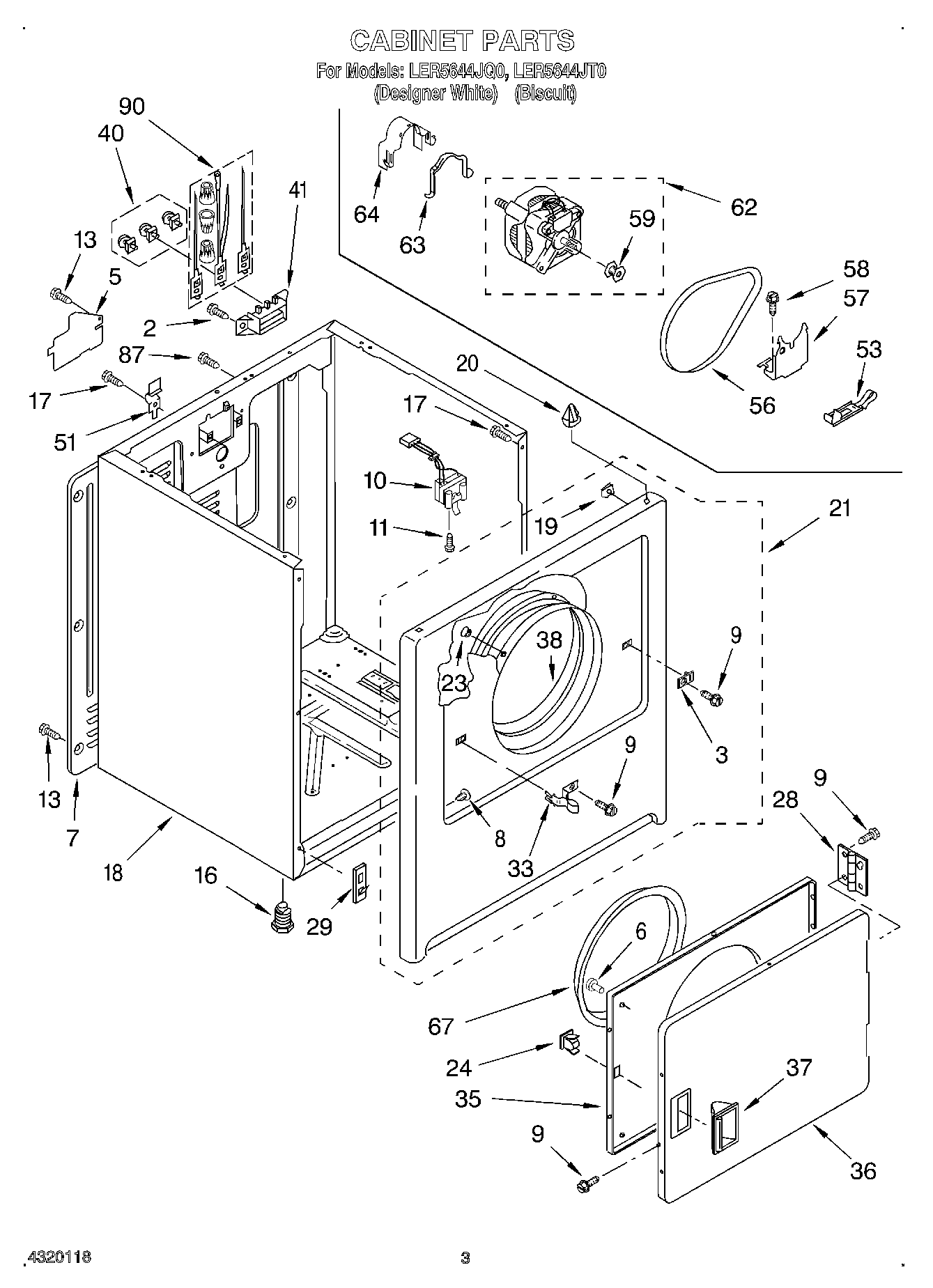

LER5644JT0 02 – SECTION

LER5644JT0 02 – SECTION

Written by

in

LER5644JT0 02 – SECTION

Products

PositionProduct
2WP308685 Whirlpool Microwave Screw
3WP3403630 Whirlpool Plug
3Plug, Strike Hole (Biscuit)
5W11539855 Whirlpool Refrigerator Pump
6238614 Whirlpool Bumper Hinge
7280040 Whirlpool Rear Panel
8Plug, Hinge Hole (4) (Biscuit)
8WP3404413 Whirlpool Plug
9WP488627 Whirlpool Refrigerator Screw
10WP3406105 Whirlpool Door Switch
11WP3395530 Whirlpool Screw
13WP693995 Whirlpool Screw
1649621 Whirlpool Leveling Feet
17SCREW
18Cabinet (Includes Illus. Nos. 5, 7, 15, 16 & 57) (Biscuit)
18Cabinet (White (Includes Illus. Nos. 5, 7, 16, 41, and 57))
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Panel Front Assembly
21Front Panel Assembly (Biscuit)
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
28WPW10362431 Whirlpool Hinge Assembly
29W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
33W11429589 Whirlpool Strike
35Door, Rear
36WP3403363 Whirlpool Door
36WP3403361 Whirlpool Door
37WP3405189 Whirlpool Handle
37WP3405184 Whirlpool White Door Handle
38279264 Whirlpool Bearing and Seal Kit
40279393 Whirlpool Terminal Block Screw and Nut Kit
41WP3397659 Whirlpool Terminal Block
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59WP8066184 Whirlpool Dryer Motor Pulley
62279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
64WP3404162 Whirlpool Clamp
67SEAL-DOOR DRYER
87W10850756 Whirlpool Screw
90279318 Whirlpool Terminal
