LER5644JT2 01 – SECTION

LER5644JT2 01 – SECTION

Written by

in

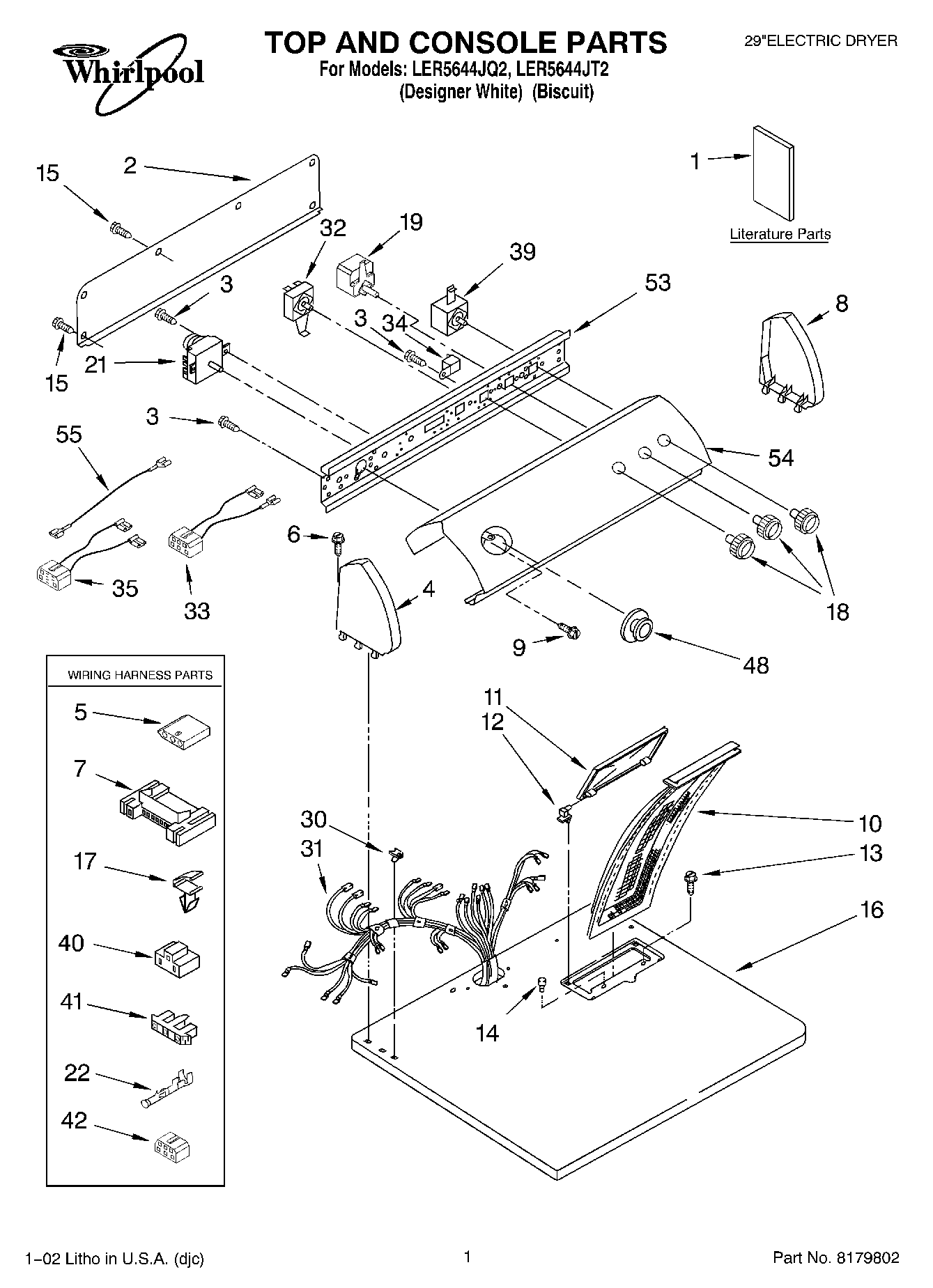

LER5644JT2 01 – SECTION

Products

PositionProduct
1WPL 677818
1WPL LIT3397618
1Literature Parts (Wiring Diagram)
1Literature Parts (Guide, Use & Care)
2W10103406 Whirlpool Rear Panel
3WPW10139210 Whirlpool Screw
4Cap, End (L.H.) (BIscuit)
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73395683 Whirlpool Connector
8WPL 8271362
8W10820038 Whirlpool Endcap
93400859 Whirlpool Screw
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen
11Cover, Lint Screen (Biscuit)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Bumper, Lint Lid
15WP693995 Whirlpool Screw
16Top (Biscuit)
16Top
17WP3394427 Whirlpool Clip
183957797 Whirlpool Knob
18WP3957799 Whirlpool Knob
19WP3405156 Whirlpool Switch
21WP3979618 Whirlpool Timer
22WP94614 Whirlpool Terminal
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32WP3399639 Whirlpool Switch
333397695 Whirlpool Wire Harness
34WP694419 Whirlpool Buzzer Adjuster
358539893 Whirlpool Wire Harness
39WP3398095 Whirlpool Dryer Start Relay
403401144 Whirlpool Connector
41Connector, Timer
42Block, Disconnect
48WP3957755 Whirlpool Knob
48WP3957754 Whirlpool Knob Assembly
53Bracket, Control
54Panel, Control (Biscuit)
54Panel, Control (White)
55WP689790 Whirlpool Dryer Rack
55350938 Whirlpool Spray Gun
554392065 Whirlpool Dryer Maintenance Kit
5572017 Whirlpool Appliance Touch-Up Paint White
55799344 Whirlpool Refrigerator Paint
55PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
55350930 Whirlpool White Spray Paint
554392901 Whirlpool Biscuit Spray Paint
554392899 Whirlpool Biscuit Touch-Up Paint
55Wire, Jumper (Black)
