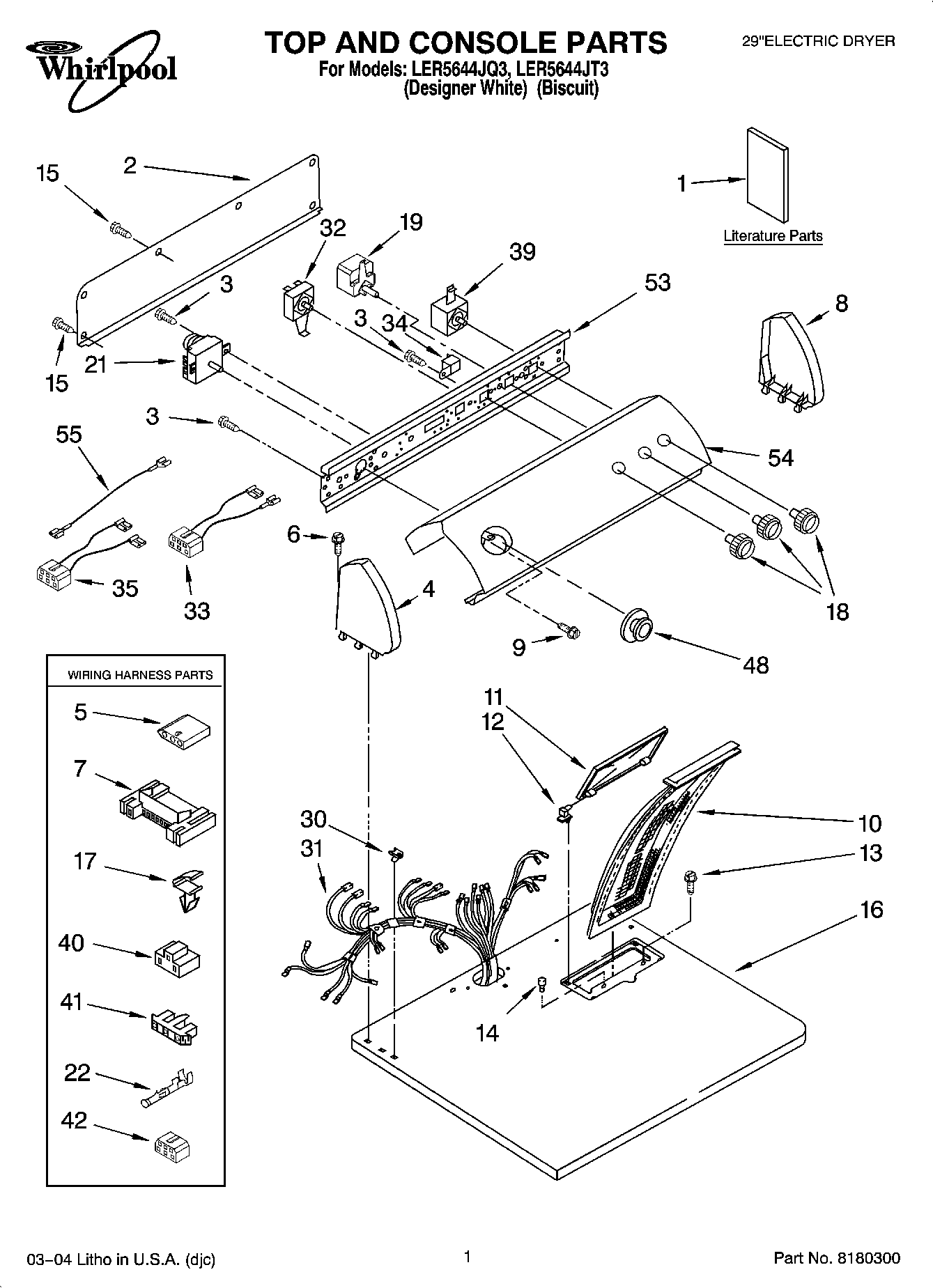

LER5644JT3 01 – TOP AND CONSOLE PARTS

LER5644JT3 01 – TOP AND CONSOLE PARTS

Written by

in

LER5644JT3 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Literature Parts (Use & Care Guide)
1DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Installation Instructions)
1Literature Parts (Sheet, Cycle Feature)
1Literature Parts (Wiring Diagram)
1WPL 677818
1Following May Be Purchased
2W10103406 Whirlpool Rear Panel
3WPW10139210 Whirlpool Screw
4Cap, End (L.H.) (BIscuit)
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73395683 Whirlpool Connector
8W10820038 Whirlpool Endcap
8WPL 8271362
93400859 Whirlpool Screw
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Bumper, Lint Lid
15WP693995 Whirlpool Screw
16Top
16Top (Biscuit)
17WP3394427 Whirlpool Clip
18WP3957799 Whirlpool Knob
183957797 Whirlpool Knob
19WP3405156 Whirlpool Switch
21WP3979618 Whirlpool Timer
22WP94614 Whirlpool Terminal
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32WP3399639 Whirlpool Switch
333397695 Whirlpool Wire Harness
34WP694419 Whirlpool Buzzer Adjuster
358539893 Whirlpool Wire Harness
39WP3398095 Whirlpool Dryer Start Relay
403401144 Whirlpool Connector
41Connector, Timer
42Block, Disconnect
48WP3957754 Whirlpool Knob Assembly
48WP3957755 Whirlpool Knob
53Bracket, Control
54Panel, Control (Biscuit)
54Panel, Control (White)
55799344 Whirlpool Refrigerator Paint
55WPL ARI117651A
55W11224254 Whirlpool Test Kit
55350938 Whirlpool Spray Gun
55Wire, Jumper (Black)
55PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
55WP689790 Whirlpool Dryer Rack
554392901 Whirlpool Biscuit Spray Paint
5572017 Whirlpool Appliance Touch-Up Paint White
554392899 Whirlpool Biscuit Touch-Up Paint
55350930 Whirlpool White Spray Paint
554392065 Whirlpool Dryer Maintenance Kit
