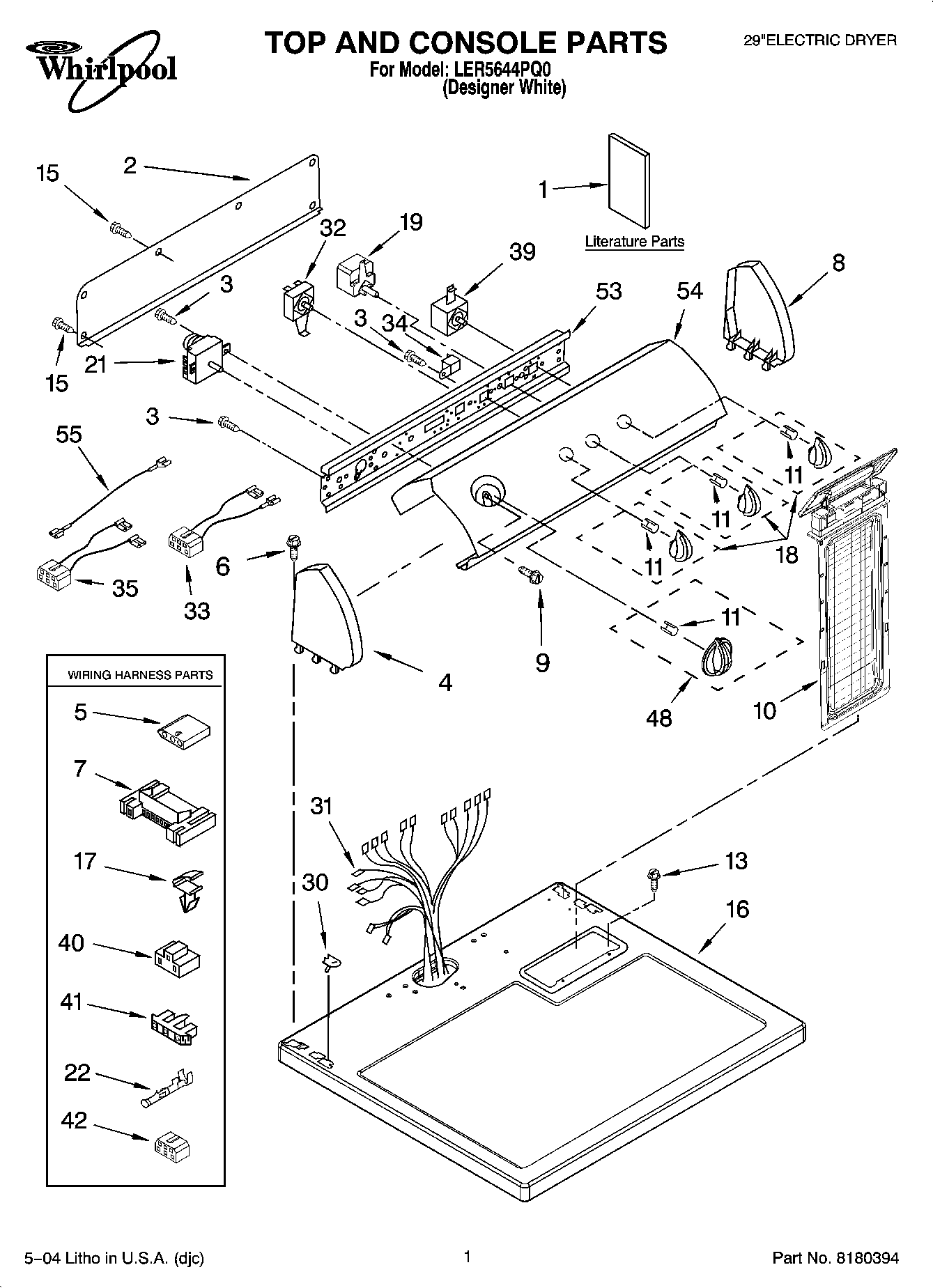

LER5644PQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Wiring Diagram
1	Sheet, Cycle Feature
1	DO-IT-YOURSELF REPAIR MANUALS
1	Following May Be Purchased
1	Installation Instructions
1	WPL 677818
1	Use & Care Guide
2	W10103406 Whirlpool Rear Panel
3	WPW10139210 Whirlpool Screw
5	3936144 Whirlpool Connector
6	WP388326 Whirlpool Screw
7	3395683 Whirlpool Connector
8	W10820038 Whirlpool Endcap
9	3400859 Whirlpool Screw
10	W10874409 Whirlpool Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
13	W11693756 Whirlpool Screw Assembly
15	WP693995 Whirlpool Screw
16	Top
17	WP3394427 Whirlpool Clip
18	WPL 8544935
19	WP3405156 Whirlpool Switch
21	WP3979618 Whirlpool Timer
22	WP94614 Whirlpool Terminal
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	WP3399639 Whirlpool Switch
33	3397695 Whirlpool Wire Harness
34	WP694419 Whirlpool Buzzer Adjuster
35	8539893 Whirlpool Wire Harness
39	WP3398095 Whirlpool Dryer Start Relay
40	3401144 Whirlpool Connector
41	Connector, Timer
42	Block, Disconnect
48	W10756270 Whirlpool Dryer Timer Knob
53	Bracket, Control
54	Panel, Control
55	72017 Whirlpool Appliance Touch-Up Paint White
55	799344 Whirlpool Refrigerator Paint
55	350938 Whirlpool Spray Gun
55	350930 Whirlpool White Spray Paint
55	Wire, Jumper (Black)
55	4392065 Whirlpool Dryer Maintenance Kit
55	W11224254 Whirlpool Test Kit
55	WP689790 Whirlpool Dryer Rack
55	ACCESSORY PARTS
