LER5700KT1 02 – SECTION

LER5700KT1 02 – SECTION

Written by

in

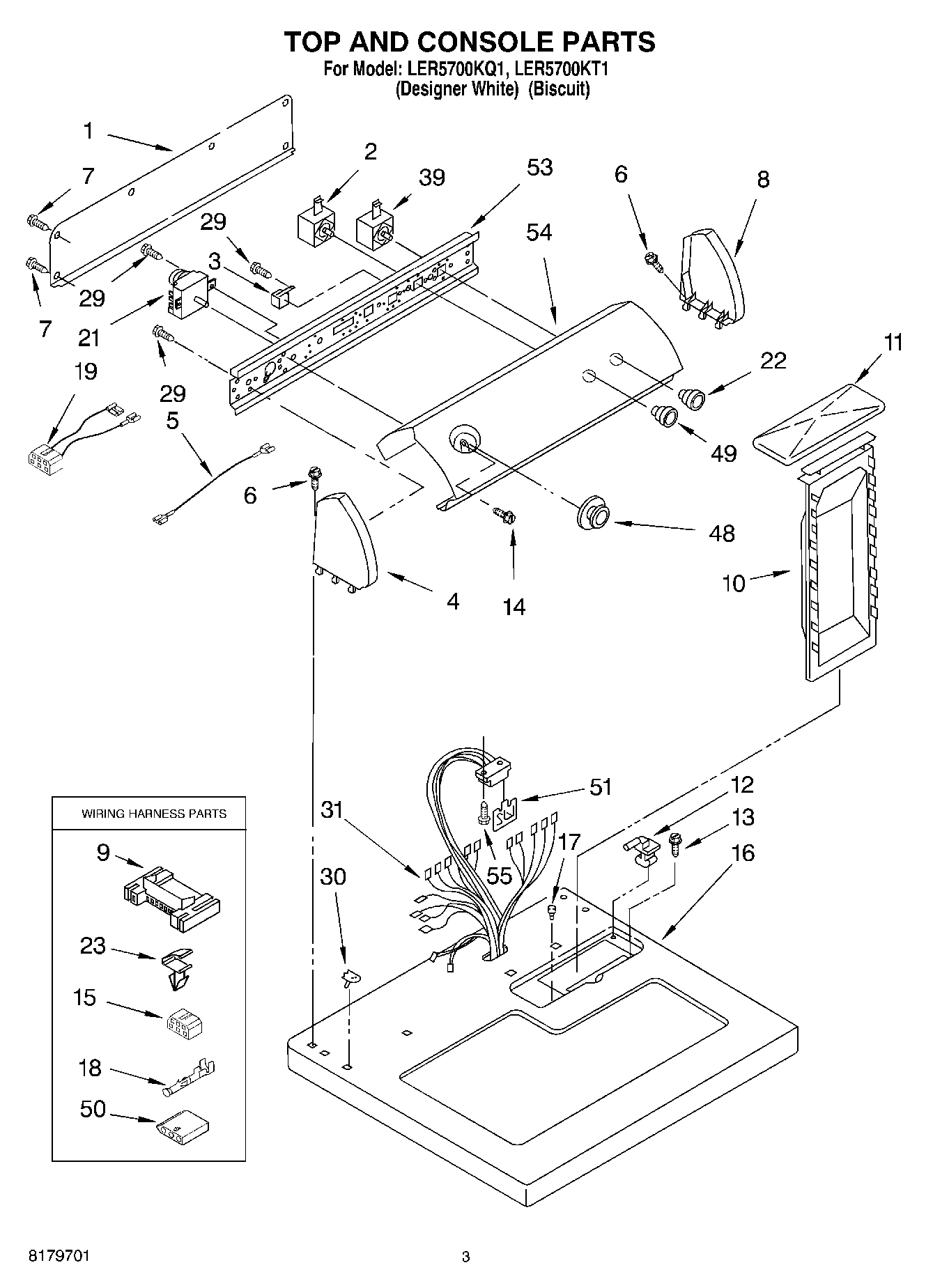

LER5700KT1 02 – SECTION

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
23405152 Whirlpool Switch Assembly
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (BIscuit)
5Wire, Jumper (Black)
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8W10820038 Whirlpool Endcap
8WPL 8271362
93395683 Whirlpool Connector
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
15Block, Disconnect
16Top
16Top (Biscuit)
17Bumper, Lint Lid
18WP94614 Whirlpool Terminal
19Wire, Jumper (Guard On/Off)
21WP8299778 Whirlpool Timer
22WPL 8271349
223957804 Whirlpool Knob
23WP3394427 Whirlpool Clip
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39WP3977456 Whirlpool Start Switch
48WP3957755 Whirlpool Knob
48WP3957754 Whirlpool Knob Assembly
49WP3957799 Whirlpool Knob
493957797 Whirlpool Knob
503936144 Whirlpool Connector
53Bracket, Control
544392901 Whirlpool Biscuit Spray Paint
54PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
54Panel, Control (Biscu
54Panel, Control (White)
544392065 Whirlpool Dryer Maintenance Kit
543404351 Whirlpool Dryer Rack
54350930 Whirlpool White Spray Paint
54350938 Whirlpool Spray Gun
5472017 Whirlpool Appliance Touch-Up Paint White
544392899 Whirlpool Biscuit Touch-Up Paint
54799344 Whirlpool Refrigerator Paint
