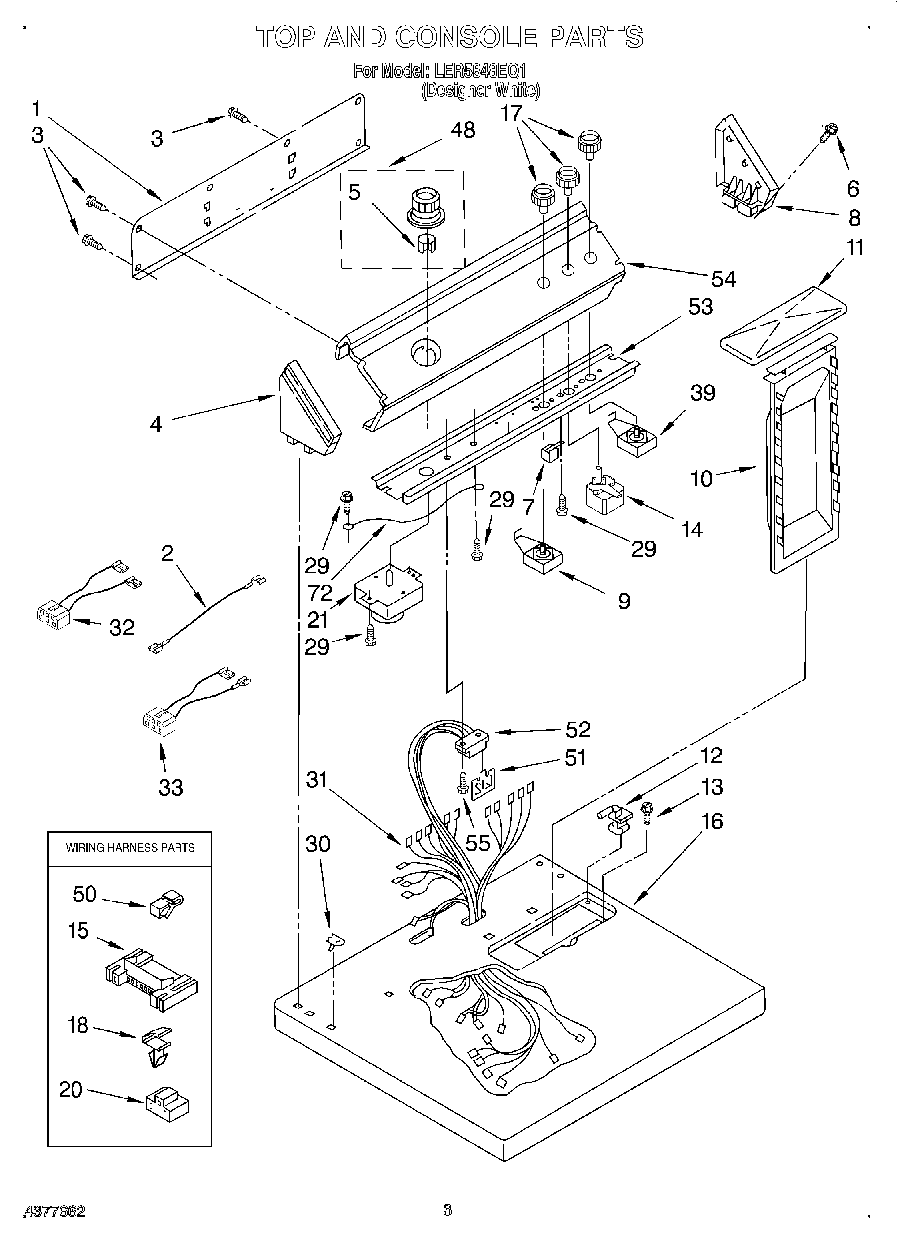

LER5848EQ1 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Instructions, Installation
	Almond (Uncut)
	WPL LIT3401096
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	WPL LIT3401734
	Dryer
1	Panel, Rear Console
2	Wire, Jumper (Black)
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.)
5	WP688805 Whirlpool Spring Clip
6	WP388326 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	Cap, End (R.H.)
9	W10168169 Whirlpool Switch
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP3405156 Whirlpool Switch
15	3395683 Whirlpool Connector
16	Top (White)
17	WP3957796 Whirlpool Knob
18	WP3394427 Whirlpool Clip
20	3401144 Whirlpool Connector
21	Timer Assembly (60 Hz.)
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Electric
32	Wire-Jumper Assembly
33	3397695 Whirlpool Wire Harness
39	WP3398095 Whirlpool Dryer Start Relay
48	WP3957752 Whirlpool Knob
50	Clip, Retainer
51	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
52	3391885 Whirlpool Connector
53	Bracket, Control
54	Panel, Control (White)
55	SCREW
72	Wire, Ground
