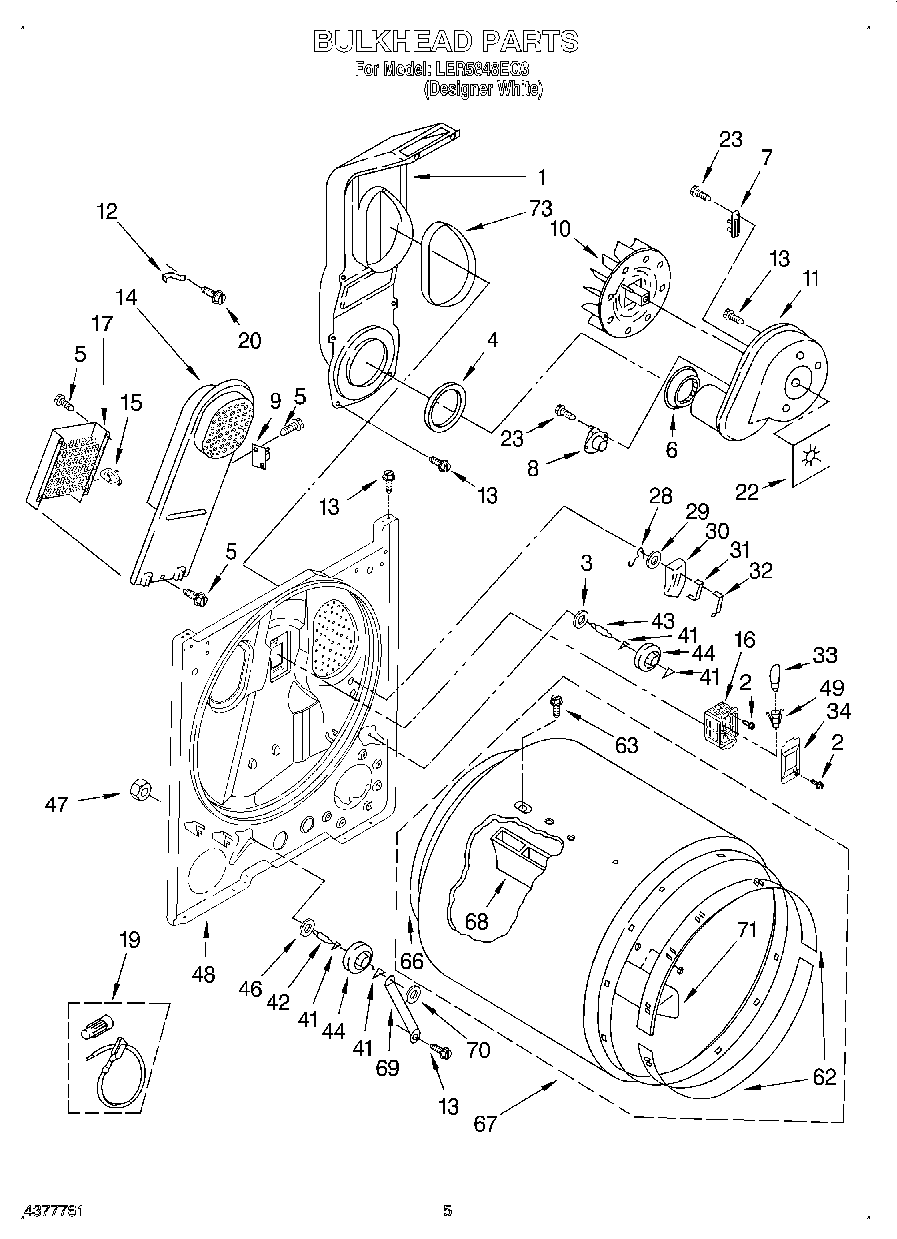

LER5848EQ3 03 – SECTION

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
2WP308685 Whirlpool Microwave Screw
3WP3388703 Whirlpool Washer
4W11415783 Whirlpool Seal
6W11233063 Whirlpool Shield Assembly
7WP3392519 Whirlpool Dryer Thermal Fuse
8WP3387134 Whirlpool Dryer Cycling Thermostat
9279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13SCREW
14WP8541818 Whirlpool Box
15WP3977767 Whirlpoo Dryer High Limit Thermostat
163977373 Whirlpool Bracket
17279838 Whirlpool Dryer Heating Element 5400W
19279457 Whirlpool Dryer Heating Element Wide Spade Connection
20WP489463 Whirlpool Refrigerator Screw
22Seal, Blower
23WP90767 Whirlpool Screw
28Clip, Sensor
29WP298877 Whirlpool Washer
30SENSOR KIT
31WP348859 Whirlpool Electrode Assembly
32WP348860 Whirlpool Electrode
33WP22002263 Whirlpool Dryer 10W Light Bulb
34W11226088 Whirlpool Lens Assembly
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP3359452 Whirlpool Nut
48W10828905 Whirlpool Bulkhead OS1
49W11700522 Whirlpool Socket
62279441 Whirlpool Front Bearing Ring
63WPW10109200 Whirlpool Screw
66W10612022 Whirlpool Felt Seal
67W10899578 Whirlpool Dryer Drum Assembly
68BAFFLE-DRM
69W11684613 Whirlpool Bracket
70WP90296 Whirlpool Clip
71WP3403636 Whirlpool Drum Baffle
73SEAL
