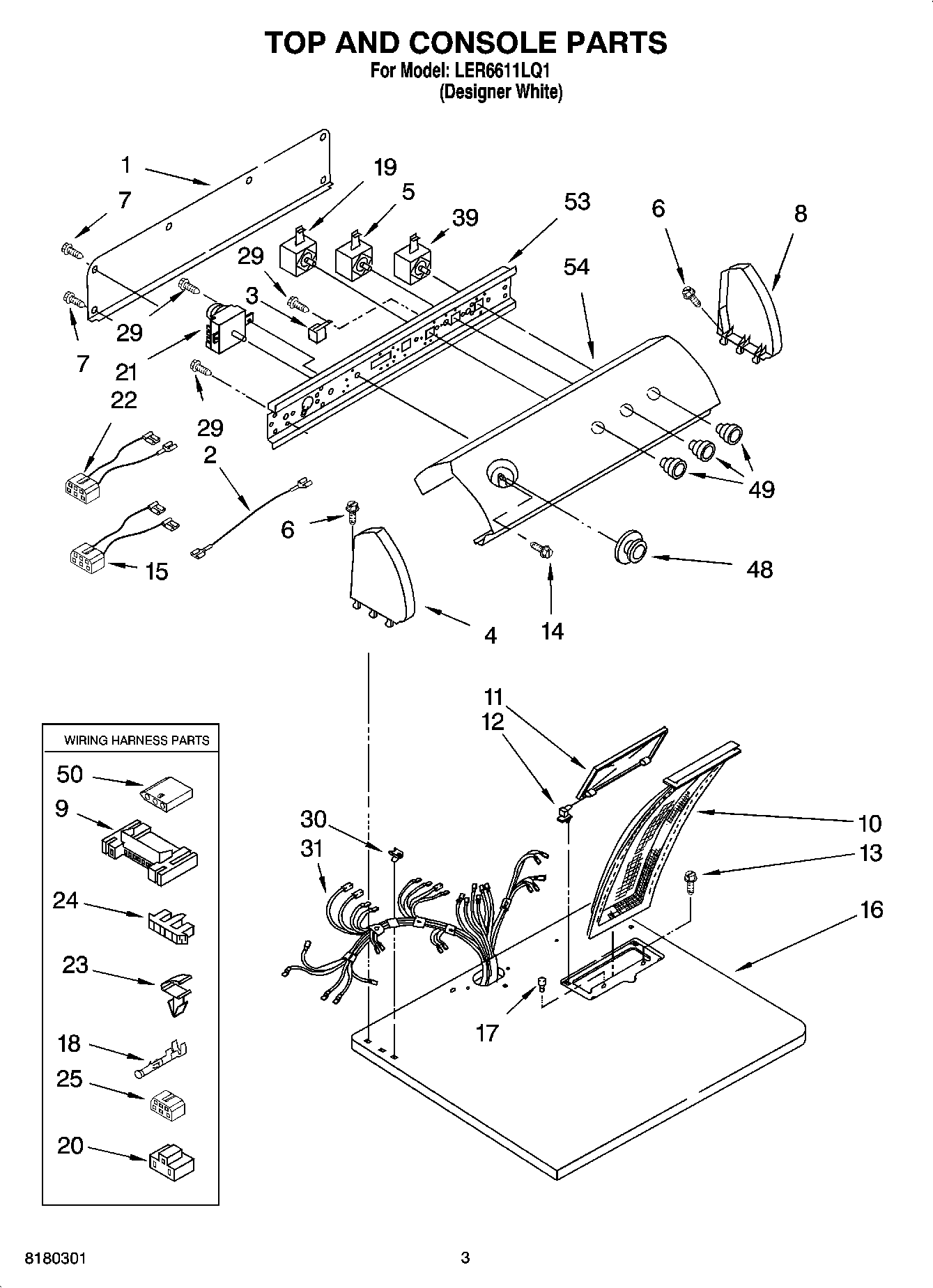

LER6611LQ1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Wire, Jumper (Black)
3WP694419 Whirlpool Buzzer Adjuster
5WP3405156 Whirlpool Switch
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8W10820038 Whirlpool Endcap
93395683 Whirlpool Connector
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
158539893 Whirlpool Wire Harness
16Top
17Bumper, Lint Lid
18WP94614 Whirlpool Terminal
19WP3399639 Whirlpool Switch
203401144 Whirlpool Connector
21WP3979618 Whirlpool Timer
223397695 Whirlpool Wire Harness
23WP3394427 Whirlpool Clip
24Connector, Timer
25Block, Disconnect
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39WP3398095 Whirlpool Dryer Start Relay
48WP3957754 Whirlpool Knob Assembly
49WP3957799 Whirlpool Knob
503936144 Whirlpool Connector
53Bracket, Control
54350938 Whirlpool Spray Gun
54350930 Whirlpool White Spray Paint
54Panel, Control
54W11224254 Whirlpool Test Kit
544392065 Whirlpool Dryer Maintenance Kit
543404351 Whirlpool Dryer Rack
54799344 Whirlpool Refrigerator Paint
5472017 Whirlpool Appliance Touch-Up Paint White
54ACCESSORY PARTS
