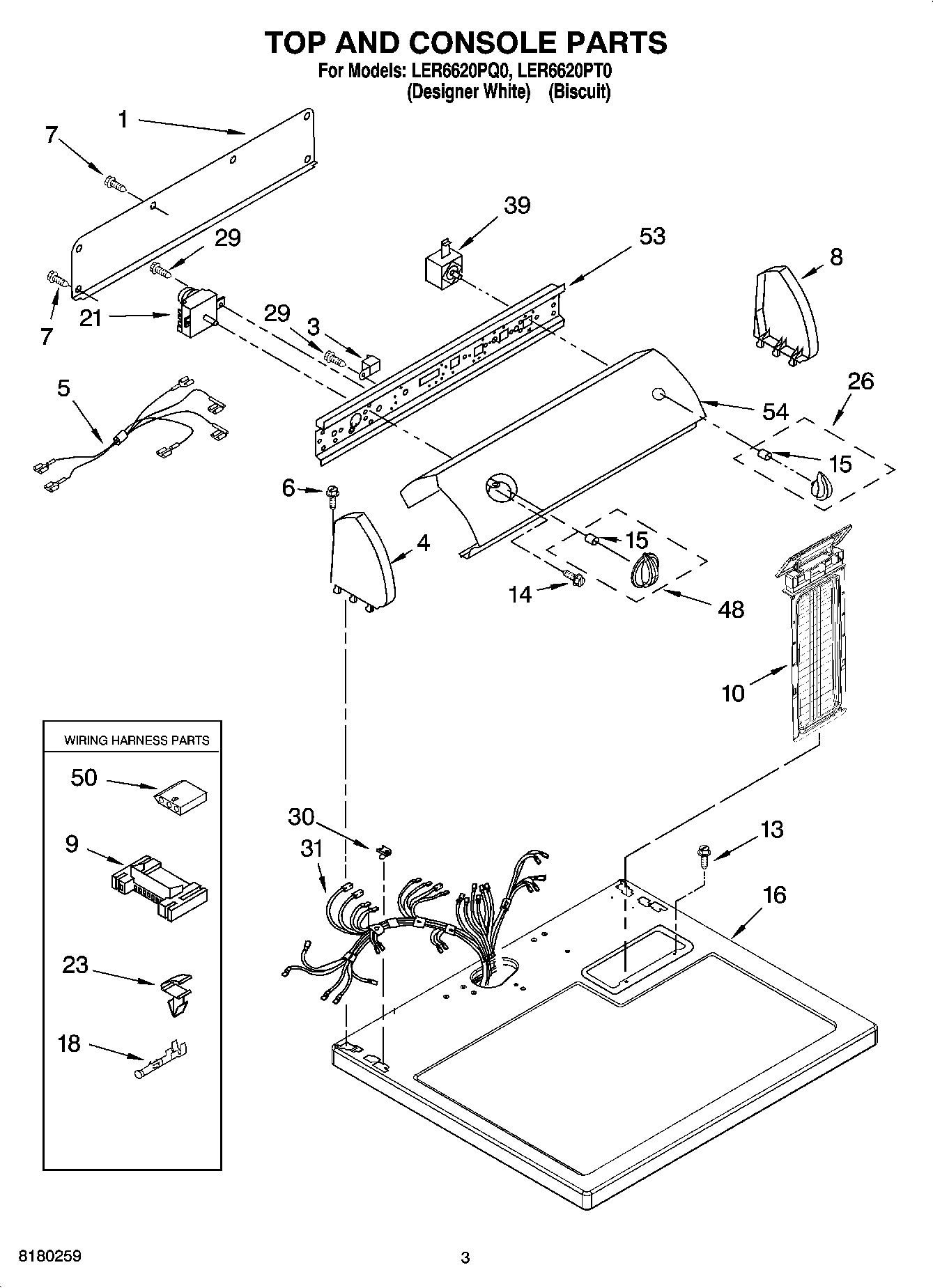

LER6620PT0 02 – TOP AND CONSOLE PARTS

LER6620PT0 02 – TOP AND CONSOLE PARTS

Written by

in

LER6620PT0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (BIscuit)
5Wire, Jumper (PTS to Buzzer)
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8W10820038 Whirlpool Endcap
8WPL 8271362
93395683 Whirlpool Connector
10Screen, Lint (Biscuit)
10WPW10717210 Whirlpool Dryer Lint Screen Filter
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
15WP8536939 Whirlpool Spring Clip
16Top
16Top
18WP94614 Whirlpool Terminal
21WP8299778 Whirlpool Timer
23WP3394427 Whirlpool Clip
26WPL 8544936
26WPL 8544935
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31WPW10450292 Whirlpool Wire Harness
39WP3404233 Whirlpool Dryer Starter Switch
48W10756270 Whirlpool Dryer Timer Knob
48Timer Knob Assembly (Biscuit)
503936144 Whirlpool Connector
53Bracket, Control
54Panel, Control (White)
54ACCESSORY PARTS
54Panel, Control (Biscuit)
543404351 Whirlpool Dryer Rack
54PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
54W11224254 Whirlpool Test Kit
544392065 Whirlpool Dryer Maintenance Kit
54799344 Whirlpool Refrigerator Paint
544392901 Whirlpool Biscuit Spray Paint
544392899 Whirlpool Biscuit Touch-Up Paint
54350930 Whirlpool White Spray Paint
5472017 Whirlpool Appliance Touch-Up Paint White
54350938 Whirlpool Spray Gun
