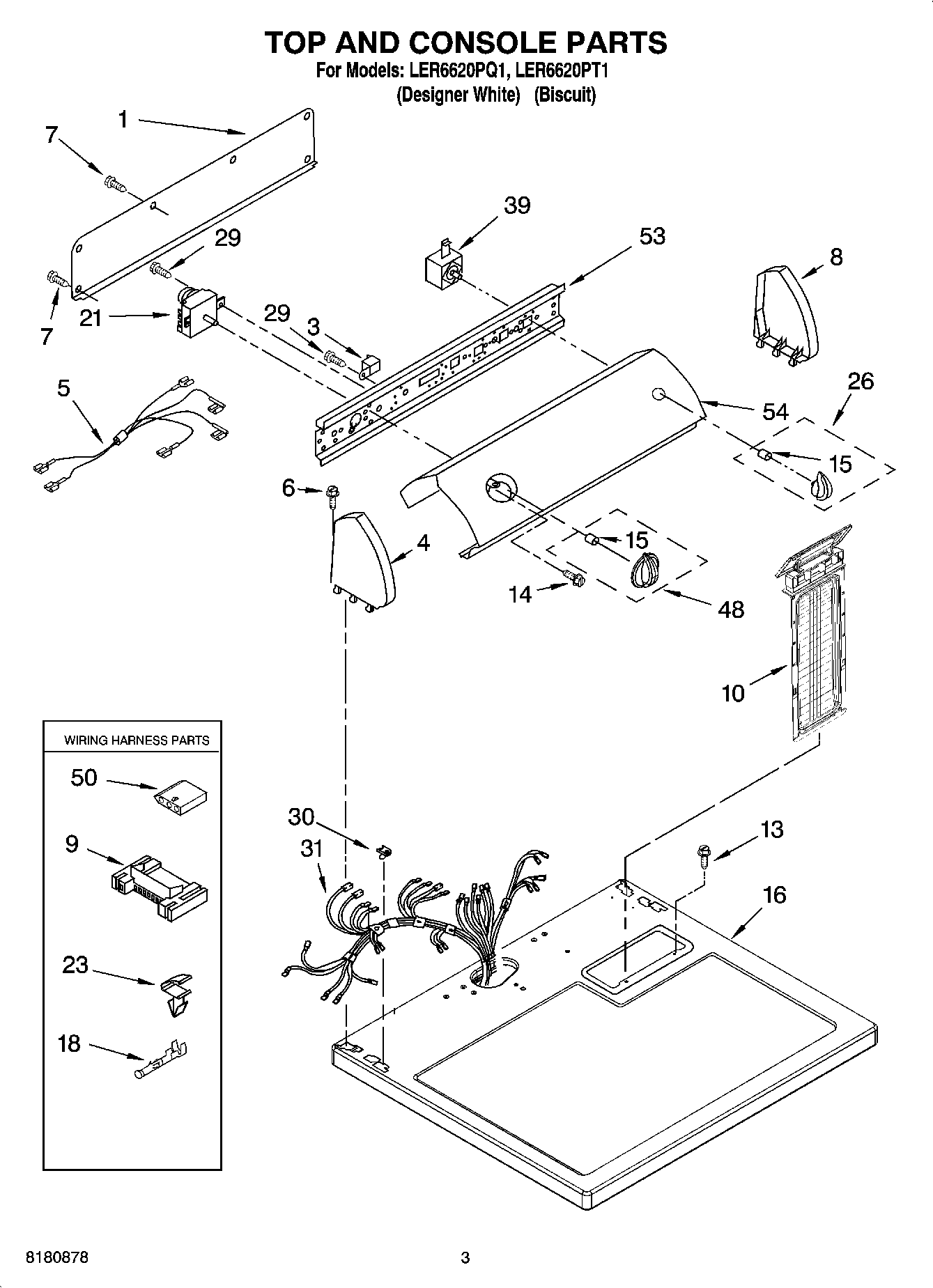

LER6620PT1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (BIscuit)
5Wire, Jumper (PTS to Buzzer)
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8WPL 8271362
8W10820038 Whirlpool Endcap
93395683 Whirlpool Connector
10Screen, Lint (Biscuit)
10WPW10717210 Whirlpool Dryer Lint Screen Filter
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
15WP8536939 Whirlpool Spring Clip
16Top
16Top
18WP94614 Whirlpool Terminal
21WP8299778 Whirlpool Timer
23WP3394427 Whirlpool Clip
26WPL 8544936
26WPL 8544935
29WP90767 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31WPW10450292 Whirlpool Wire Harness
39WP8543274 Whirlpool PTS Switch
48W10756270 Whirlpool Dryer Timer Knob
48Timer Knob Assembly (Biscuit)
503936144 Whirlpool Connector
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Biscuit)
