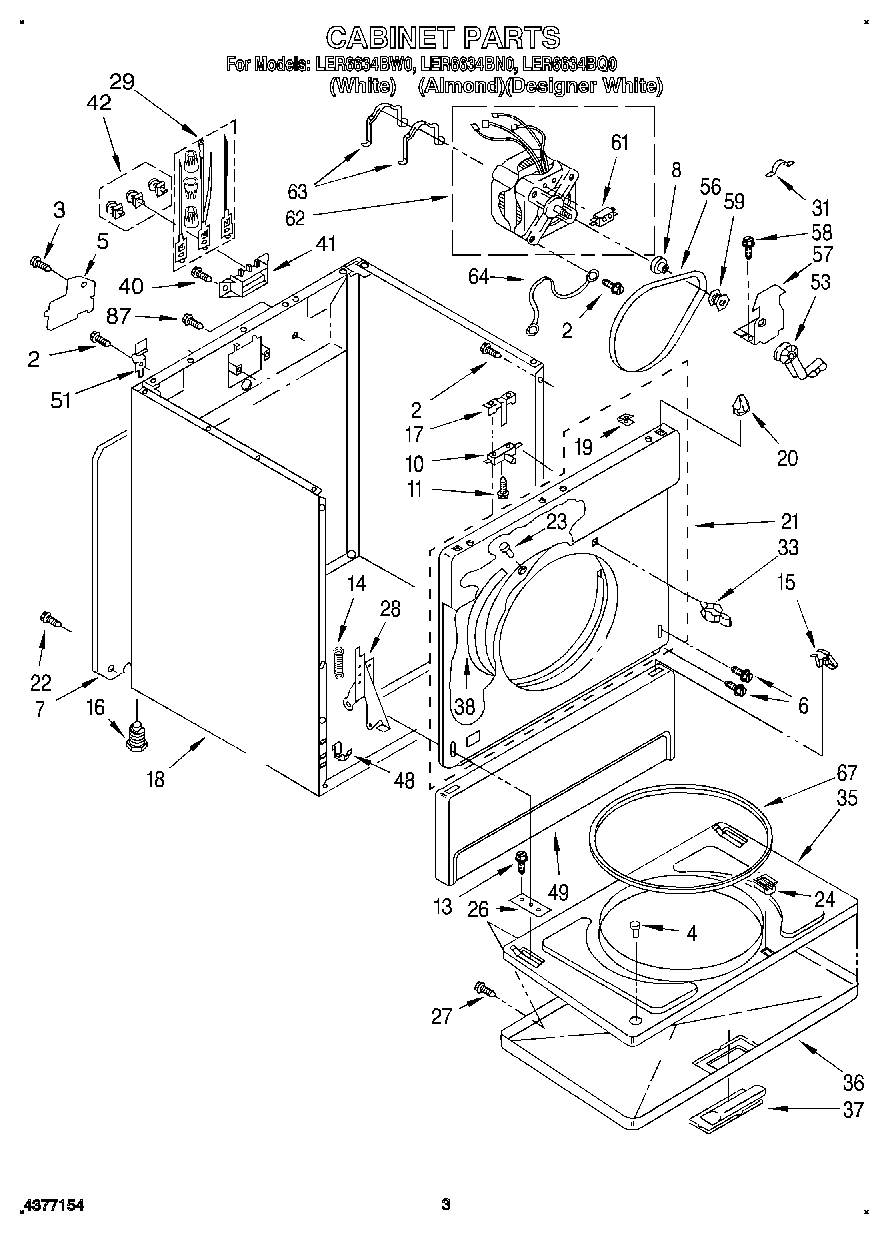

LER6634BN0 02 – SECTION

Products

Position	Product
2	SCREW
3	WP693995 Whirlpool Screw
4	238614 Whirlpool Bumper Hinge
5	W11736322 Whirlpool Cover Assembly
6	Screw, 10-32 x 1/2
7	Panel, Rear
8	WP3393657 Whirlpool Belt Retainer
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
13	WP308685 Whirlpool Microwave Screw
14	Spring, Door (2)
15	WP3388229 Whirlpool Dryer Spring Clip
16	49621 Whirlpool Leveling Feet
17	WP691581 Whirlpool Actuator
18	Cabinet (Almond)
18	Cabinet (White)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Front Panel Assembly (White)
21	Front Panel Assembly (Almond)
22	WP489069 Whirlpool Compactor Screw
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
26	W11252547 Whirlpool Clip Assembly
27	WP694091 Whirlpool Screw
28	Hinge, R.H.
28	Hinge, L.H.
29	279318 Whirlpool Terminal
31	8528351 Whirlpool Clip
35	Door, Rear
36	Door, Front (Almond)
36	Door, Front (White)
37	Handle, Door (Almond)
37	WP348721 Whirlpool Handle
38	279264 Whirlpool Bearing and Seal Kit
41	279320 Whirlpool Dryer Rear Terminal Block Kit
42	279393 Whirlpool Terminal Block Screw and Nut Kit
48	WP297092 Whirlpool Clip
49	Panel, Toe (White)
49	Panel, Toe (Almond)
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
61	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
64	Wire, Ground (Motor)
67	WP3390733 Whirlpool Door Seal Assembly
87	W10850756 Whirlpool Screw
