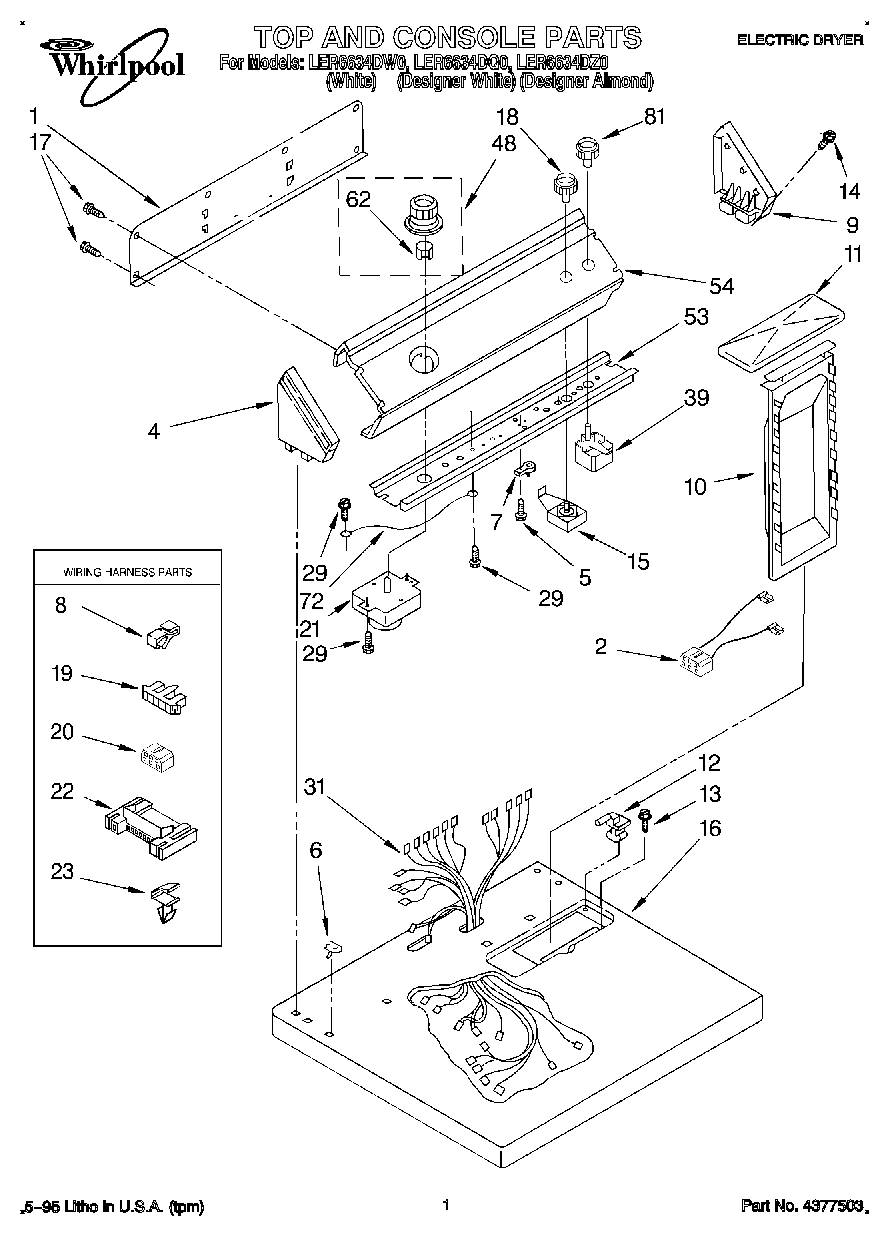

LER6634DW0 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Dryer
	Instructions, Installation
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	Guide, Use & Care
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	Label, Wiring Diagram
1	Panel, Rear Console
2	8283286 Whirlpool Wire Harness
4	Cap, End (L.H.)
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (White)
5	WP488729 Whirlpool Refrigerator Door Screw
6	WP357213 Whirlpool Hinge Stopper
7	279872 Whirlpool Resistor
8	Clip, Retainer
9	Cap, End (R.H.) (Almond)
9	Cap, End (R.H.)
9	Cap, End (R.H.) (White)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	3399638 Whirlpool Switch
16	Top (Almond)
16	Top (White)
17	WP693995 Whirlpool Screw
18	3957797 Whirlpool Knob
18	WP3957796 Whirlpool Knob
18	KNOB
19	Connector, Timer
20	Block, Disconnect
21	WP3976568 Whirlpool Timer
22	3395683 Whirlpool Connector
23	WP3394427 Whirlpool Clip
29	WPW10139210 Whirlpool Screw
31	Harness, Wiring
39	WP3395382 Whirlpool Push To Start Switch
48	3957753 Whirlpool Knob
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (LGR6634DW1)
54	Panel, Control (LGR6634DQ1)
54	Panel, Control (LGR6634DZ1)
62	WP688805 Whirlpool Spring Clip
72	Wire, Ground
81	Knob, Push To Start
81	WP3957800 Whirlpool Knob
