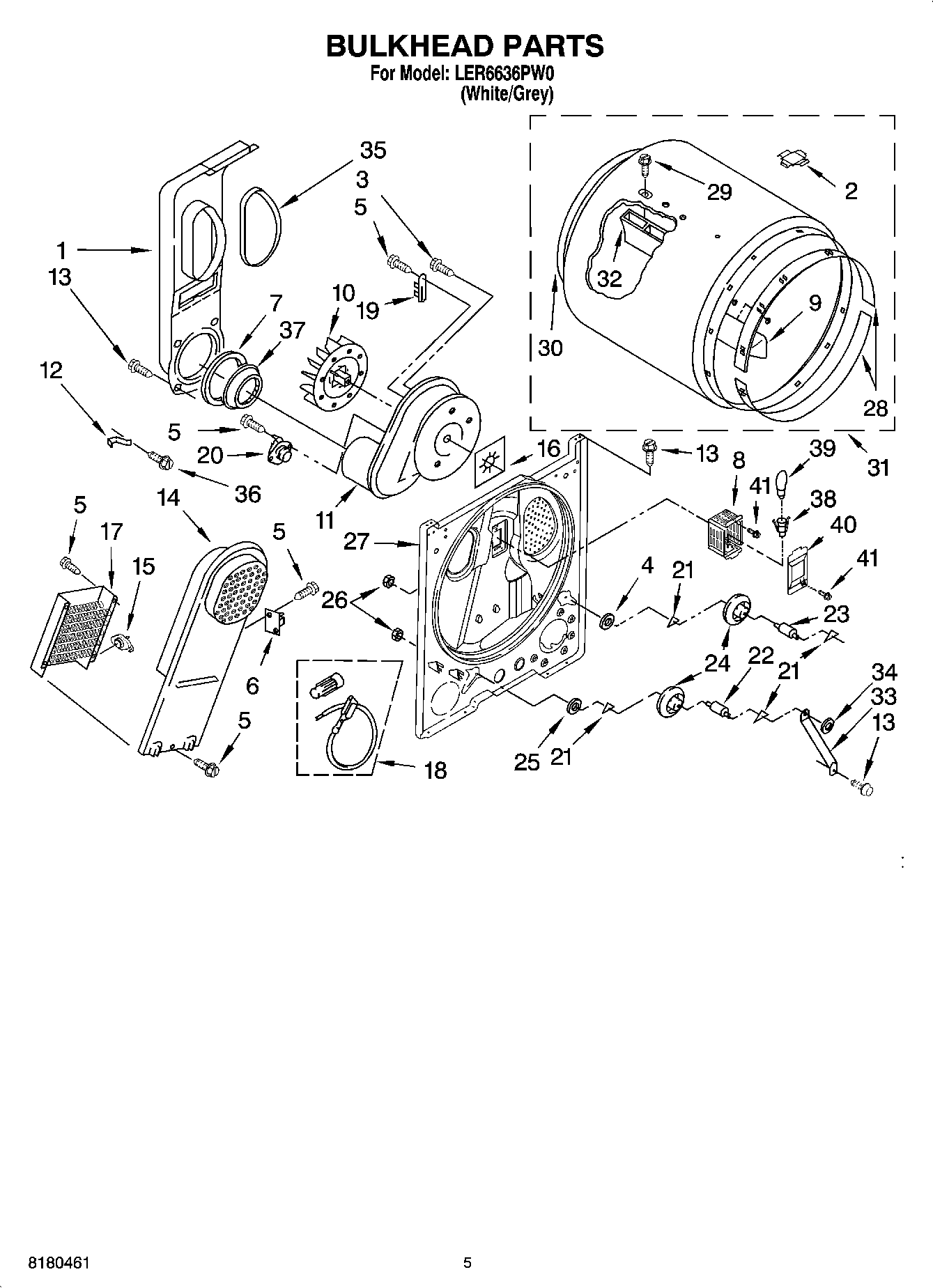

LER6636PW0 03 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	8066086 Whirlpool Plug
3	WP488729 Whirlpool Refrigerator Door Screw
4	WP3388703 Whirlpool Washer
5	WP90767 Whirlpool Screw
6	279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
7	W11415783 Whirlpool Seal
8	3977373 Whirlpool Bracket
9	WP3403636 Whirlpool Drum Baffle
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
14	WP8541818 Whirlpool Box
15	WP3977767 Whirlpoo Dryer High Limit Thermostat
16	Seal, Blower
17	279838 Whirlpool Dryer Heating Element 5400W
18	279457 Whirlpool Dryer Heating Element Wide Spade Connection
19	WP3392519 Whirlpool Dryer Thermal Fuse
20	WP3387134 Whirlpool Dryer Cycling Thermostat
21	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
22	SHAFT SUPPORT ROLLER DRYER
23	SHAFT SUPPORT ROLLER DRYER
24	349241T Whirlpool Dryer Drum Support Roller Kit
25	WP348197 Whirlpool Washer Assembly
26	WP3359452 Whirlpool Nut
27	W10828431 Whirlpool Oven Bulkhead
28	279441 Whirlpool Front Bearing Ring
29	WPW10109200 Whirlpool Screw
30	W10612022 Whirlpool Felt Seal
31	W10899578 Whirlpool Dryer Drum Assembly
32	BAFFLE-DRM
33	W11684613 Whirlpool Bracket
34	WP90296 Whirlpool Clip
35	SEAL
36	WP489463 Whirlpool Refrigerator Screw
37	W11233063 Whirlpool Shield Assembly
38	W11700522 Whirlpool Socket
39	WP22002263 Whirlpool Dryer 10W Light Bulb
40	W11226088 Whirlpool Lens Assembly
