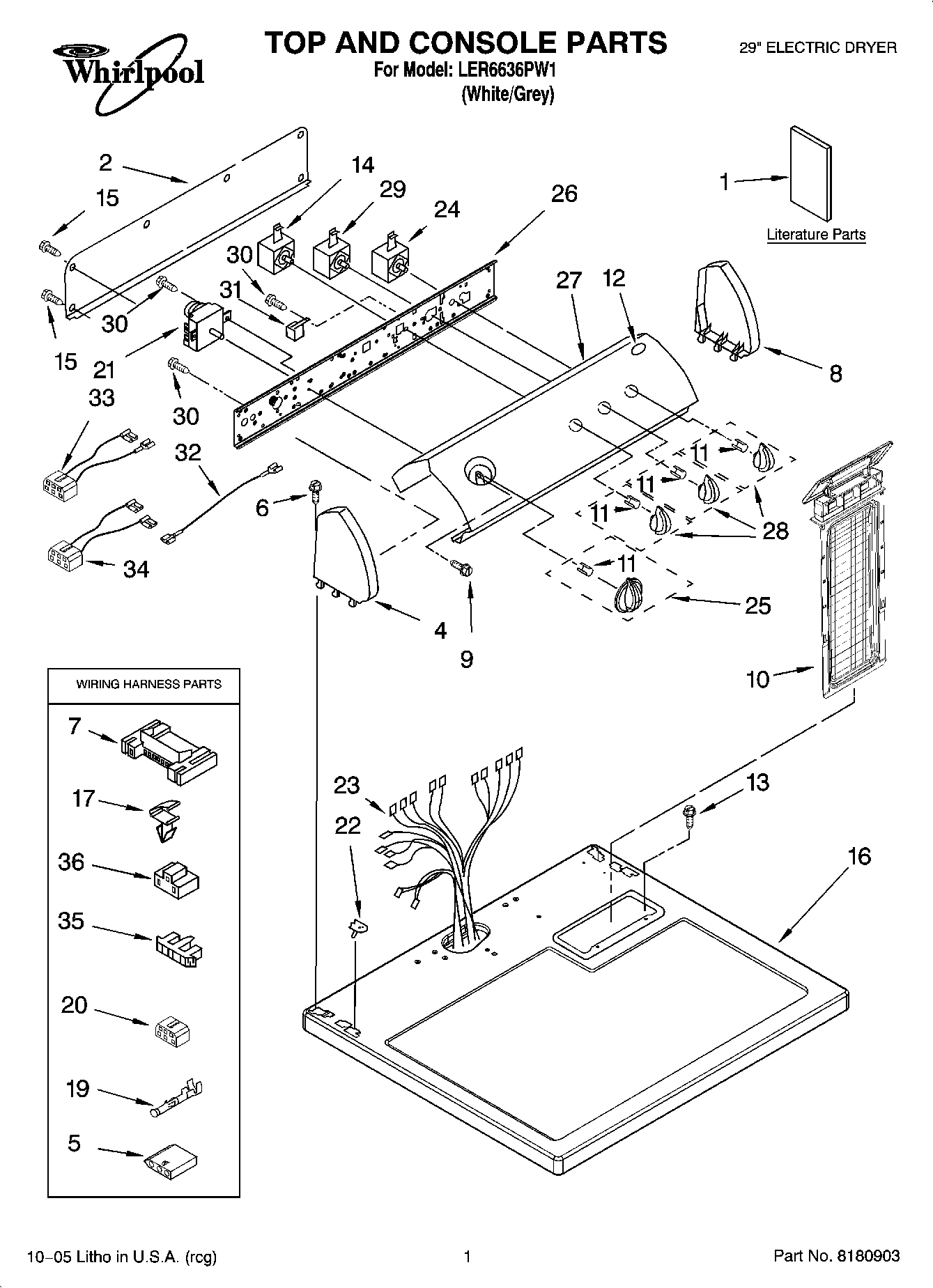

LER6636PW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1DO-IT-YOURSELF REPAIR MANUALS
1Wiring Diagram
1WPL 677818
1Sheet, Cycle Feature
1Use & Care Guide
1Installation Instructions
1Following May Be Purchased
2W10103406 Whirlpool Rear Panel
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73395683 Whirlpool Connector
8W10820038 Whirlpool Endcap
93400859 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WPL 3400985
13W11693756 Whirlpool Screw Assembly
14WP3399639 Whirlpool Switch
15WP693995 Whirlpool Screw
16Top
17WP3394427 Whirlpool Clip
19WP94614 Whirlpool Terminal
20Block, Disconnect
21WP3979618 Whirlpool Timer
22WP357213 Whirlpool Hinge Stopper
23Harness, Wiring
24WP3398095 Whirlpool Dryer Start Relay
25WPL 8544957
26Bracket, Control
27Panel, Control (Includes Illus. 12)
28WPL 8544937
29WP3405156 Whirlpool Switch
30WP90767 Whirlpool Screw
31WP694419 Whirlpool Buzzer Adjuster
32Wire, Jumper (Black)
333397695 Whirlpool Wire Harness
348539893 Whirlpool Wire Harness
35Connector, Timer
363401144 Whirlpool Connector
