LER6636PW1 02 – CABINET PARTS
Written by
in

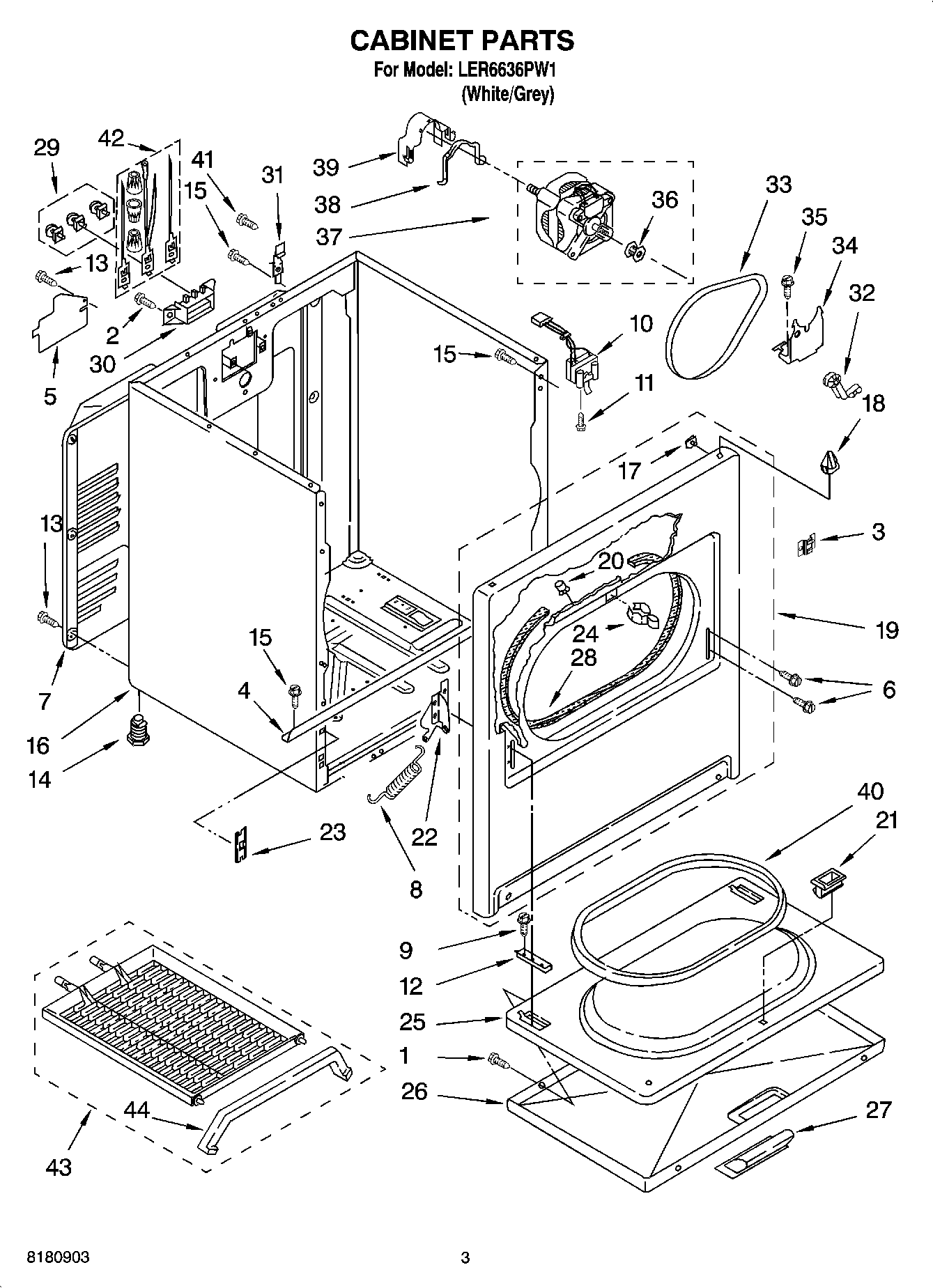

LER6636PW1 02 – CABINET PARTS
Products
Position
Product
1
WP694091 Whirlpool Screw
3
8546676 Whirlpool Clip
4
Bracket, Cabinet
5
W11539855 Whirlpool Refrigerator Pump
6
Screw, 10-32 x 1/2
7
280043 Whirlpool Rear Panel
8
8541401 Whirlpool Door Spring
9
WP308685 Whirlpool Microwave Screw
10
WP3406107 Whirlpool Dryer Door Switch
11
WP3395530 Whirlpool Screw
12
W11252547 Whirlpool Clip Assembly
13
WP693995 Whirlpool Screw
14
49621 Whirlpool Leveling Feet
15
SCREW
16
8533643 Whirlpool Dryer White Cabinet
17
WP98234 Whirlpool Nut
18
WP18776 Whirlpool Lock
19
279443 Whirlpool Primary Panel
20
279220 Whirlpool Clip
21
WP3389441 Whirlpool Door Catch
22
WP8066056 Whirlpool Door Hinge
22
WP8066057 Whirlpool Door Hinge
23
W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
24
279570 Whirlpool Dryer Door Latch Kit
25
WP695737 Whirlpool Door
26
WP3393549 Whirlpool Door Assembly
27
WP348721 Whirlpool Handle
28
W11035878 Whirlpool Bearing and Seal
29
279393 Whirlpool Terminal Block Screw and Nut Kit
30
WP3397659 Whirlpool Terminal Block
31
WP8066217 Whirlpool Hinge
32
WP691366 Whirlpool Dryer Idler Pulley Assembly
33
341241 Whirlpool Dryer Drum Belt
34
WP348780 Whirlpool Base
35
3400500 Whirlpool Screw
36
WP8066184 Whirlpool Dryer Motor Pulley
37
279827 Whirlpool Dryer Drive Motor
38
WP660658 Whirlpool Clamp
39
WP3404162 Whirlpool Clamp
40
W10906683 Whirlpool Door Seal
41
W10850756 Whirlpool Screw
42
279318 Whirlpool Terminal
43
3406839 Whirlpool Drying Rack
44
Bracket, Dryer Rack
←
