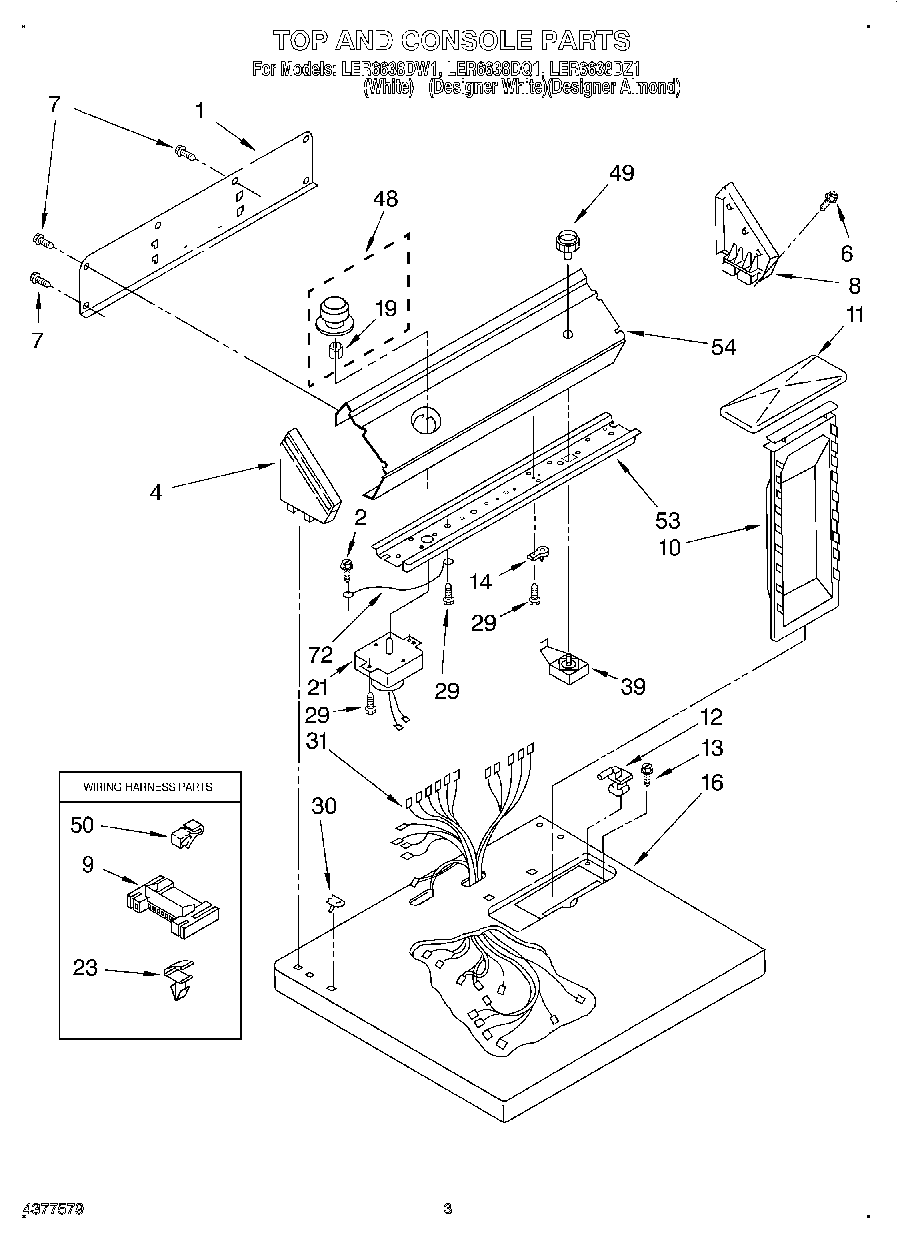

LER6638DQ1 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Dryer
	Instructions, Installation
	Almond (Uncut)
	Guide, Use & Care
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Label, Wiring Diagram
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	WP488729 Whirlpool Refrigerator Door Screw
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.)
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.)
6	WP388326 Whirlpool Screw
7	WP693995 Whirlpool Screw
8	Cap, End (R.H.)
8	Cap, End (R.H.) (Almond)
8	Cap, End (R.H.)
8	Cap, End (R.H.) (White)
9	3395683 Whirlpool Connector
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	279872 Whirlpool Resistor
16	Top (Almond)
16	Top (White)
19	WP688805 Whirlpool Spring Clip
21	WP3976569 Whirlpool Timer
23	WP3394427 Whirlpool Clip
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	WP3395382 Whirlpool Push To Start Switch
48	WP3957752 Whirlpool Knob
48	3957753 Whirlpool Knob
48	Timer Knob Assembly
49	WP3957800 Whirlpool Knob
49	Knob, Push To Start
49	Knob, Push To Start
50	Clip, Retainer
53	Bracket, Control
54	Panel, Control (LGR6638DZ0)
54	Panel, Control (LGR6638DW0)
54	WPL ARI117688A
54	Panel, Control (LGR6638DQ0)
72	Wire, Ground
