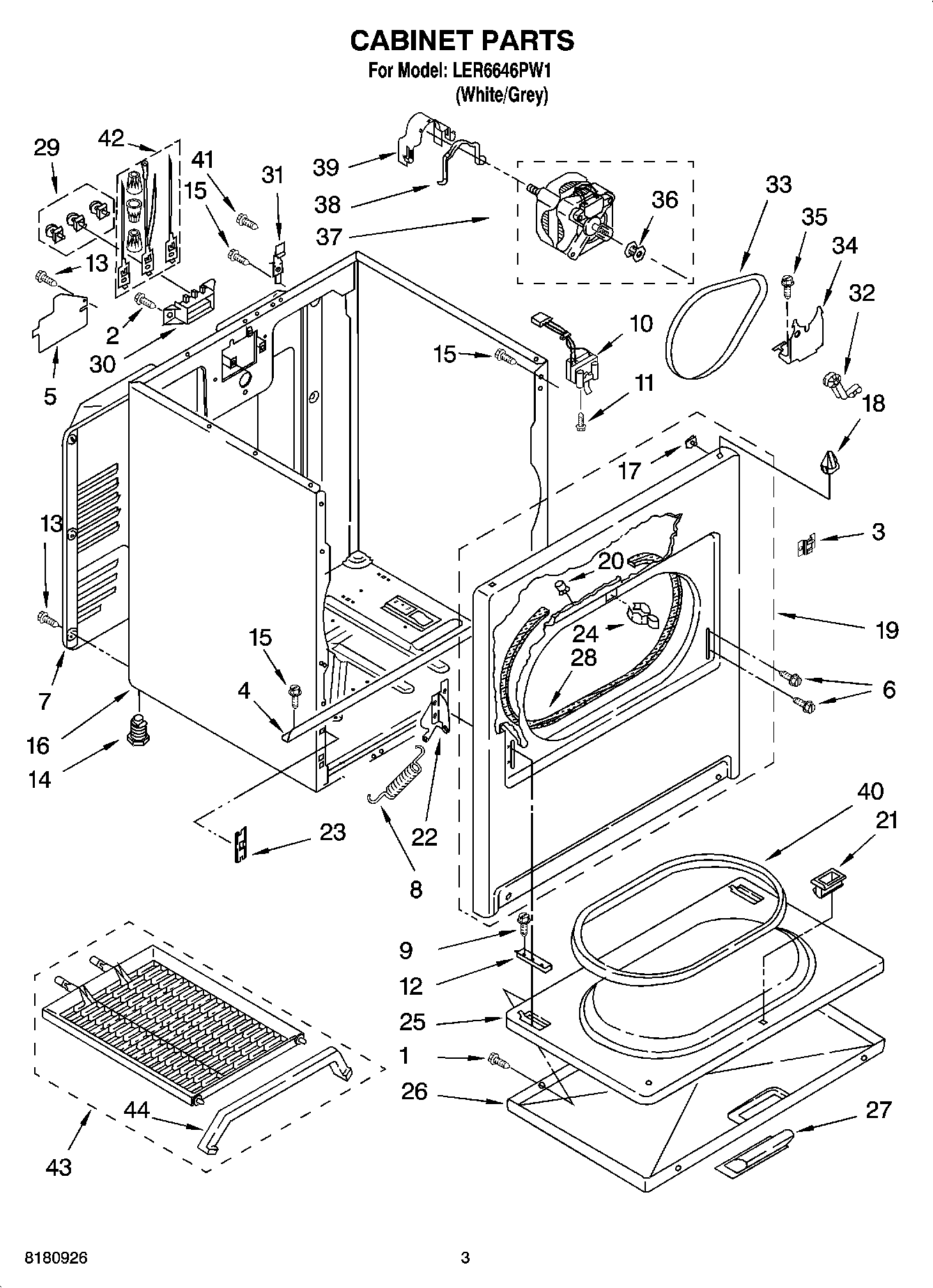

LER6646PW1 02 – CABINET PARTS

LER6646PW1 02 – CABINET PARTS

Written by

in

LER6646PW1 02 – CABINET PARTS

Products

PositionProduct
1WP694091 Whirlpool Screw
38546676 Whirlpool Clip
4Bracket, Cabinet
5W11539855 Whirlpool Refrigerator Pump
6Screw, 10-32 x 1/2
7280043 Whirlpool Rear Panel
88541401 Whirlpool Door Spring
9WP308685 Whirlpool Microwave Screw
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
12W11252547 Whirlpool Clip Assembly
13WP693995 Whirlpool Screw
1449621 Whirlpool Leveling Feet
15SCREW
168533643 Whirlpool Dryer White Cabinet
17WP98234 Whirlpool Nut
18WP18776 Whirlpool Lock
19279443 Whirlpool Primary Panel
20279220 Whirlpool Clip
21WP3389441 Whirlpool Door Catch
22WP8066056 Whirlpool Door Hinge
22WP8066057 Whirlpool Door Hinge
23W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
24279570 Whirlpool Dryer Door Latch Kit
25WP695737 Whirlpool Door
26WP3393549 Whirlpool Door Assembly
27WP348721 Whirlpool Handle
28W11035878 Whirlpool Bearing and Seal
29279393 Whirlpool Terminal Block Screw and Nut Kit
30WP3397659 Whirlpool Terminal Block
31WP8066217 Whirlpool Hinge
32WP691366 Whirlpool Dryer Idler Pulley Assembly
33341241 Whirlpool Dryer Drum Belt
34WP348780 Whirlpool Base
353400500 Whirlpool Screw
36WP8066184 Whirlpool Dryer Motor Pulley
37279827 Whirlpool Dryer Drive Motor
38WP660658 Whirlpool Clamp
39WP3404162 Whirlpool Clamp
40W10906683 Whirlpool Door Seal
41W10850756 Whirlpool Screw
42279318 Whirlpool Terminal
433406839 Whirlpool Drying Rack
44Bracket, Dryer Rack
