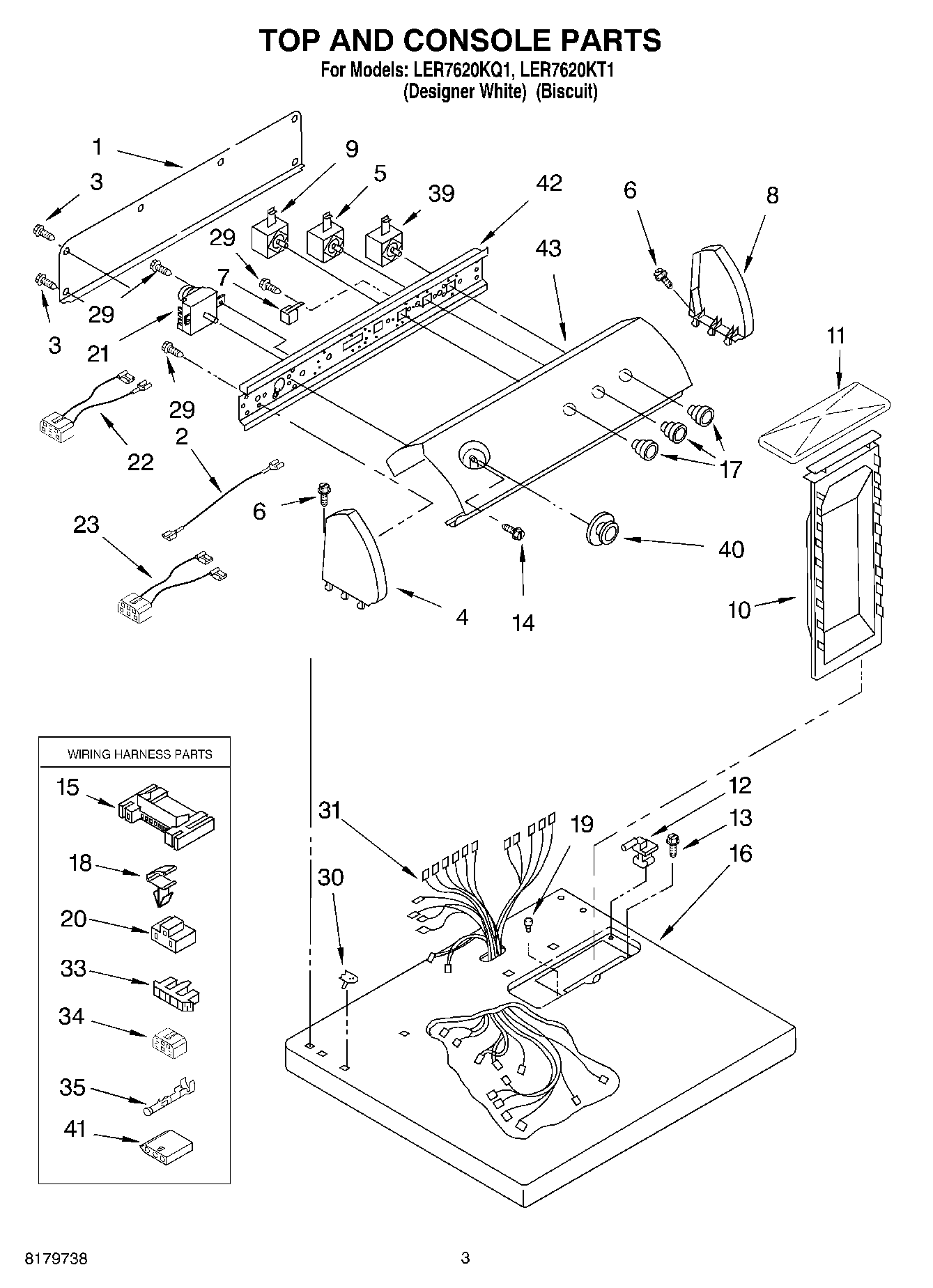

LER7620KT1 02 – SECTION

LER7620KT1 02 – SECTION

Written by

in

LER7620KT1 02 – SECTION

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Wire, Jumper (Black)
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (BIscuit)
5WP3405156 Whirlpool Switch
6WP388326 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8W10820038 Whirlpool Endcap
8WPL 8271362
9WP3399639 Whirlpool Switch
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
11Cover, Lint Screen (Biscuit)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
16Top (Biscuit)
17WP3957799 Whirlpool Knob
173957797 Whirlpool Knob
18WP3394427 Whirlpool Clip
19Bumper, Lint Lid
203401144 Whirlpool Connector
21WP3979618 Whirlpool Timer
223397695 Whirlpool Wire Harness
238539893 Whirlpool Wire Harness
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
33Connector, Timer
34Block, Disconnect
35WP94614 Whirlpool Terminal
39WP3398095 Whirlpool Dryer Start Relay
40WP3957754 Whirlpool Knob Assembly
40WP3957755 Whirlpool Knob
413936144 Whirlpool Connector
42Bracket, Control
43350938 Whirlpool Spray Gun
43P
4372017 Whirlpool Appliance Touch-Up Paint White
43350930 Whirlpool White Spray Paint
434392899 Whirlpool Biscuit Touch-Up Paint
43799344 Whirlpool Refrigerator Paint
434392901 Whirlpool Biscuit Spray Paint
43PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
433406839 Whirlpool Drying Rack
434392065 Whirlpool Dryer Maintenance Kit
43WPL 3977870
