LER7620LQ0 02 – SECTION
Written by
in

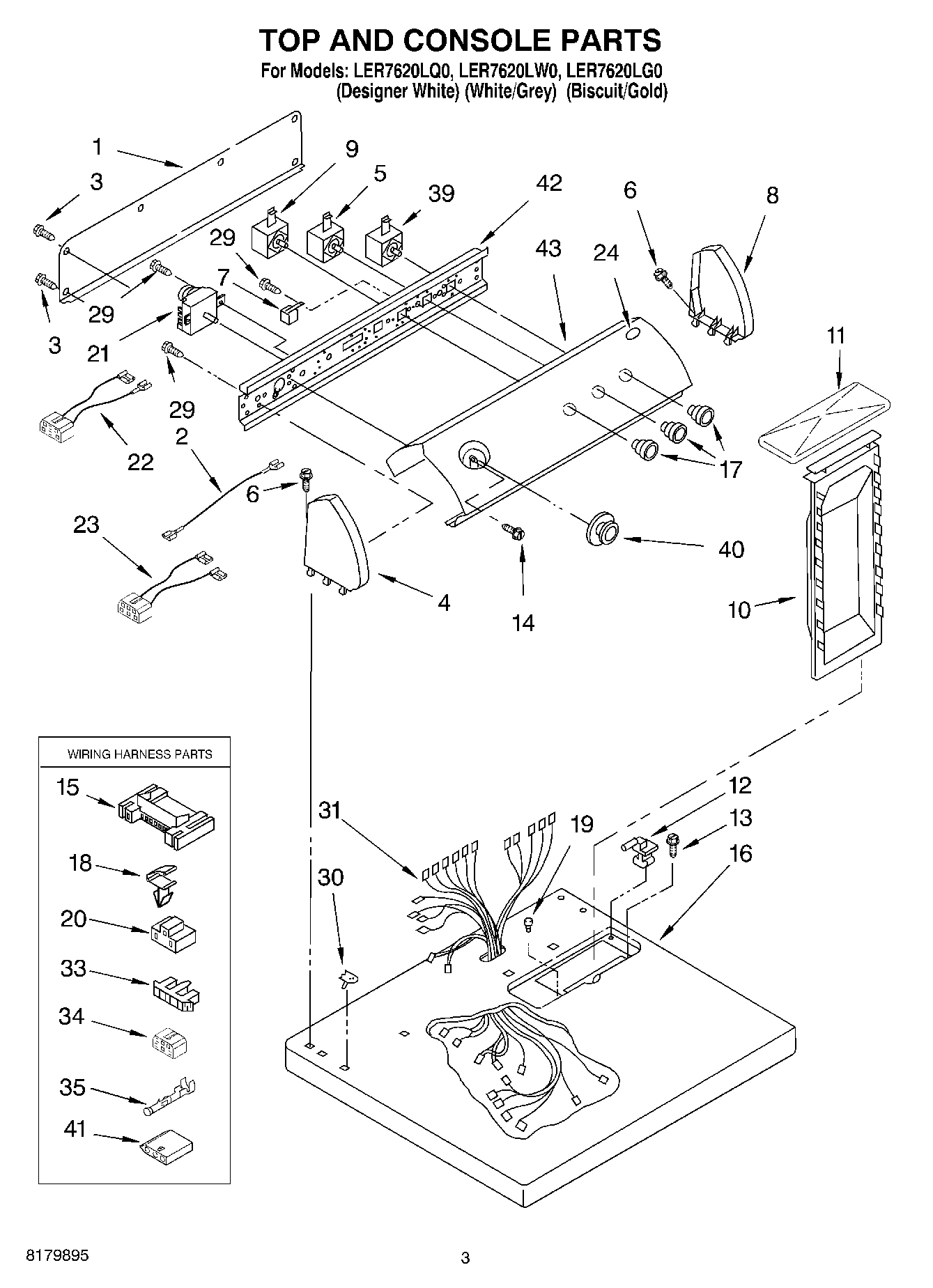

LER7620LQ0 02 – SECTION
Products
Position
Product
1
W10103406 Whirlpool Rear Panel
2
Wire, Jumper (Black)
3
WP693995 Whirlpool Screw
4
Cap, End (L.H.) (BIscuit)
5
WP3405156 Whirlpool Switch
6
WP388326 Whirlpool Screw
7
WP694419 Whirlpool Buzzer Adjuster
8
W10820038 Whirlpool Endcap
8
WPL 8271362
9
WP3399639 Whirlpool Switch
10
WP349639 Whirlpool Lint Filter
11
Cover, Lint Screen
11
Cover, Lint Screen (Biscuit)
12
WPW10044480 Whirlpool Hinge Assembly
12
WPW10044470 Whirlpool Hinge Assembly
13
W11693756 Whirlpool Screw Assembly
14
3400859 Whirlpool Screw
15
3395683 Whirlpool Connector
16
Top (Biscuit)
16
Top
17
WPL 8316545
17
WP3957799 Whirlpool Knob
17
KNOB
18
WP3394427 Whirlpool Clip
19
Bumper, Lint Lid
20
3401144 Whirlpool Connector
21
WP3979618 Whirlpool Timer
22
3397695 Whirlpool Wire Harness
23
8539893 Whirlpool Wire Harness
24
Medallion
29
WPW10139210 Whirlpool Screw
30
WP357213 Whirlpool Hinge Stopper
31
Harness, Wiring
33
Connector, Timer
34
Block, Disconnect
35
WP94614 Whirlpool Terminal
39
WP3398095 Whirlpool Dryer Start Relay
40
WPL 8316549
40
WP8557455 Whirlpool Knob Timer
40
WP3957754 Whirlpool Knob Assembly
41
3936144 Whirlpool Connector
42
Bracket, Control
43
WPL 8532614
43
WPL 8532615
43
WPL 8532616
←
