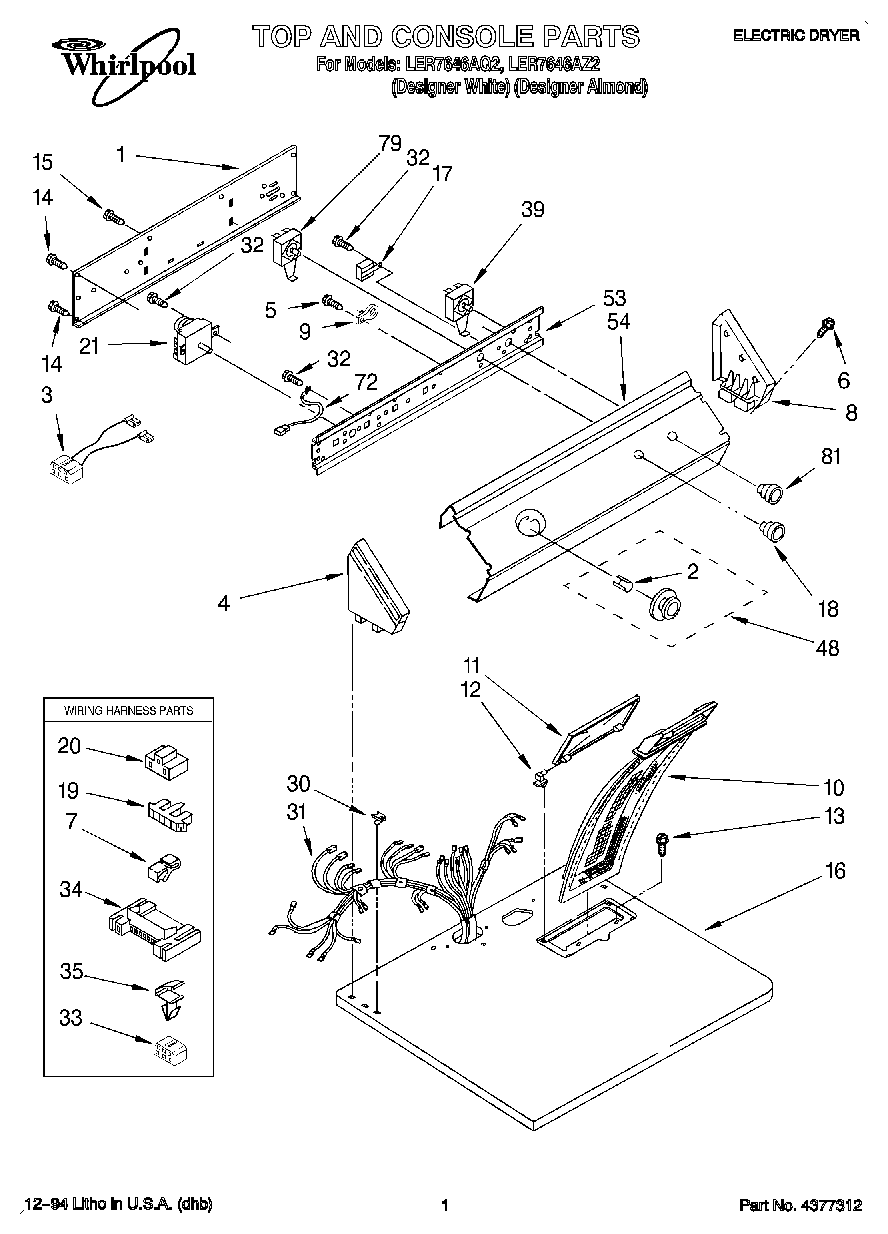

LER7646AZ2 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Dryer
	Almond (Uncut)
	Instructions, Installation
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Guide, Use & Care
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	Label, Wiring Diagram
1	Panel, Rear Console
2	WP688805 Whirlpool Spring Clip
3	8539893 Whirlpool Wire Harness
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Almond)
5	WP488729 Whirlpool Refrigerator Door Screw
6	WP388326 Whirlpool Screw
7	Clip, Retainer
8	Cap, End (R.H.) (Almond)
8	Cap, End (R.H.) (White)
9	279872 Whirlpool Resistor
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP489069 Whirlpool Compactor Screw
15	WP693995 Whirlpool Screw
16	Top (Almond)
16	Top (White)
17	WP694419 Whirlpool Buzzer Adjuster
18	WP3957796 Whirlpool Knob
18	3957797 Whirlpool Knob
19	Connector, Timer
20	3401144 Whirlpool Connector
21	WP3976574 Whirlpool Timer
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	WPW10139210 Whirlpool Screw
33	Block, Disconnect
34	3395683 Whirlpool Connector
35	WP3394427 Whirlpool Clip
39	WP3398094 Whirlpool Push To Start Switch
48	3957753 Whirlpool Knob
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
72	Wire, Ground
79	WP3399639 Whirlpool Switch
81	WP3957800 Whirlpool Knob
