LER7646EQ2 02 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL LIT3397618
WPL LIT3406071
WPL LIT3406692
Dryer
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun

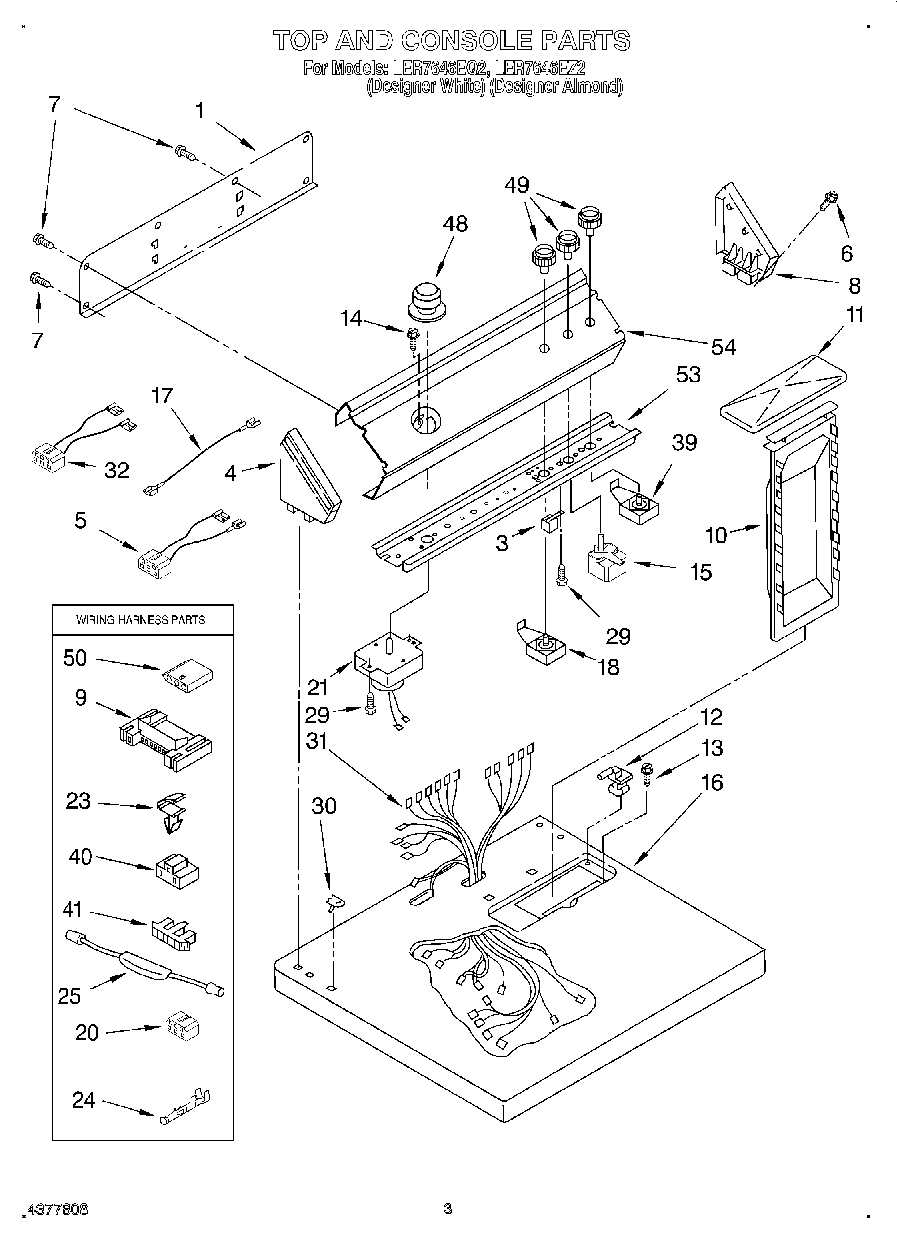

1Panel, Rear Console
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.)
53397695 Whirlpool Wire Harness
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8Cap, End (R.H.) (Almond)
8Cap, End (R.H.)
93395683 Whirlpool Connector
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
15WP3405156 Whirlpool Switch
16Top (Almond)
16Top (White)
17Wire, Jumper (Black)
18WP3399639 Whirlpool Switch
20Block, Disconnect
21WP3976580 Whirlpool Timer
23WP3394427 Whirlpool Clip
24WP94614 Whirlpool Terminal
25279872 Whirlpool Resistor
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
328539893 Whirlpool Wire Harness
39WP3398095 Whirlpool Dryer Start Relay
403401144 Whirlpool Connector
41Connector, Timer
48WP3957752 Whirlpool Knob
483957753 Whirlpool Knob
49WP3957796 Whirlpool Knob
493957797 Whirlpool Knob
503936144 Whirlpool Connector
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Almond)
