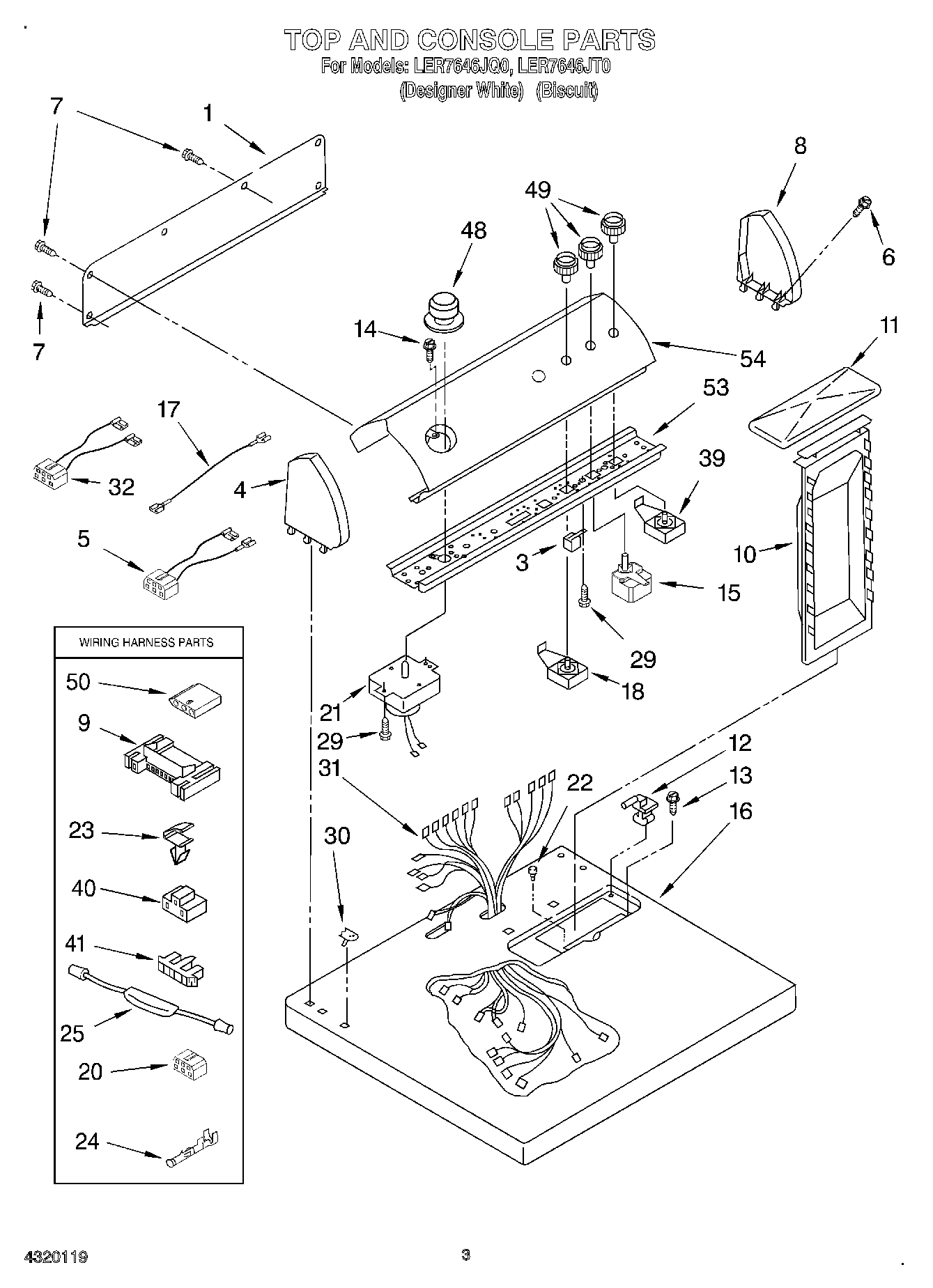

LER7646JT0 02 – SECTION

LER7646JT0 02 – SECTION

Written by

in

LER7646JT0 02 – SECTION

Products

PositionProduct
Dryer
1W10103406 Whirlpool Rear Panel
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (BIscuit)
53397695 Whirlpool Wire Harness
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8W10820038 Whirlpool Endcap
8WPL 8271362
93395683 Whirlpool Connector
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
11Cover, Lint Screen (Biscuit)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
15WP3405156 Whirlpool Switch
16Top
16Top (Biscuit)
17Wire, Jumper (Black)
18WP3399639 Whirlpool Switch
20Block, Disconnect
21WP8299766 Whirlpool Timer Assembly
22Bumper, Lint Lid
23WP3394427 Whirlpool Clip
24WP94614 Whirlpool Terminal
25279872 Whirlpool Resistor
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
328539893 Whirlpool Wire Harness
39WP3398095 Whirlpool Dryer Start Relay
403401144 Whirlpool Connector
41Connector, Timer
48WP3957754 Whirlpool Knob Assembly
48WP3957755 Whirlpool Knob
493957797 Whirlpool Knob
49WP3957799 Whirlpool Knob
503936144 Whirlpool Connector
53Bracket, Control
544392899 Whirlpool Biscuit Touch-Up Paint
54Panel, Control
54350938 Whirlpool Spray Gun
5472017 Whirlpool Appliance Touch-Up Paint White
54350930 Whirlpool White Spray Paint
544392901 Whirlpool Biscuit Spray Paint
54799344 Whirlpool Refrigerator Paint
54PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
54WPL 3977822
