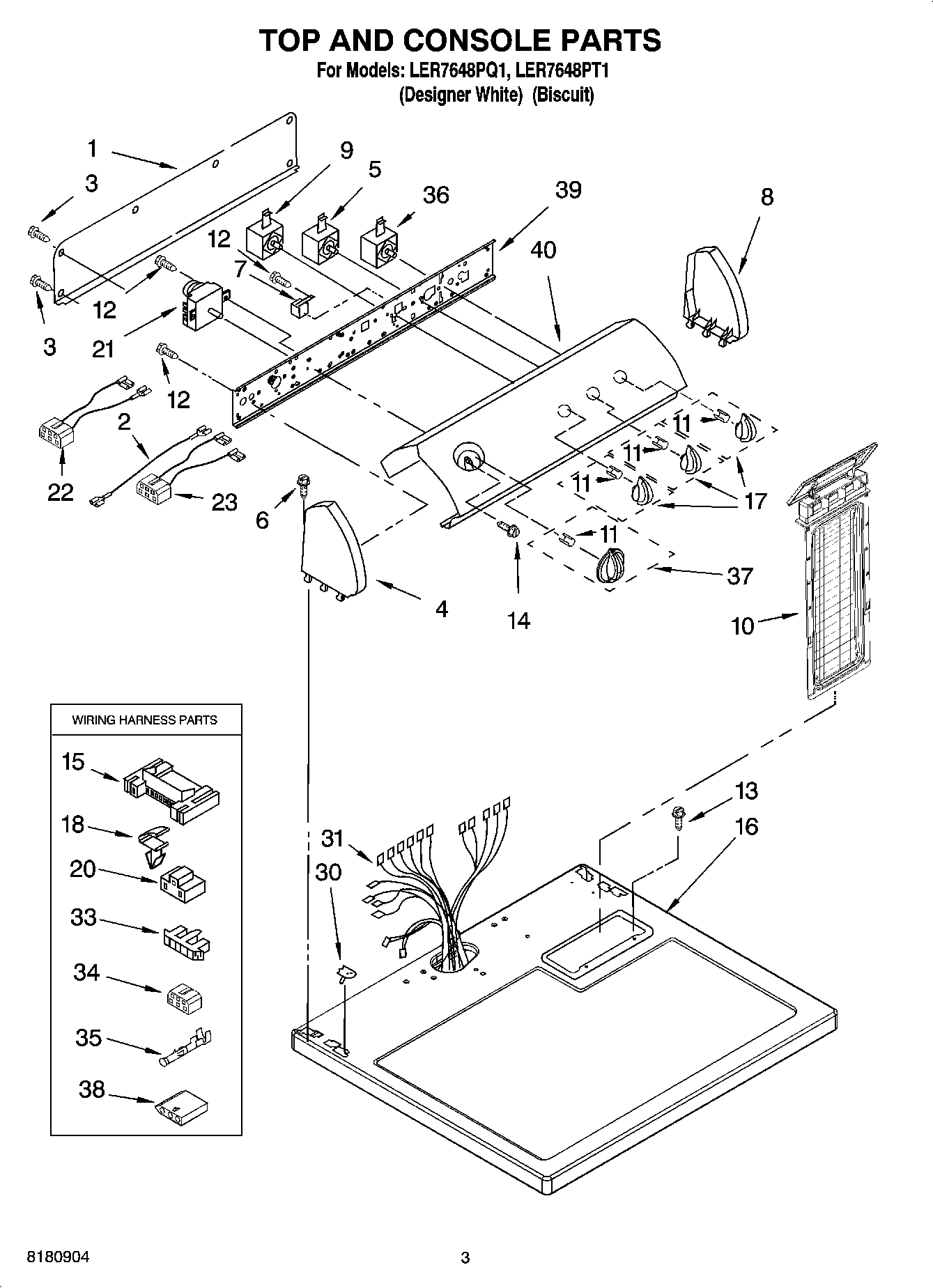

LER7648PT1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Wire, Jumper (Black)
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (BIscuit)
5WP3405156 Whirlpool Switch
6WP388326 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8WPL 8271362
8W10820038 Whirlpool Endcap
9WP3399639 Whirlpool Switch
10Screen, Lint (Biscuit)
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
16Top
17WPL 8544935
17WPL 8544936
18WP3394427 Whirlpool Clip
203401144 Whirlpool Connector
21WP3979618 Whirlpool Timer
223397695 Whirlpool Wire Harness
238539893 Whirlpool Wire Harness
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
33Connector, Timer
34Block, Disconnect
35WP94614 Whirlpool Terminal
36WP3398095 Whirlpool Dryer Start Relay
37Timer Knob Assembly (Biscuit)
37W10756270 Whirlpool Dryer Timer Knob
383936144 Whirlpool Connector
39Bracket, Control
40Panel, Control (White)
40Panel, Contr
