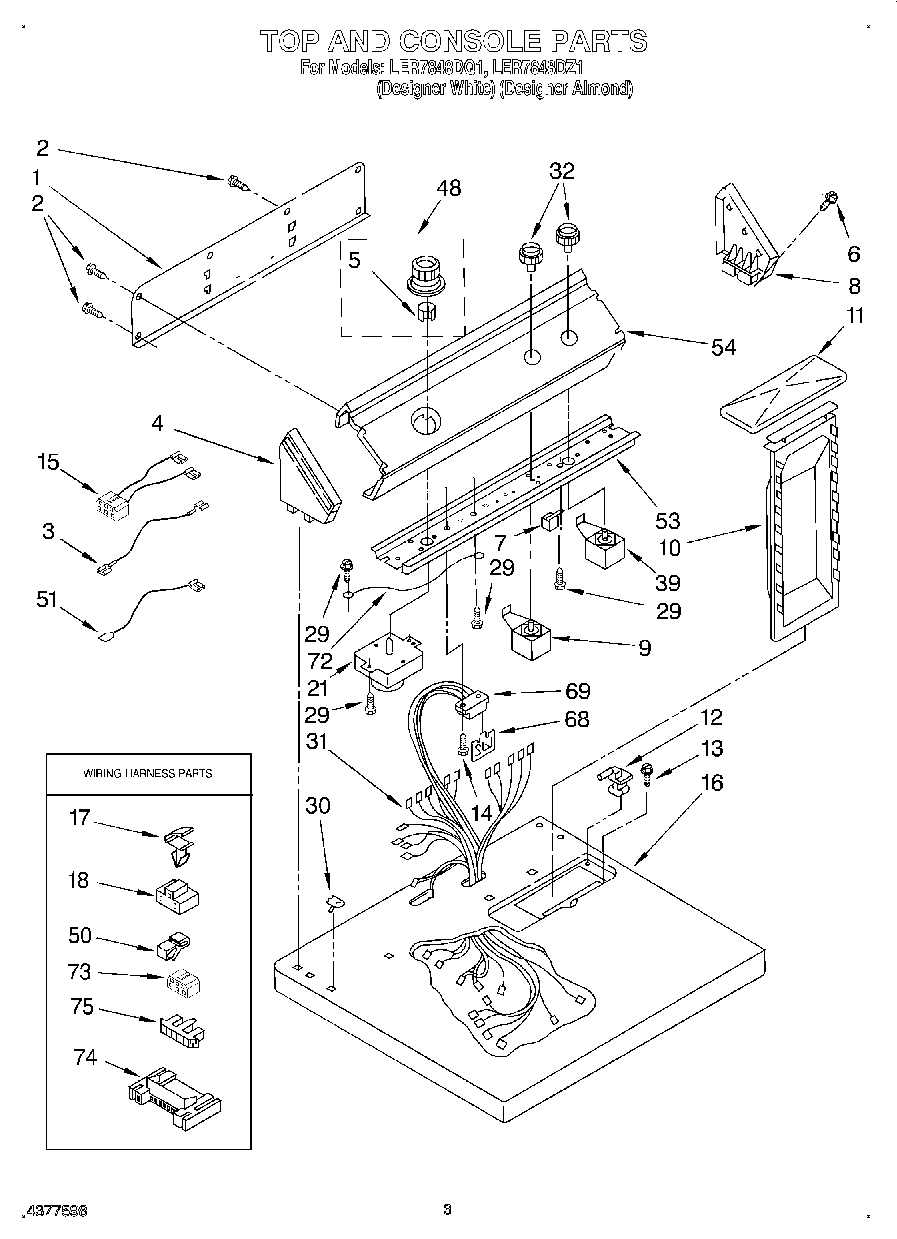

LER7848DQ1 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Guide, Use & Care
	Instructions, Installation
	Dryer
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	WPL LIT3401725
1	Panel, Rear Console
2	WP693995 Whirlpool Screw
3	Wire, Jumper (Black)
4	Cap, End (L.H.)
4	Cap, End (L.H.) (Almond)
5	WP688805 Whirlpool Spring Clip
6	WP388326 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	Cap, End (R.H.) (Almond)
8	Cap, End (R.H.)
9	WP3399639 Whirlpool Switch
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	SCREW
15	8539893 Whirlpool Wire Harness
16	Top (Almond)
16	Top (White)
17	WP3394427 Whirlpool Clip
18	3401144 Whirlpool Connector
21	WP3397273 Whirlpool Timer
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Electric
32	WP3957796 Whirlpool Knob
32	3957797 Whirlpool Knob
39	WP3398095 Whirlpool Dryer Start Relay
48	WP3957752 Whirlpool Knob
48	3957753 Whirlpool Knob
50	Clip, Retainer
51	Wire, Jumper (White)
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
68	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
69	3391885 Whirlpool Connector
72	Wire, Ground
73	Block, Disconnect
74	3395683 Whirlpool Connector
75	Connector, Timer
