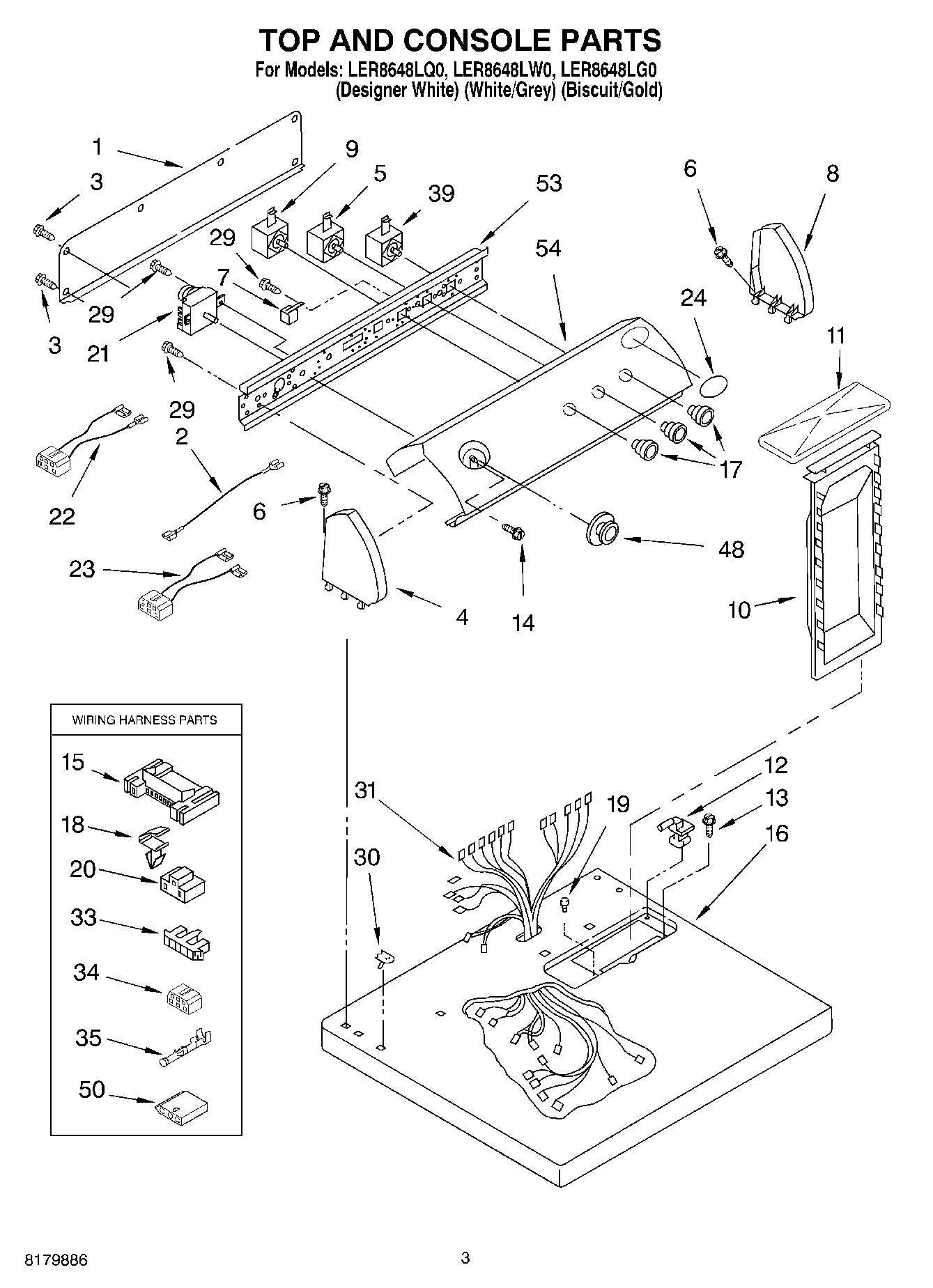

LER8648LQ0 02 – SECTION

Products

Position	Product
1	W10103406 Whirlpool Rear Panel
2	Wire, Jumper (Black)
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.) (BIscuit)
5	WP3405156 Whirlpool Switch
6	WP388326 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	W10820038 Whirlpool Endcap
8	WPL 8271362
9	WP3399639 Whirlpool Switch
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
11	Cover, Lint Screen (Biscuit)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top
16	Top (Biscuit)
17	KNOB
17	WP3957799 Whirlpool Knob
17	WPL 8316545
18	WP3394427 Whirlpool Clip
19	Bumper, Lint Lid
20	3401144 Whirlpool Connector
21	WP3979618 Whirlpool Timer
22	3397695 Whirlpool Wire Harness
23	8539893 Whirlpool Wire Harness
24	Medallion
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
33	Connector, Timer
34	Block, Disconnect
35	WP94614 Whirlpool Terminal
39	WP3398095 Whirlpool Dryer Start Relay
48	WP3957754 Whirlpool Knob Assembly
48	WP8557455 Whirlpool Knob Timer
48	WPL 8316549
50	3936144 Whirlpool Connector
53	Bracket, Control
54	WPL 8532628
54	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
54	WPL 8532643
54	W11224254 Whirlpool Test Kit
54	WPL 8532627
54	799344 Whirlpool Refrigerator Paint
54	350930 Whirlpool White Spray Paint
54	350938 Whirlpool Spray Gun
54	3406839 Whirlpool Drying Rack
54	72017 Whirlpool Appliance Touch-Up Paint White
54	4392901 Whirlpool Biscuit Spray Paint
54	4392899 Whirlpool Biscuit Touch-Up Paint
54	4392065 Whirlpool Dryer Maintenance Kit
