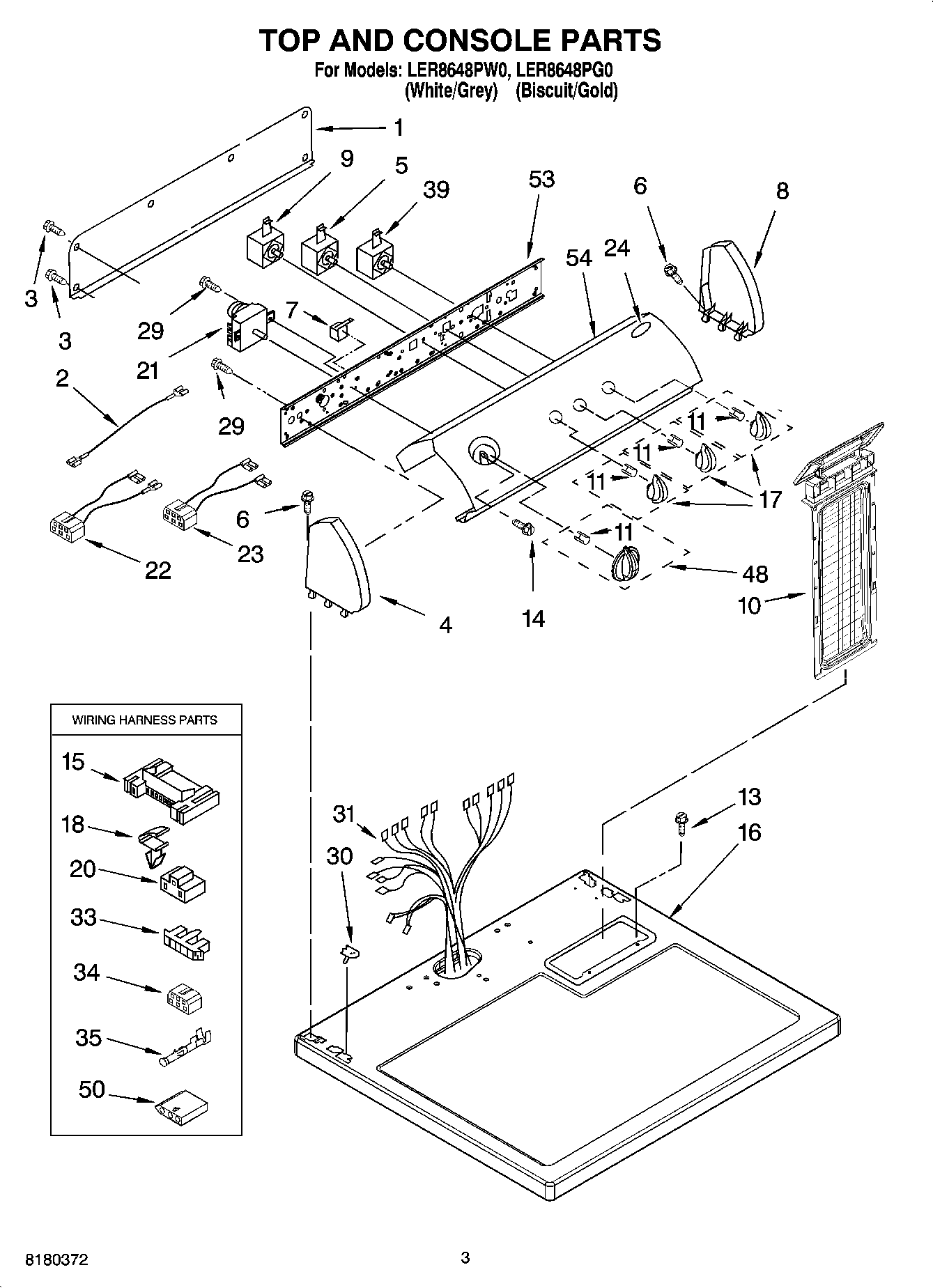

LER8648PW0 02 – TOP AND CONSOLE PARTS OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
1	W10103406 Whirlpool Rear Panel
2	Wire, Jumper (Black)
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.) (BIscuit)
5	WP3405156 Whirlpool Switch
6	WP388326 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	WPL 8271362
8	W10820038 Whirlpool Endcap
9	WP3399639 Whirlpool Switch
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
10	Screen, Lint (Biscuit)
11	WP8536939 Whirlpool Spring Clip
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top
16	Top
17	WPL 8544937
17	WPL 8544938
18	WP3394427 Whirlpool Clip
20	3401144 Whirlpool Connector
21	WP3979618 Whirlpool Timer
22	3397695 Whirlpool Wire Harness
23	8539893 Whirlpool Wire Harness
24	WPL 3400985
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
33	Connector, Timer
34	Block, Disconnect
35	WP94614 Whirlpool Terminal
39	WP3398095 Whirlpool Dryer Start Relay
48	WPL 8544958
48	WPL 8544957
50	3936144 Whirlpool Connector
53	Bracket, Control
54	WPL 8545978
54	WPL 8545977
54	799344 Whirlpool Refrigerator Paint
54	350938 Whirlpool Spray Gun
54	72017 Whirlpool Appliance Touch-Up Paint White
54	W11224254 Whirlpool Test Kit
54	350930 Whirlpool White Spray Paint
54	4392899 Whirlpool Biscuit Touch-Up Paint
54	4392901 Whirlpool Biscuit Spray Paint
54	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
54	3406839 Whirlpool Drying Rack
54	4392065 Whirlpool Dryer Maintenance Kit
54	WPL ARI117742A
