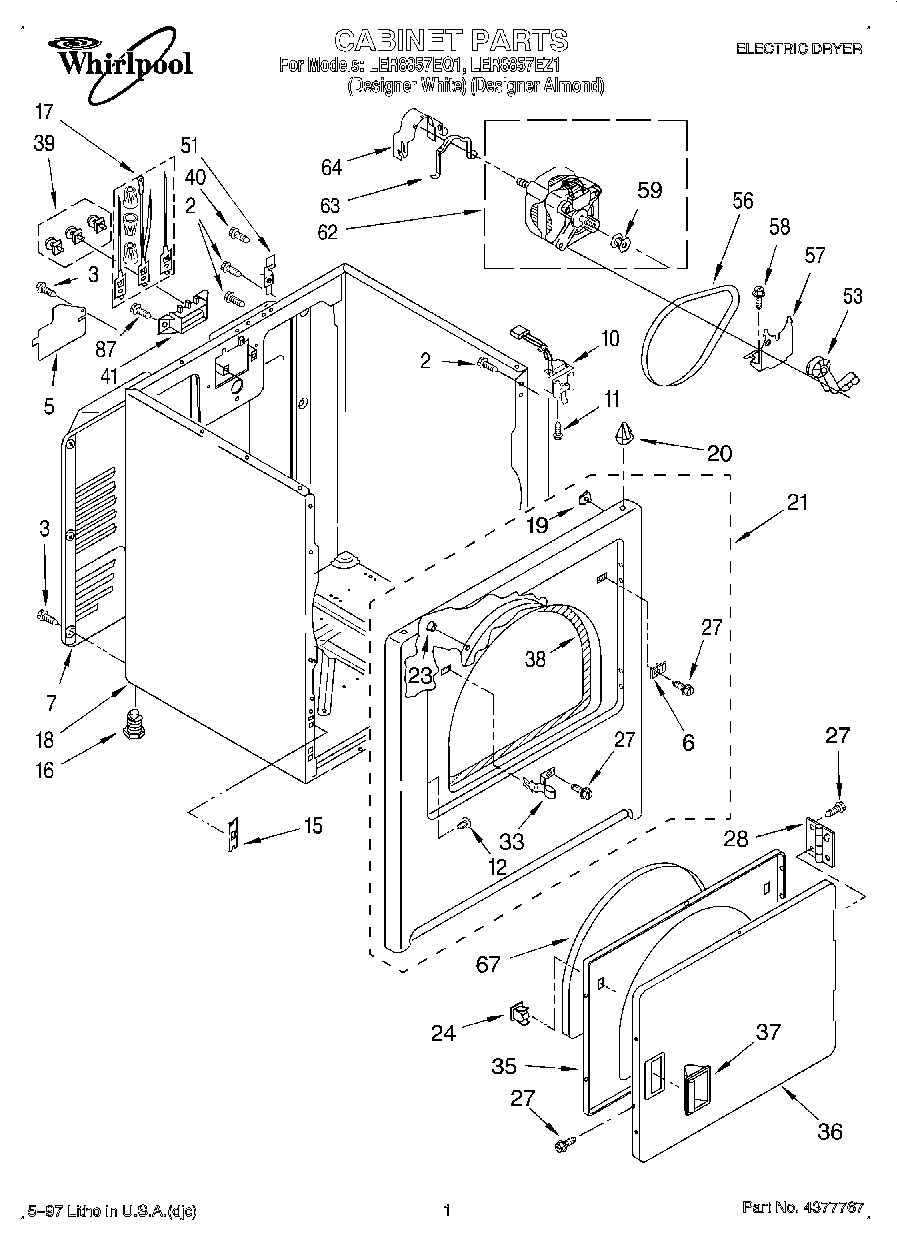

LER8857EZ1 01 – SECTION

Products

PositionProduct
2SCREW
3WP693995 Whirlpool Screw
5W11539855 Whirlpool Refrigerator Pump
6WP3403630 Whirlpool Plug
7280043 Whirlpool Rear Panel
10WP3406105 Whirlpool Door Switch
11WP3395530 Whirlpool Screw
12WP3404413 Whirlpool Plug
12Plug, Hinge Hole (4) (Almond)
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
17279318 Whirlpool Terminal
18Cabinet (Includes Illus. Nos. 5, 7, 15, 16 & 57) (White)
18Cabinet (Includes Illus. Nos. 5, 7, 15, 16, 41, & 57) (Almond)
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Panel, Front
21Front Panel Assembly (Almond)
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
33W11429589 Whirlpool Strike
35WP3402341 Whirlpool Door
36Door, Front (Almond)
36W10861227 Whirlpool Door Assembly
37Handle, Door (Almond)
37WP3405184 Whirlpool White Door Handle
38W11035878 Whirlpool Bearing and Seal
39279393 Whirlpool Terminal Block Screw and Nut Kit
40W10850756 Whirlpool Screw
41WP3397659 Whirlpool Terminal Block
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59WP8066184 Whirlpool Dryer Motor Pulley
62279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
64WP3404162 Whirlpool Clamp
67SEAL-DOOR DRYER
87WP308685 Whirlpool Microwave Screw
