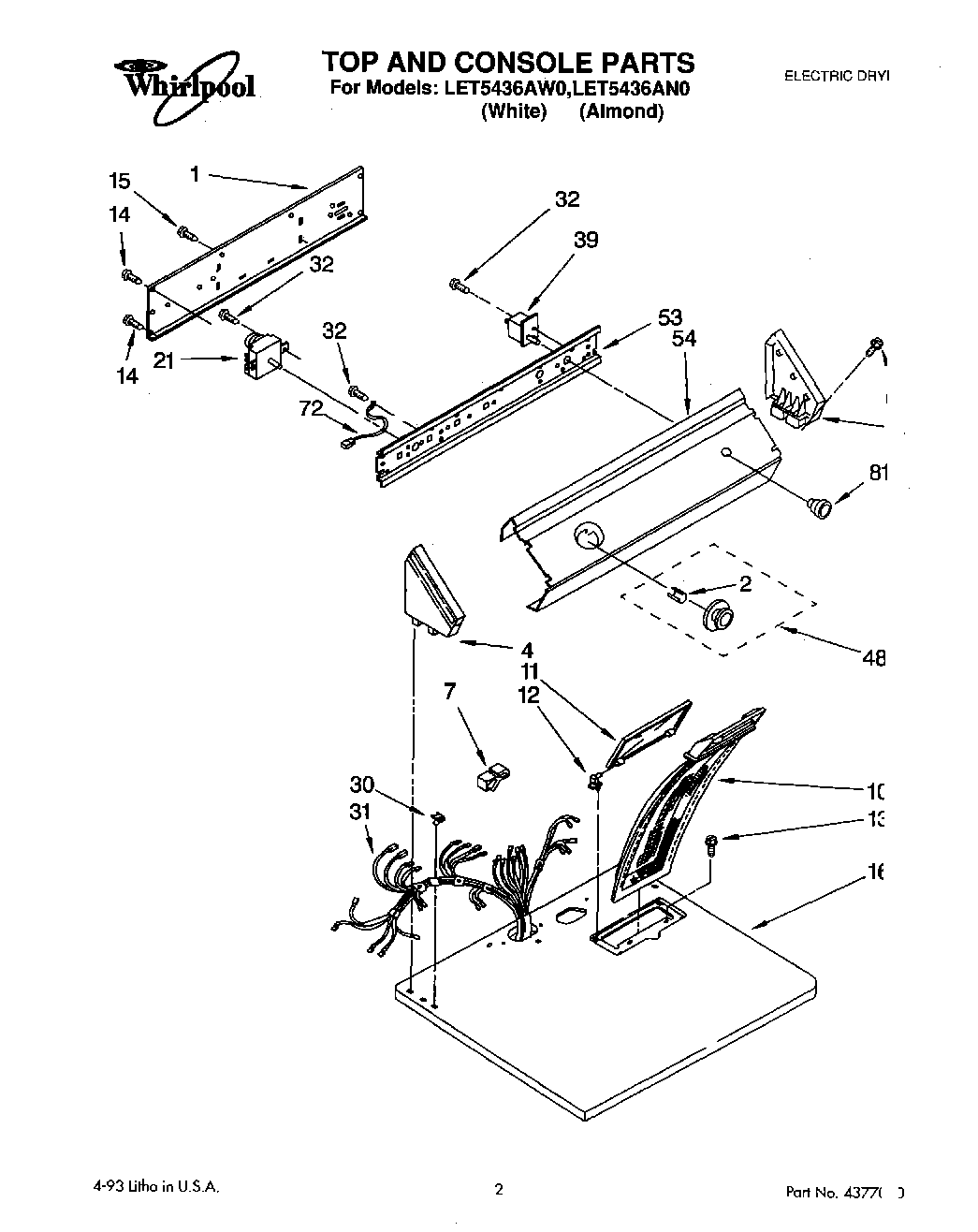

LET5436AW0 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	List, Service Parts
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	Use & Care Guide
	799344 Whirlpool Refrigerator Paint
	Instructions, Installation
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	Dryer
1	Panel, Rear Console
2	WP688805 Whirlpool Spring Clip
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Almond)
6	WP388326 Whirlpool Screw
7	Clip, Retainer
8	Cap, End (R.H.) (Almond)
8	Cap, End (R.H.) (White)
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP489069 Whirlpool Compactor Screw
15	WP693995 Whirlpool Screw
16	Top (Almond)
16	Top (White)
21	Timer Assembly, 60 Hz.
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
31	279320 Whirlpool Dryer Rear Terminal Block Kit
32	WPW10139210 Whirlpool Screw
39	Switch, Push-To-Start
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
72	Wire, Ground
81	Knob, Push-To-Start
