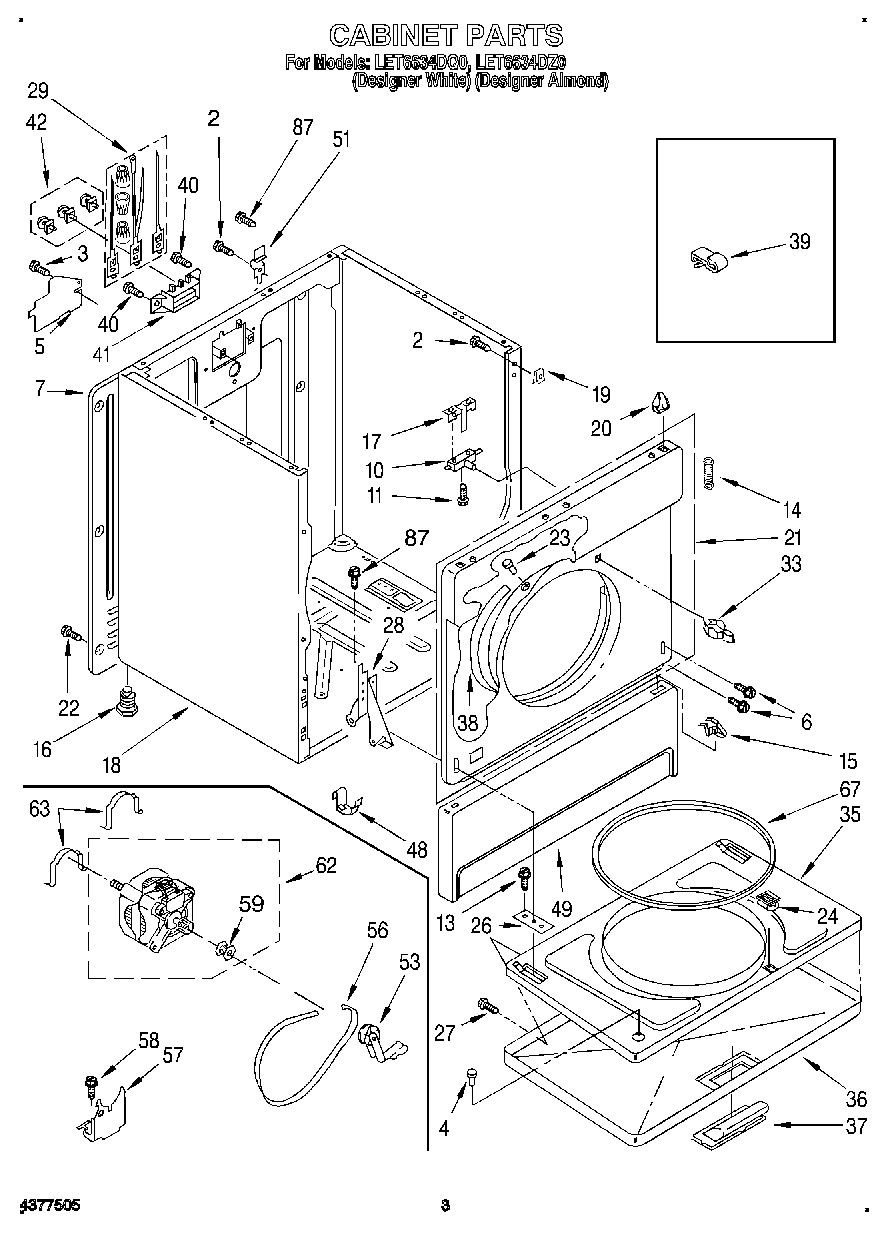

LET6634DQ0 02 – SECTION

Products

PositionProduct
2SCREW
4238614 Whirlpool Bumper Hinge
5W11539855 Whirlpool Refrigerator Pump
6Screw, 10-32 x 1/2
7280040 Whirlpool Rear Panel
10W10820036 Whirlpool Door Switch Kit
11WP98129 Whirlpool Screw
13WP308685 Whirlpool Microwave Screw
14Spring, Door (2)
15WP3388229 Whirlpool Dryer Spring Clip
1649621 Whirlpool Leveling Feet
17WP691581 Whirlpool Actuator
18Cabinet (White (Includes Illus. Nos. 5, 7, 16, 41, and 57))
18Cabinet (Includes Illus. Nos.5,7,16,41, And 57.) (Almond)
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Front Panel Assembly (Almond)
21Front Panel Assembly (White)
22WP693995 Whirlpool Screw
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
26W11252547 Whirlpool Clip Assembly
27WP694091 Whirlpool Screw
28Hinge, R.H.
28Hinge, L.H.
29279318 Whirlpool Terminal
35Door, Rear
36Door, Front (Almond)
36Door, Front (White)
37Handle, Door (Almond)
37WP348721 Whirlpool Handle
38279264 Whirlpool Bearing and Seal Kit
39Clip, Retainer
41279320 Whirlpool Dryer Rear Terminal Block Kit
42279393 Whirlpool Terminal Block Screw and Nut Kit
48WP297092 Whirlpool Clip
49Panel, Toe (White)
49Panel, Toe (Almond)
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59WP8066184 Whirlpool Dryer Motor Pulley
62279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
67WP3390733 Whirlpool Door Seal Assembly
87W10850756 Whirlpool Screw
