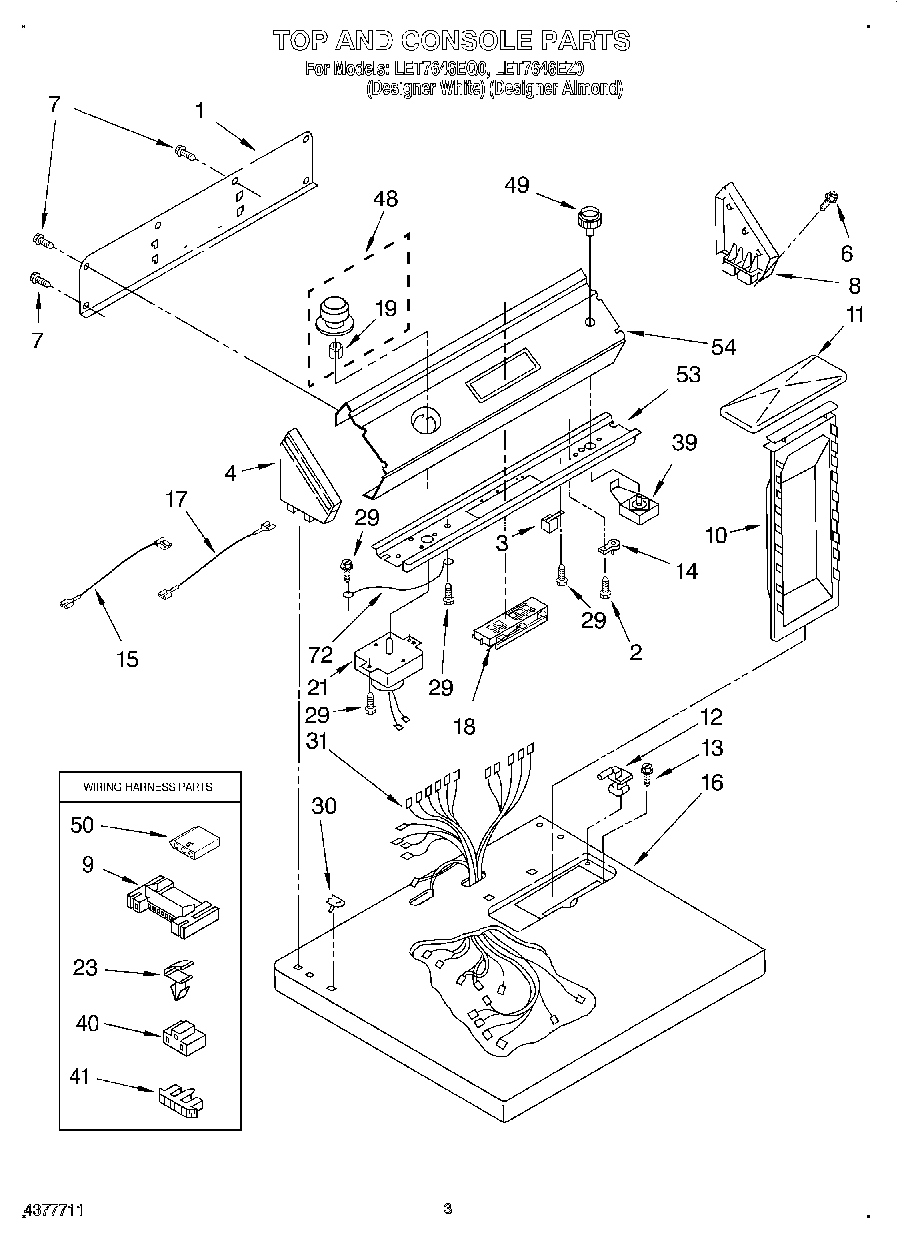

LET7646EZ0 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL LIT3397618
	Dryer
	WPL LIT3405515
	Almond (Uncut)
	WPL LIT3401735
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	WP488729 Whirlpool Refrigerator Door Screw
3	WP694419 Whirlpool Buzzer Adjuster
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.)
6	WP388326 Whirlpool Screw
7	WP693995 Whirlpool Screw
8	Cap, End (R.H.)
8	Cap, End (R.H.) (Almond)
9	3395683 Whirlpool Connector
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	279872 Whirlpool Resistor
15	Wire, Jumper (Violet)
15	Wire, Jumper (White)
15	Wire, Jumper (Blue)
16	Top (Almond)
16	Top (White)
17	Wire, Jumper (Yellow)
17	Wire, Jumper (Black)
18	Switch, Clean Touch (White)
18	Switch, Clean Touch (Almond)
19	WP688805 Whirlpool Spring Clip
21	WP3976580 Whirlpool Timer
23	WP3394427 Whirlpool Clip
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	WP3398095 Whirlpool Dryer Start Relay
40	3401144 Whirlpool Connector
41	Connector, Timer
48	WP3957752 Whirlpool Knob
48	3957753 Whirlpool Knob
49	3957797 Whirlpool Knob
49	WP3957796 Whirlpool Knob
50	Connector (Door Switch)
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
72	Wire, Ground
