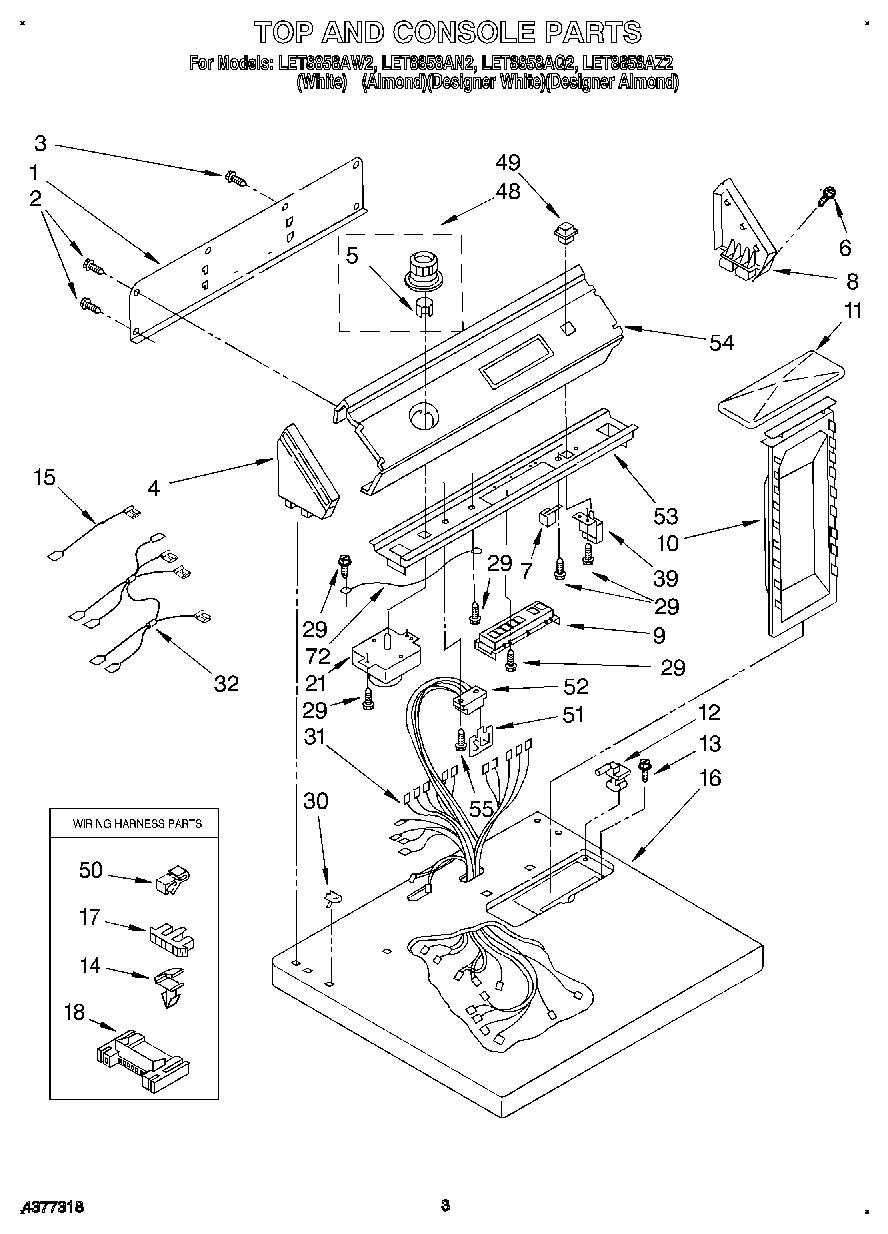

LET8858AN2 02 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
Instructions, Installation
Guide, Use & Care
Dryer
WPL LIT3401725
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
1Panel, Rear Console
2WP489069 Whirlpool Compactor Screw
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.) (White)
5WP688805 Whirlpool Spring Clip
6WP388326 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8Cap, End (R.H.) (White)
8Cap, End (R.H.) (Almond)
9LGT8858AQ1
9LGT8858AZ1
9Switch, Clean-Touch
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP3394427 Whirlpool Clip
15Wire, Jumper (Violet)
15Wire, Jumper (Blue)
16Top (White)
16Top (Almond)
17Connector, Timer
183395683 Whirlpool Connector
21WP3397273 Whirlpool Timer
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Electric
32Wire, Jumper (Signal Bypass)
39Relay, Push-To-Start
483957753 Whirlpool Knob
48WP3957752 Whirlpool Knob
49Button, Push To Start
49LGT8858AQ1
49LGT8858AZ1
50Clip, Retainer
51WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
523391885 Whirlpool Connector
53Bracket, Control
54Panel, Control FOR MODELS (LGT8858AQ1)
54Panel, Control (Almond)
54Panel, Control (White)
54Panel, Control FOR MODELS (LGT8858AZ1)
55SCREW
72Wire, Ground
