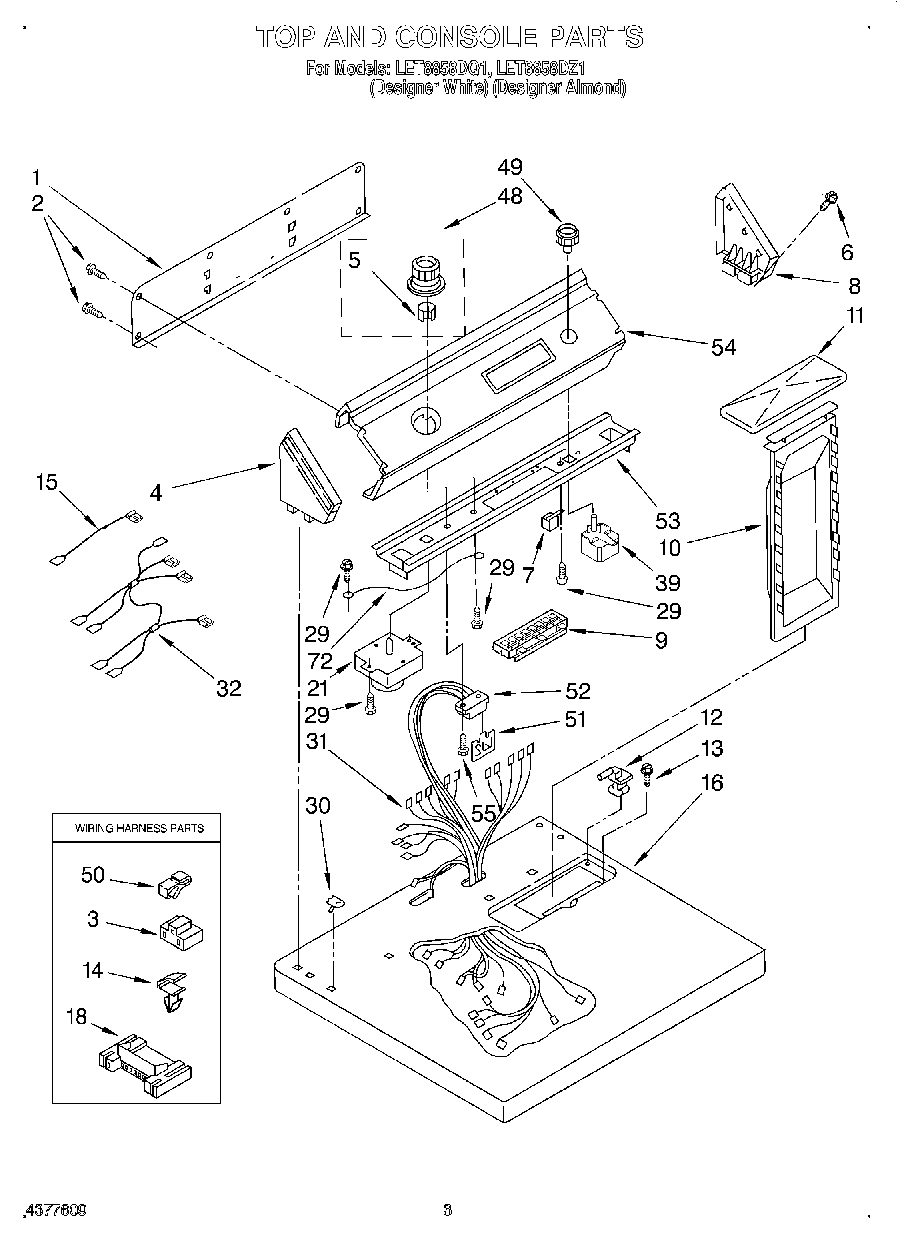

LET8858DZ1 02 – SECTION
Written by
in
LET8858DZ1 02 – SECTION
Products
Position
Product
350930 Whirlpool White Spray Paint
Guide, Use & Care
Instructions, Installation
Dryer
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
WPL LIT3401725
1
Panel, Rear Console
2
WP693995 Whirlpool Screw
3
3401144 Whirlpool Connector
4
Cap, End (L.H.)
4
Cap, End (L.H.) (Almond)
5
WP688805 Whirlpool Spring Clip
6
WP388326 Whirlpool Screw
7
WP694419 Whirlpool Buzzer Adjuster
8
Cap, End (R.H.) (Almond)
8
Cap, End (R.H.)
9
Switch, Clean-Touch (Almond)
9
Switch, Clean Touch (White)
10
WP349639 Whirlpool Lint Filter
11
Cover, Lint Screen (Almond)
11
Cover, Lint Screen (White)
12
WPW10044480 Whirlpool Hinge Assembly
12
WPW10044470 Whirlpool Hinge Assembly
13
W11693756 Whirlpool Screw Assembly
14
WP3394427 Whirlpool Clip
15
Wire, Jumper (Blue)
15
Wire, Jumper (Violet)
16
Top (Almond)
16
Top (White)
18
3395683 Whirlpool Connector
21
WP3397273 Whirlpool Timer
29
WPW10139210 Whirlpool Screw
30
WP357213 Whirlpool Hinge Stopper
31
279320 Whirlpool Dryer Rear Terminal Block Kit
31
Harness, Electric
32
Wire, Jumper (Signal Bypass)
39
WP3398094 Whirlpool Push To Start Switch
48
WP3957752 Whirlpool Knob
48
3957753 Whirlpool Knob
49
WP3957800 Whirlpool Knob
50
Clip, Retainer
51
WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
52
3391885 Whirlpool Connector
53
Bracket, Control
54
Panel, Control (White)
54
Panel, Control (Almond)
55
SCREW
72
Wire, Ground
←
