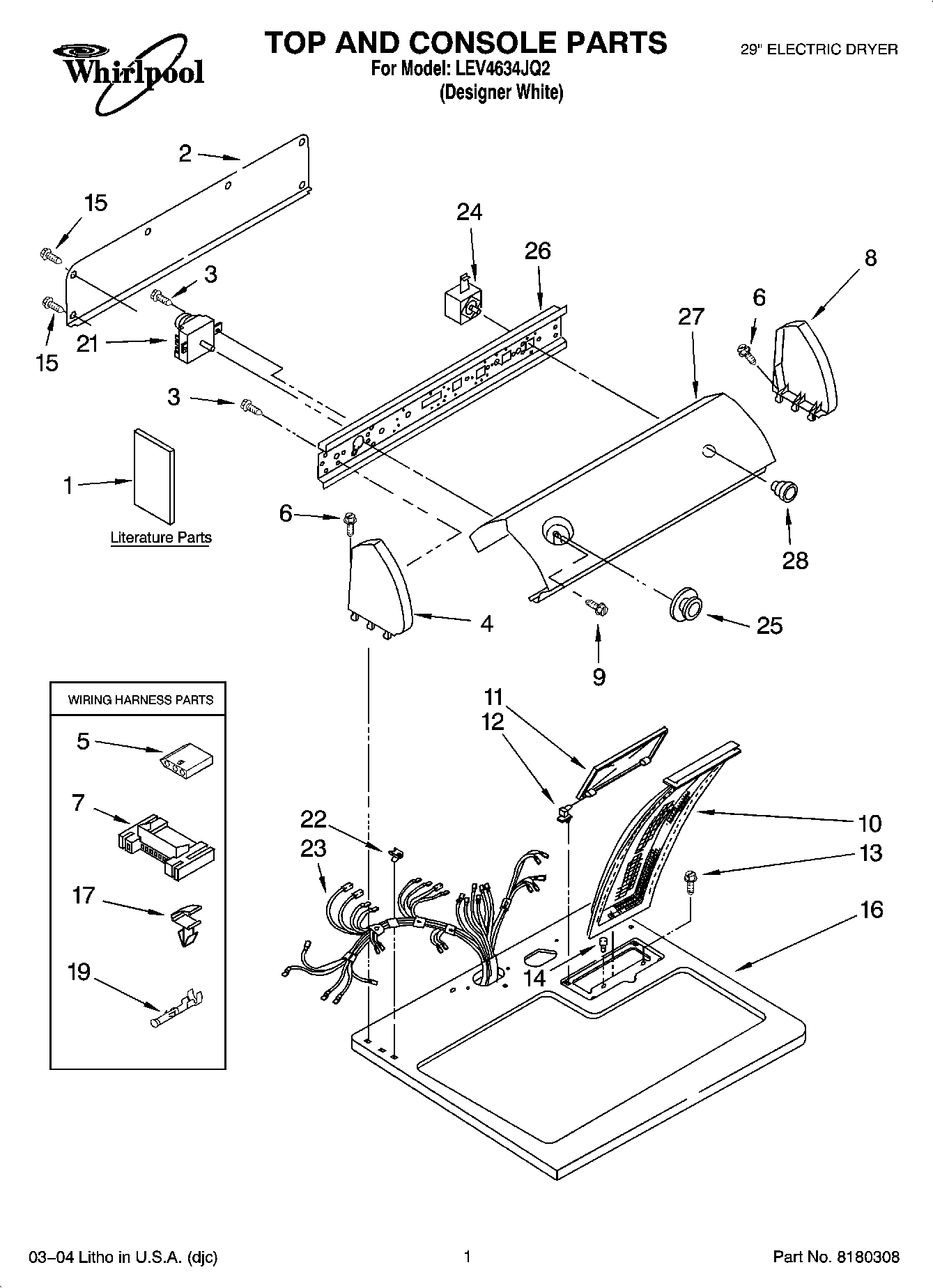

LEV4634JQ2 01 – TOP AND CONSOLE PARTS

LEV4634JQ2 01 – TOP AND CONSOLE PARTS

Written by

in

LEV4634JQ2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Literature Parts (Label, Wiring Diagram)
1Literature Parts (Installation Instructions)
1DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Sheet, Cycle Feature)
1Following May Be Purchased
1Dryer
1Literature Parts (Use & Care Guide)
2W10103406 Whirlpool Rear Panel
3WPW10139210 Whirlpool Screw
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73395683 Whirlpool Connector
8W10820038 Whirlpool Endcap
93400859 Whirlpool Screw
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Bumper, Lint Lid
15WP693995 Whirlpool Screw
16Top
17WP3394427 Whirlpool Clip
19WP94614 Whirlpool Terminal
21WP8299778 Whirlpool Timer
22WP357213 Whirlpool Hinge Stopper
23WPW10450292 Whirlpool Wire Harness
24WP3977456 Whirlpool Start Switch
25WP3957754 Whirlpool Knob Assembly
26Bracket, Control
27Panel, Control (White)
283957804 Whirlpool Knob
28WP689790 Whirlpool Dryer Rack
28350930 Whirlpool White Spray Paint
28W11224254 Whirlpool Test Kit
284392065 Whirlpool Dryer Maintenance Kit
28799344 Whirlpool Refrigerator Paint
2872017 Whirlpool Appliance Touch-Up Paint White
28350938 Whirlpool Spray Gun
28ACCESSORY PARTS
