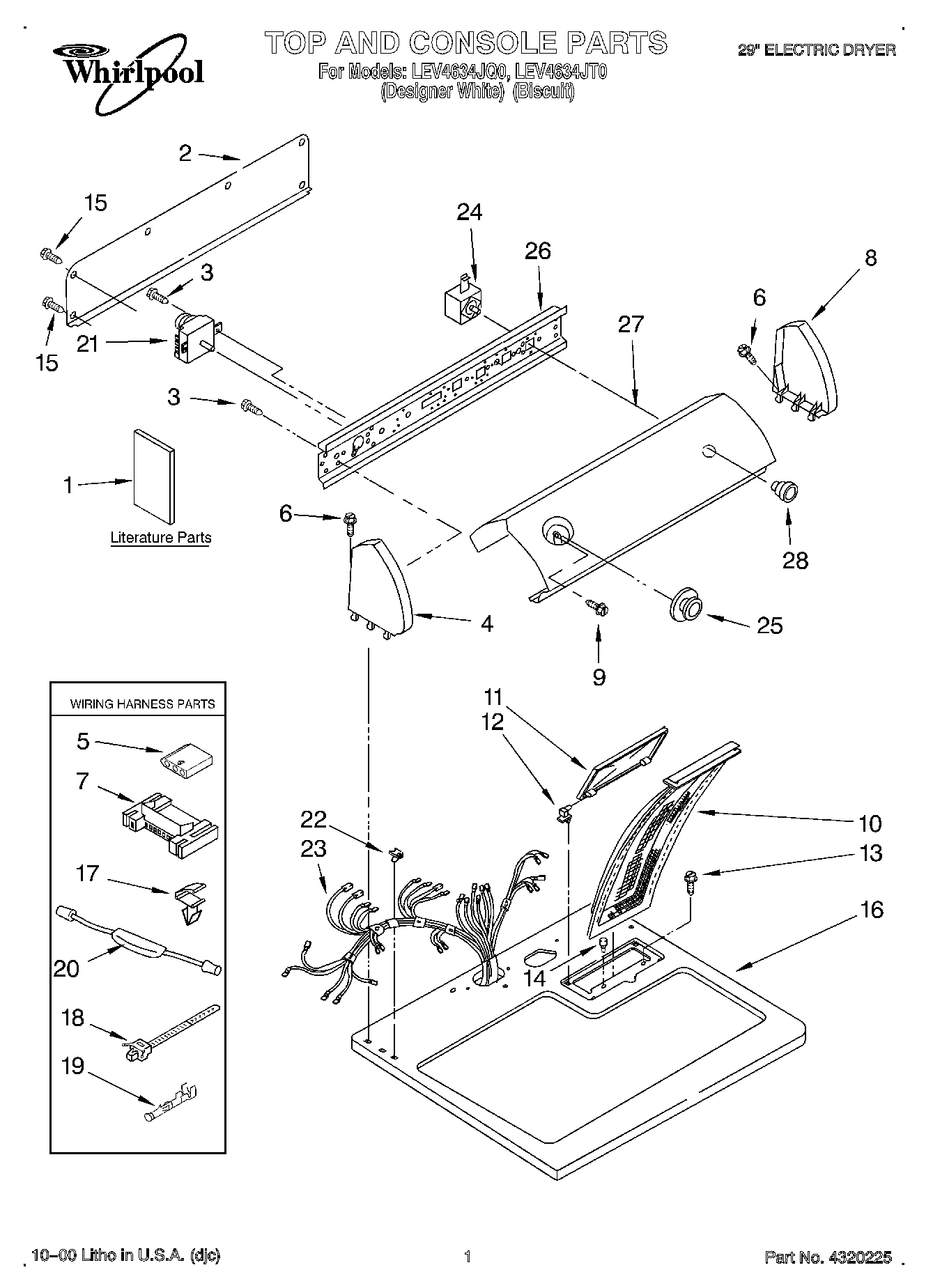

LEV4634JT0 01 – SECTION

Products

PositionProduct
Dryer
1Literature Parts (Use And care Guide)
1Label, Wiring Diagram
1Literature Parts (Installation Instructions)
2W10103406 Whirlpool Rear Panel
3WPW10139210 Whirlpool Screw
4Cap, End (L.H.) (BIscuit)
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73395683 Whirlpool Connector
8W10820038 Whirlpool Endcap
8WPL 8271362
93400859 Whirlpool Screw
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen
11Cover, Lint Screen (Biscuit)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Bumper, Lint Lid
15WP693995 Whirlpool Screw
16Top (Biscuit)
16Top
17WP3394427 Whirlpool Clip
18Tie, Cable
19WP94614 Whirlpool Terminal
20279872 Whirlpool Resistor
21WP3976584 Whirlpool Timer Assembly
22WP357213 Whirlpool Hinge Stopper
23Harness, Wiring
24WP3977456 Whirlpool Start Switch
25WP3957755 Whirlpool Knob
25WP3957754 Whirlpool Knob Assembly
26Bracket, Control
27Panel, Control (Biscuit)
27Panel, Control (White)
28799344 Whirlpool Refrigerator Paint
28WPL 8271349
283957804 Whirlpool Knob
28WP689790 Whirlpool Dryer Rack
28PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
284392901 Whirlpool Biscuit Spray Paint
284392899 Whirlpool Biscuit Touch-Up Paint
28350930 Whirlpool White Spray Paint
2872017 Whirlpool Appliance Touch-Up Paint White
28350938 Whirlpool Spray Gun
