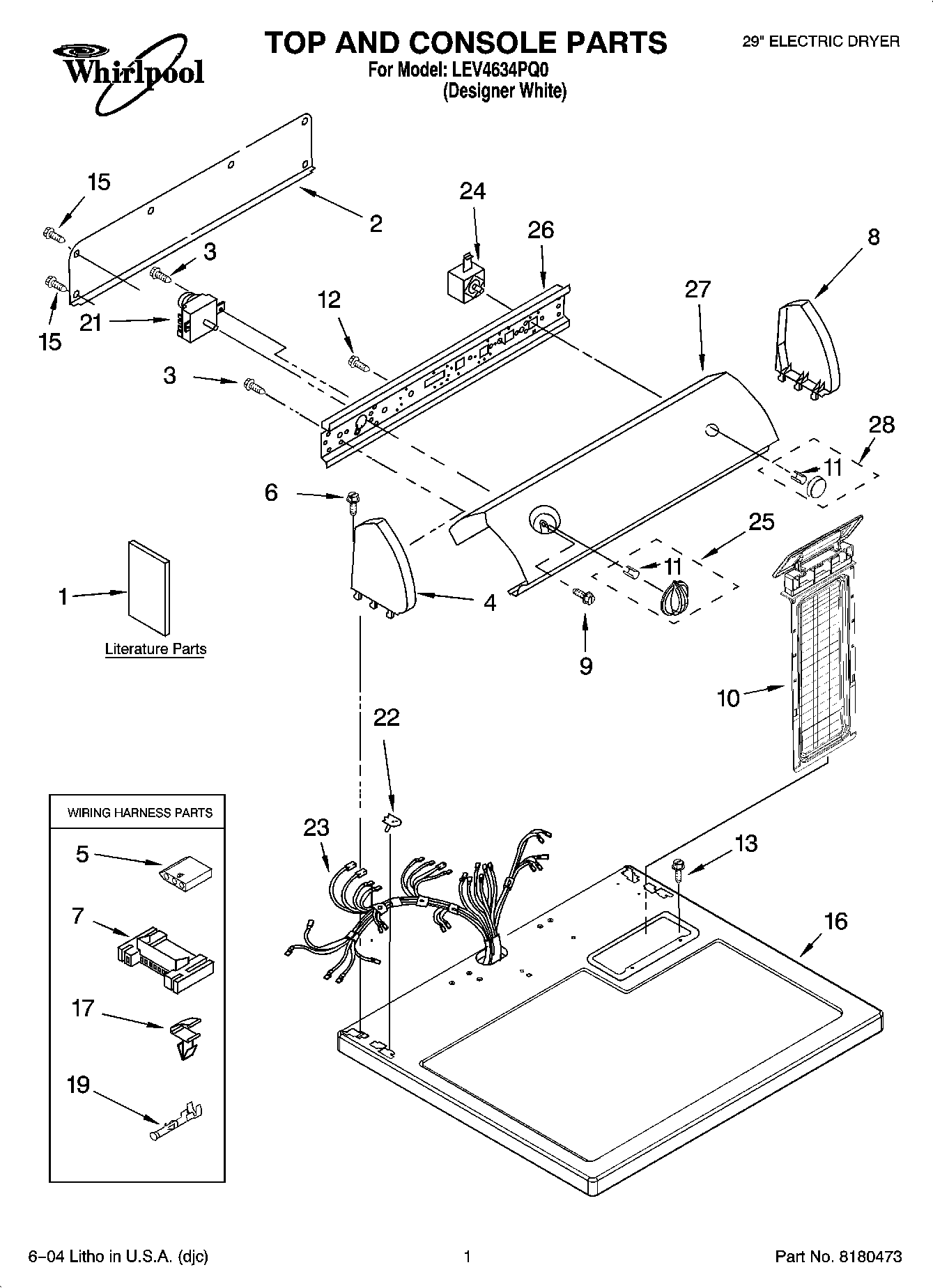

LEV4634PQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	DO-IT-YOURSELF REPAIR MANUALS
1	Wiring Diagram
1	Installation Instructions
1	Use & Care Guide
1	Sheet, Cycle Feature
1	Following May Be Purchased
1	WPL 677818
2	W10103406 Whirlpool Rear Panel
3	WPW10139210 Whirlpool Screw
5	3936144 Whirlpool Connector
6	WP388326 Whirlpool Screw
7	3395683 Whirlpool Connector
8	W10820038 Whirlpool Endcap
9	3400859 Whirlpool Screw
10	W10874409 Whirlpool Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
15	WP693995 Whirlpool Screw
16	Top
17	WP3394427 Whirlpool Clip
19	WP94614 Whirlpool Terminal
21	WP8299778 Whirlpool Timer
22	WP357213 Whirlpool Hinge Stopper
23	WPW10450292 Whirlpool Wire Harness
24	WP3977456 Whirlpool Start Switch
25	W10756270 Whirlpool Dryer Timer Knob
26	Bracket, Control
27	Panel, Control (White)
28	WP8544939 Whirlpool Knob Assembly
