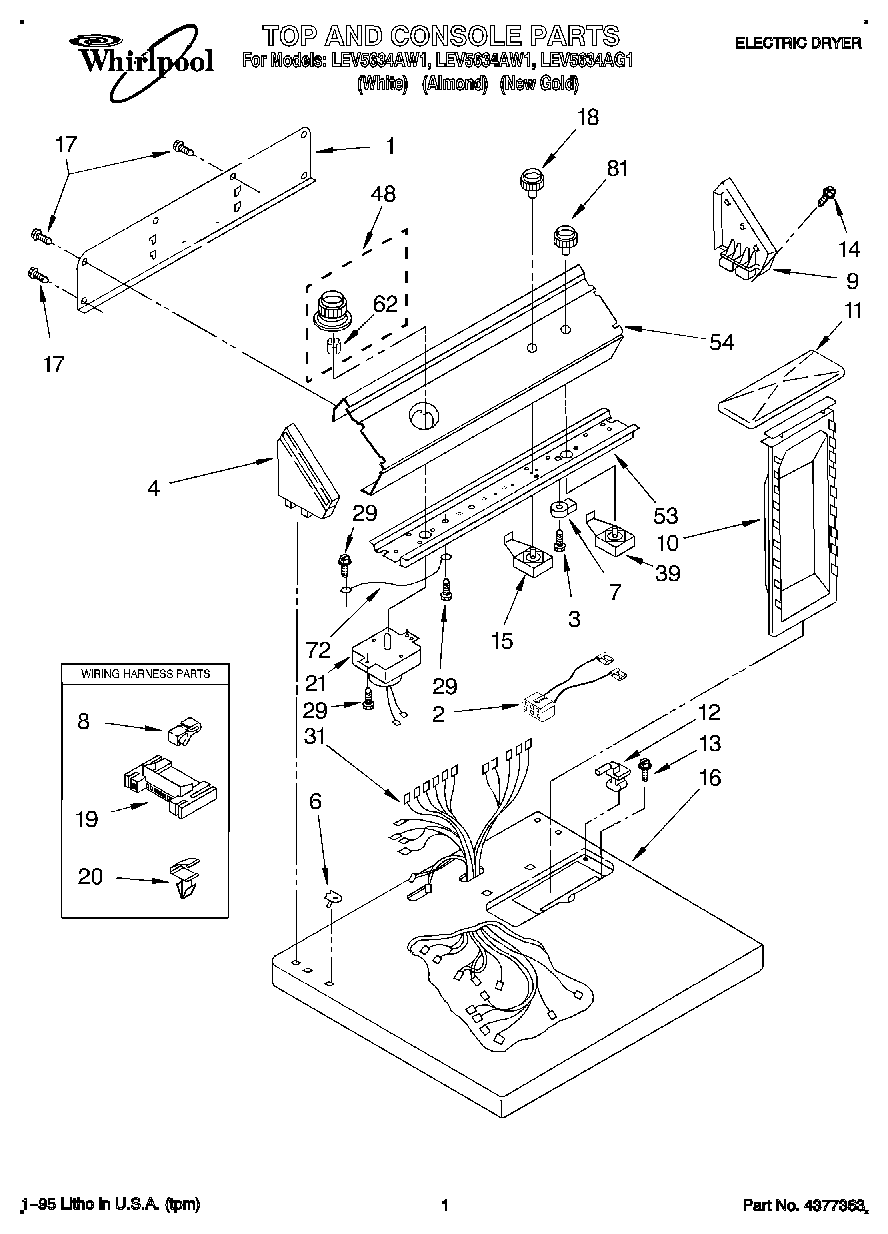

LEV5634AN1 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Instructions, Installation
	Golden Harvest (Uncut)
	Golden Harvest
	Dryer
	Label, Wiring Diagram
	Guide, Use & Care
	Almond (Uncut)
	350956 Whirlpool Spray Assembly
	WP72107 Whirlpool Touchup
	350938 Whirlpool Spray Gun
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
1	Panel, Rear Console
2	8283286 Whirlpool Wire Harness
3	WP488729 Whirlpool Refrigerator Door Screw
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Black/Chrome)
6	WP357213 Whirlpool Hinge Stopper
7	279872 Whirlpool Resistor
8	Clip, Retainer
9	WPL 3358518
9	Cap, End (R.H.) (White)
9	Cap, End (R.H.) (Almond)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (Golden Harvest)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	Switch, Temperature
16	Top (Almond)
16	Top (New Gold)
16	Top (White)
17	WP693995 Whirlpool Screw
18	KNOB
19	3395683 Whirlpool Connector
20	WP3394427 Whirlpool Clip
21	WP3976568 Whirlpool Timer
29	WPW10139210 Whirlpool Screw
31	Harness, Wiring
39	WP3395382 Whirlpool Push To Start Switch
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (Almond)
54	Panel, Control (White)
54	Panel, Control (New Gold)
62	WP688805 Whirlpool Spring Clip
72	Wire, Ground
81	Knob, Push-To-Start
