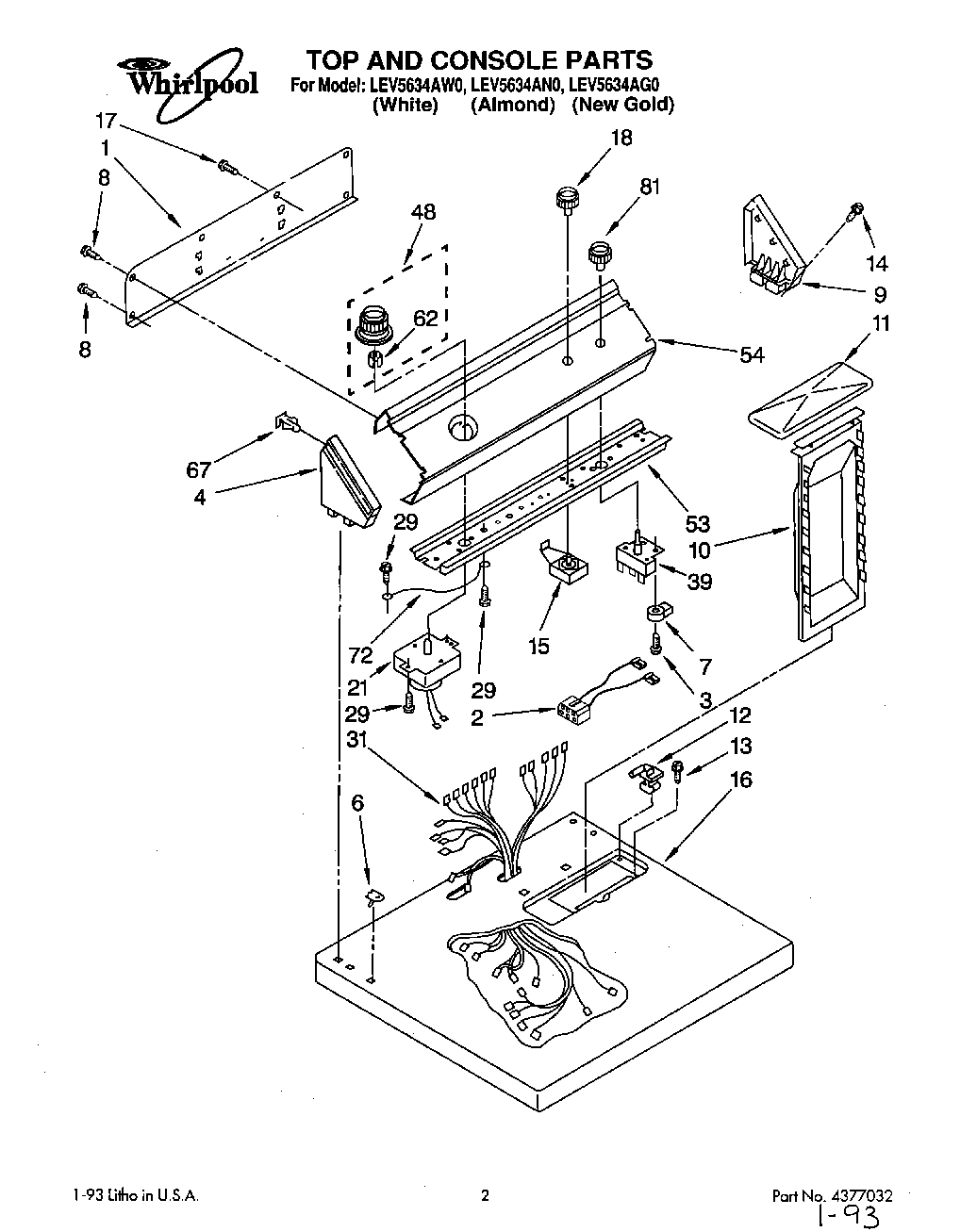

LEV5634AW0 01 – SECTION

Products

Position	Product
	Guide, Use & Care
	Instructions, Installation
	Golden Harvest
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	WPL LIT4377032
	Golden Harvest (Uncut)
	Dryer
	Almond (Uncut)
	Leveler (Thinner)
	72017 Whirlpool Appliance Touch-Up Paint White
	WP72107 Whirlpool Touchup
	350938 Whirlpool Spray Gun
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	799344 Whirlpool Refrigerator Paint
1	Panel, Rear Console
2	8283286 Whirlpool Wire Harness
3	WP488729 Whirlpool Refrigerator Door Screw
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Black/Chrome)
6	WP357213 Whirlpool Hinge Stopper
7	279872 Whirlpool Resistor
8	WP489069 Whirlpool Compactor Screw
9	Cap, End (R.H.) (Almond)
9	WPL 3358518
9	Cap, End (R.H.) (White)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (Almond)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	Switch, Temperature
16	Top (New Gold)
16	Top (White)
16	Top (Almond)
17	WP693995 Whirlpool Screw
18	KNOB
21	WP3976568 Whirlpool Timer
29	WPW10139210 Whirlpool Screw
31	Harness, Wiring
39	Switch, Push-To-Start
39	(Alt.)
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
54	Panel, Control (New Gold)
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
81	Knob, Push-To-Start
