LEV7646AN0 01 – SECTION

Products

PositionProduct
Guide, Use & Care
Instructions, Installation
List, Service Parts
Dryer
Almond (Uncut)
Leveler (Thinner)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
350938 Whirlpool Spray Gun
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White

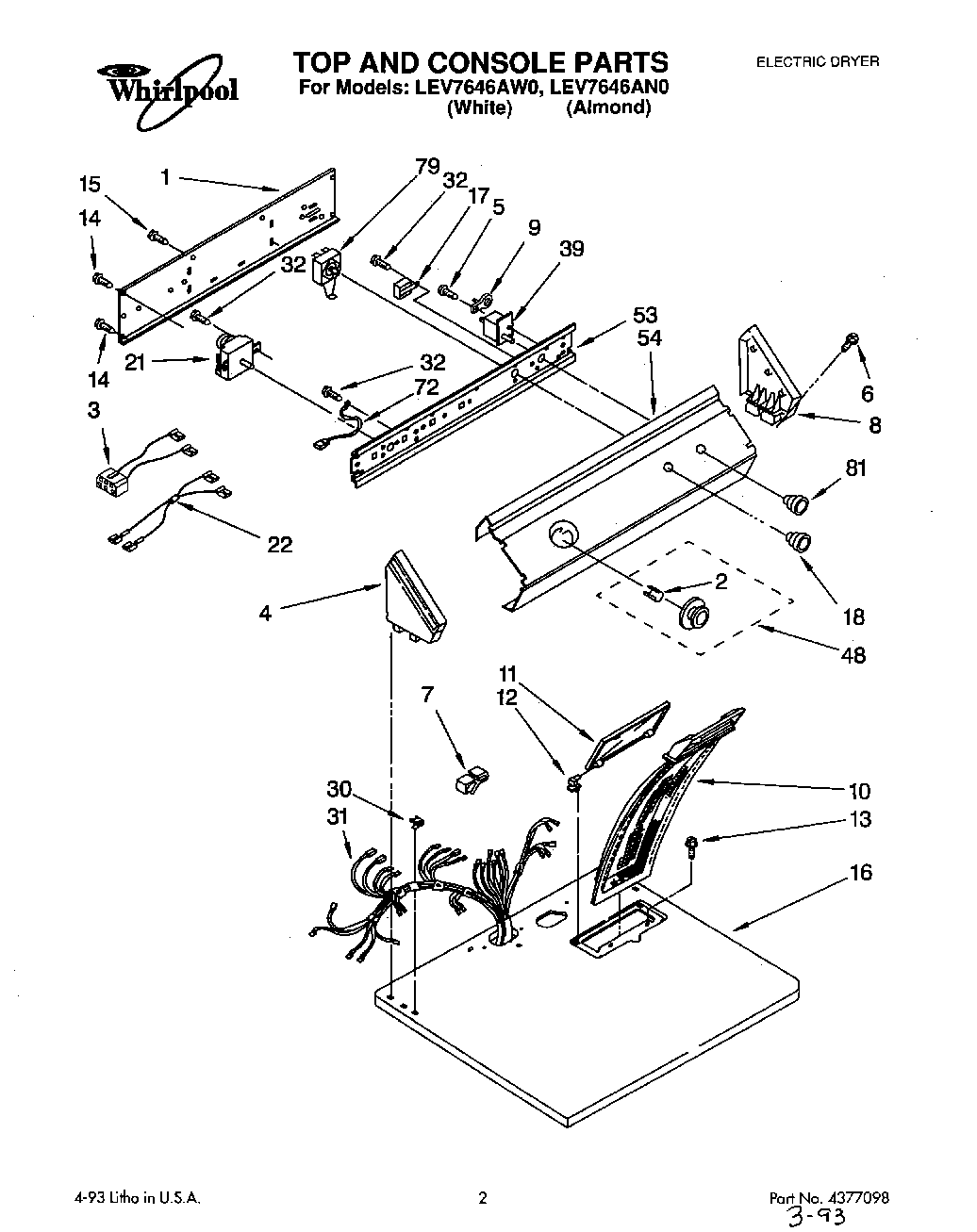

1Panel, Rear Console
2WP688805 Whirlpool Spring Clip
38539893 Whirlpool Wire Harness
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Almond)
5WP488729 Whirlpool Refrigerator Door Screw
6WP388326 Whirlpool Screw
7Clip, Retainer
8Cap, End (R.H.) (Almond)
8Cap, End (R.H.) (White)
9279872 Whirlpool Resistor
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP489069 Whirlpool Compactor Screw
15WP693995 Whirlpool Screw
16Top (Almond)
16Top (White)
17WP694419 Whirlpool Buzzer Adjuster
18KNOB
21WP3396047 Whirlpool Timer
22Wire Jumper Assembly
30WP357213 Whirlpool Hinge Stopper
31279320 Whirlpool Dryer Rear Terminal Block Kit
31Harness, Wiring
32WPW10139210 Whirlpool Screw
39Relay, Push-To-Start
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Almond)
72Wire, Ground
79WP3399639 Whirlpool Switch
81Knob, Push-To-Start
