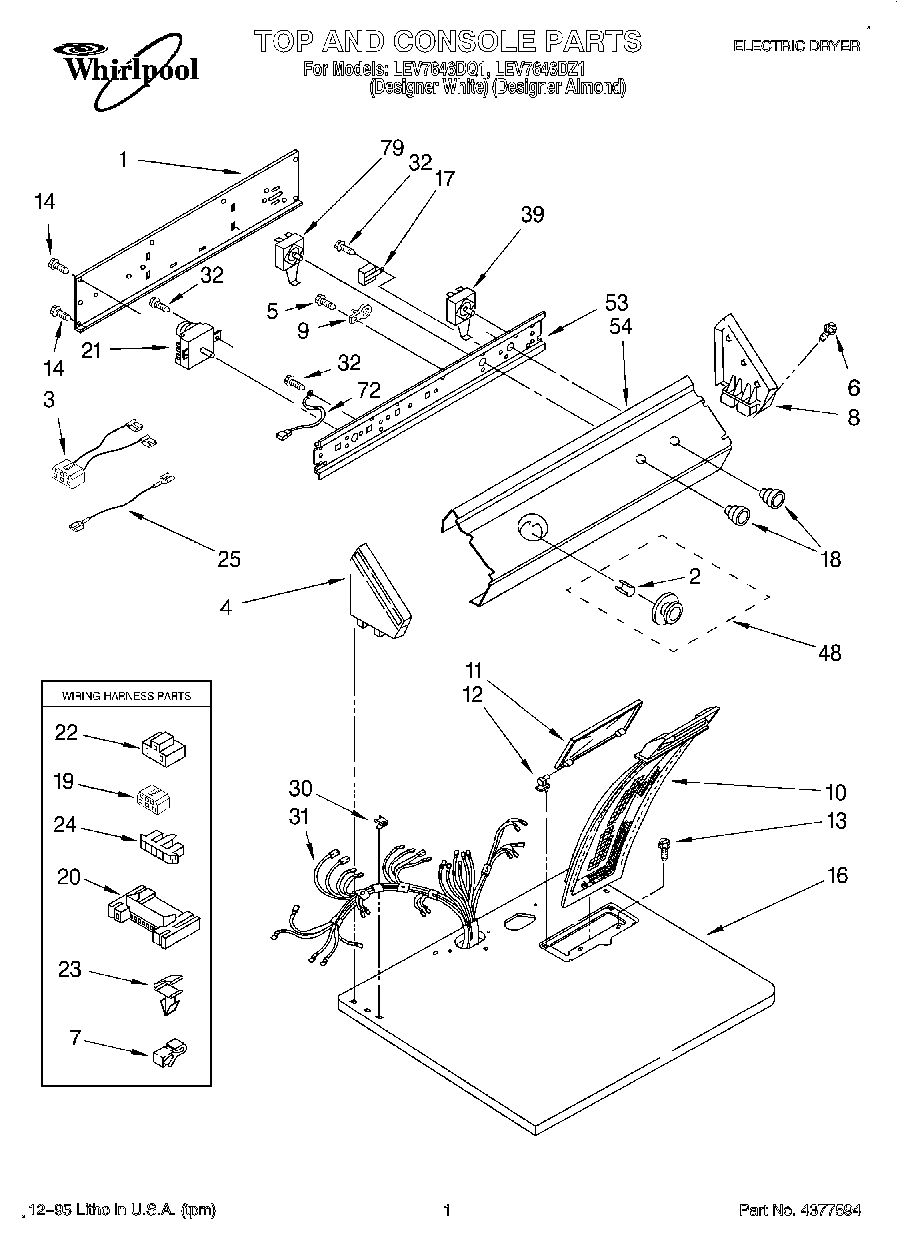

LEV7646DQ1 01 – SECTION
Written by
in
LEV7646DQ1 01 – SECTION
Products
Position
Product
350930 Whirlpool White Spray Paint
Guide, Use & Care
Dryer
Label, Wiring Diagram
Almond (Uncut)
Instructions, Installation
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
1
Panel, Rear Console
2
WP688805 Whirlpool Spring Clip
3
8539893 Whirlpool Wire Harness
4
Cap, End (L.H.) (White)
4
Cap, End (L.H.) (Almond)
5
WP488729 Whirlpool Refrigerator Door Screw
6
WP388326 Whirlpool Screw
7
Clip, Retainer
8
Cap, End (R.H.) (Almond)
8
Cap, End (R.H.) (White)
9
279872 Whirlpool Resistor
10
WP349639 Whirlpool Lint Filter
11
Cover, Lint Screen (White)
11
Cover, Lint Screen (Almond)
12
WPW10044480 Whirlpool Hinge Assembly
12
WPW10044470 Whirlpool Hinge Assembly
13
W11693756 Whirlpool Screw Assembly
14
WP693995 Whirlpool Screw
16
Top (Almond)
16
Top (White)
17
WP694419 Whirlpool Buzzer Adjuster
18
3957797 Whirlpool Knob
18
WP3957796 Whirlpool Knob
19
Block, Disconnect
20
3395683 Whirlpool Connector
21
WP3976574 Whirlpool Timer
22
3401144 Whirlpool Connector
23
WP3394427 Whirlpool Clip
24
Connector, Timer
25
Wire, Jumper (Black)
30
WP357213 Whirlpool Hinge Stopper
31
279320 Whirlpool Dryer Rear Terminal Block Kit
31
Harness, Wiring Includes
32
WPW10139210 Whirlpool Screw
39
WP3398095 Whirlpool Dryer Start Relay
48
WP3957752 Whirlpool Knob
48
3957753 Whirlpool Knob
53
Bracket, Control
54
WPL 3399034
54
WPL 3399033
72
Wire, Ground
79
WP3399639 Whirlpool Switch
←
